安裝部署Scrapy
在安裝Scrapy前首先需要確定的是已經安裝好了Python(目前Scrapy支持Python2.5,Python2.6和Python2.7)。官方文檔中介紹了三種方法進行安裝,我采用的是使用 easy_install 進行安裝,首先是下載Windows版本的setuptools(下載地址:http://pypi.python.org/pypi/setuptools),下載完后一路NEXT就可以了。
安裝完setuptool以后。執行CMD,然后運行一下命令:
1
|
easy_install -U Scrapy |
同樣的你可以選擇使用pip安裝,pip的地址:http://pypi.python.org/pypi/pip
使用pip安裝Scrapy的命令為
1
|
pip install Scrapy |
如果你的電腦先前裝過visual studio 2008 或 visual studio 2010那么一起順利,Scrapy已經安裝完成。如果出現下列報錯:Unable to find vcvarsall.bat 那么你需要折騰下。你可以安裝visual studio 后進行安裝或采用下面的方式進行解決:
首先安裝MinGW(MinGW下載地址:http://sourceforge.net/projects/mingw/files/),在MinGW的安裝目錄下找到bin的文件夾,找到mingw32-make.exe,復制一份更名為make.exe;
把MinGW的路徑添加到環境變量path中,比如我把MinGW安裝到D:\MinGW\中,就把D:\MinGW\bin添加到path中;
打開命令行窗口,在命令行窗口中進入到要安裝代碼的目錄下;
輸入如下命令 setup.py install build –compiler=mingw32 就可以安裝了。
如果出現“xslt-config' 不是內部或外部命令,也不是可運行的程序或批處理文件。”錯誤,原因主要是lxml安裝不成功,只要上http://pypi.python.org/simple/lxml/下載個exe文件進行安裝就可以了。
下面就可以進入正題了。
新建工程
讓我們來用爬蟲獲取豆瓣電影Top 250的電影信息吧。開始之前,我們新建一個Scrapy工程。因?yàn)槲矣玫腤in7,所以在CMD中進入一個我希望保存代碼的目錄,然后執行:
1
|
D:\WEB\Python>scrapy startproject doubanmoive |
這個命令會在當前目錄下創建一個新的目錄doubanmoive,目錄結構如下:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
D:\WEB\Python\doubanmoive>tree /f Folder PATH listing for volume Data Volume serial number is 00000200 34EC:9CB9 D:. │ scrapy.cfg │ └─doubanmoive │ items.py │ pipelines.py │ settings.py │ __init__.py │ └─spiders __init__.py |
這些文件主要為:
- doubanmoive/items.py: 定義需要獲取的內容字段,類似于實體類。
- doubanmoive/pipelines.py: 項目管道文件,用來處理Spider抓取的數據。
- doubanmoive/settings.py: 項目配置文件
- doubanmoive/spiders: 放置spider的目錄
定義項目(Item)
Item是用來裝載抓取數據的容器,和Java里的實體類(Entity)比較像,打開doubanmoive/items.py可以看到默認創建了以下代碼。
1
2
3
4
|
from scrapy.item import Item, Field class DoubanmoiveItem(Item): pass |
我們只需要在 Doubanmoive 類中增加需要抓取的字段即可,如 name=Field() ,最后根據我們的需求完成代碼如下。
1
2
3
4
5
6
7
8
9
|
from scrapy.item import Item, Field class DoubanmoiveItem(Item): name = Field() #電影名 year = Field() #上映年份 score = Field() #豆瓣分?jǐn)?shù) director = Field() #導演 classification = Field() #分類 actor = Field() #演員 |
編寫爬蟲(Spider)
Spider是整個項目中最核心的類,在這個類里我們會定義抓取對象(域名、URL)以及抓取規則。Scrapy官方文檔中的教程是基于 BaseSpider 的,但 BaseSpider 只能爬取給定的URL列表,無法根據一個初始的URL向外拓展。不過除了 BaseSpider ,還有很多可以直接繼承 Spider 的類,比如 scrapy.contrib.spiders.CrawlSpider 。
在 doubanmoive/spiders 目錄下新建moive_spider.py文件,并填寫代碼。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
# -*- coding: utf-8 -*- from scrapy.selector import Selector from scrapy.contrib.spiders import CrawlSpider,Rule from scrapy.contrib.linkextractors.sgml import SgmlLinkExtractor from doubanmoive.items import DoubanmoiveItem class MoiveSpider(CrawlSpider): name = "doubanmoive" allowed_domains = [ "movie.douban.com" ] start_urls = [ "http://movie.douban.com/top250" ] rules = [ Rule(SgmlLinkExtractor(allow = (r 'http://movie.douban.com/top250\?start=\d+.*' ))), Rule(SgmlLinkExtractor(allow = (r 'http://movie.douban.com/subject/\d+' )),callback = "parse_item" ), ] def parse_item( self ,response): sel = Selector(response) item = DoubanmoiveItem() item[ 'name' ] = sel.xpath( '//*[@id="content"]/h1/span[1]/text()' ).extract() item[ 'year' ] = sel.xpath( '//*[@id="content"]/h1/span[2]/text()' ).re(r '\((\d+)\)' ) item[ 'score' ] = sel.xpath( '//*[@id="interest_sectl"]/div/p[1]/strong/text()' ).extract() item[ 'director' ] = sel.xpath( '//*[@id="info"]/span[1]/a/text()' ).extract() item[ 'classification' ] = sel.xpath( '//span[@property="v:genre"]/text()' ).extract() item[ 'actor' ] = sel.xpath( '//*[@id="info"]/span[3]/a[1]/text()' ).extract() return item |
代碼說明: MoiveSpider 繼承Scrapy中的 CrawlSpider , name , allow_domains , start_url 看名字就知道什么含義,其中rules稍微復雜一些,定義了URL的抓取規則,符合 allow 正則表達式的鏈接都會加入到Scheduler(調度程序)。通過分析豆瓣電影Top250的分頁URL http://movie.douban.com/top250?start=25&filter=&type= 可以得到以下規則
Rule(SgmlLinkExtractor(allow=(r'http://movie.douban.com/top250\?start=\d+.*'))),
而我們真正要抓取的頁面是每一個電影的詳細介紹,如肖申克的救贖的鏈接為 http://movie.douban.com/subject/1292052/ ,那只有 subject 后面的數字是變化的,根據正則表達式得到如下代碼。我們需要抓取這種類型鏈接中的內容,于是加入callback屬性,將Response交給parse_item函數來處理。
Rule(SgmlLinkExtractor(allow=(r'http://movie.douban.com/subject/\d+')),callback="parse_item"),
在 parse_item 函數中的處理邏輯非常簡單,獲取符合條件鏈接的代碼,然后根據一定的規則抓取內容賦給item并返回 Item Pipeline 。獲取大部分標簽的內容不需要編寫復雜的正則表達式,我們可以使用 XPath 。 XPath 是一門在 XML 文檔中查找信息的語言,但它也可以用在HTML中。下表列出了常用表達式。
表達式 | 描述 |
---|---|
nodename | 選取此節點的所有子節點。 |
/ | 從根節點選取。 |
// | 從匹配選擇的當前節點選擇文檔中的節點,而不考慮它們的位置。 |
. | 選取當前節點。 |
.. | 選取當前節點的父節點。 |
@ | 選取屬性。 |

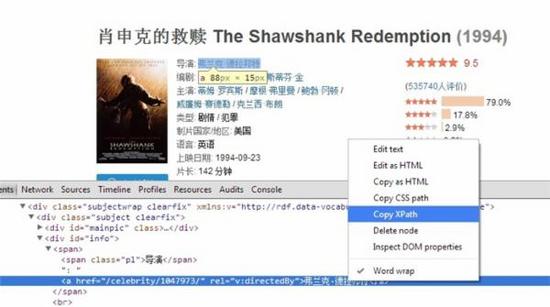

如 //*[@id="content"]/h1/span[1]/text() 獲取的結果是在id為content的任意元素下h1元素下的span列表中第一個元素的文本內容。我們可以通過Chrome開發者工具(F12)來獲取某內容的XPath表達式,具體操作為在需要抓取的內容上點擊審查元素,下方就會出現開發者工具,并定位到該元素,在內容上點擊右鍵,選擇復制XPath。
存儲數據
爬蟲獲取到數據以后我們需要將其存儲到數據庫中,之前我們提到該操作需要靠項目管道(pipeline)來處理,其通常執行的操作為:
- 清洗HTML數據
- 驗證解析到的數據(檢查項目是否包含必要的字段)
- 檢查是否是重復數據(如果重復就刪除)
- 將解析到的數據存儲到數據庫中
由于我們獲取的數據格式多種多樣,有一些存儲在關系型數據庫中并不方便,所以我在寫完MySQL版本的Pipeline之后又寫了一個MongoDB的。
MySQL版本:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
|
# -*- coding: utf-8 -*- from scrapy import log from twisted.enterprise import adbapi from scrapy.http import Request import MySQLdb import MySQLdb.cursors class DoubanmoivePipeline( object ): def __init__( self ): self .dbpool = adbapi.ConnectionPool( 'MySQLdb' , db = 'python' , user = 'root' , passwd = 'root' , cursorclass = MySQLdb.cursors.DictCursor, charset = 'utf8' , use_unicode = False ) def process_item( self , item, spider): query = self .dbpool.runInteraction( self ._conditional_insert, item) query.addErrback( self .handle_error) return item def _conditional_insert( self ,tx,item): tx.execute( "select * from doubanmoive where m_name= %s" ,(item[ 'name' ][ 0 ],)) result = tx.fetchone() log.msg(result,level = log.DEBUG) print result if result: log.msg( "Item already stored in db:%s" % item,level = log.DEBUG) else : classification = actor = '' lenClassification = len (item[ 'classification' ]) lenActor = len (item[ 'actor' ]) for n in xrange (lenClassification): classification + = item[ 'classification' ][n] if n<lenClassification - 1 : classification + = '/' for n in xrange (lenActor): actor + = item[ 'actor' ][n] if n<lenActor - 1 : actor + = '/' tx.execute(\ "insert into doubanmoive (m_name,m_year,m_score,m_director,m_classification,m_actor) values (%s,%s,%s,%s,%s,%s)" ,\ (item[ 'name' ][ 0 ],item[ 'year' ][ 0 ],item[ 'score' ][ 0 ],item[ 'director' ][ 0 ],classification,actor)) log.msg( "Item stored in db: %s" % item, level = log.DEBUG) def handle_error( self , e): log.err(e) |
MongoDB版本:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
# -*- coding: utf-8 -*- import pymongo from scrapy.exceptions import DropItem from scrapy.conf import settings from scrapy import log class MongoDBPipeline( object ): #Connect to the MongoDB database def __init__( self ): connection = pymongo.Connection(settings[ 'MONGODB_SERVER' ], settings[ 'MONGODB_PORT' ]) db = connection[settings[ 'MONGODB_DB' ]] self .collection = db[settings[ 'MONGODB_COLLECTION' ]] def process_item( self , item, spider): #Remove invalid data valid = True for data in item: if not data: valid = False raise DropItem( "Missing %s of blogpost from %s" % (data, item[ 'url' ])) if valid: #Insert data into database new_moive = [{ "name" :item[ 'name' ][ 0 ], "year" :item[ 'year' ][ 0 ], "score" :item[ 'score' ][ 0 ], "director" :item[ 'director' ], "classification" :item[ 'classification' ], "actor" :item[ 'actor' ] }] self .collection.insert(new_moive) log.msg( "Item wrote to MongoDB database %s/%s" % (settings[ 'MONGODB_DB' ], settings[ 'MONGODB_COLLECTION' ]), level = log.DEBUG, spider = spider) return item |
可以看到其基本的處理流程是一樣,但是MySQL不太方便的一點就是需要將數組類型的數據通過分隔符轉換。而MongoDB支持存入List、Dict等多種類型的數據。
配置文件
在運行爬蟲之前還需要將在 settings.py 中增加一些配置信息。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
BOT_NAME = 'doubanmoive' SPIDER_MODULES = [ 'doubanmoive.spiders' ] NEWSPIDER_MODULE = 'doubanmoive.spiders' ITEM_PIPELINES = { 'doubanmoive.mongo_pipelines.MongoDBPipeline' : 300 , 'doubanmoive.pipelines.DoubanmoivePipeline' : 400 , } LOG_LEVEL = 'DEBUG' DOWNLOAD_DELAY = 2 RANDOMIZE_DOWNLOAD_DELAY = True USER_AGENT = 'Mozilla/5.0 (Macintosh; Intel Mac OS X 10_8_3) AppleWebKit/536.5 (KHTML, like Gecko) Chrome/19.0.1084.54 Safari/536.5' COOKIES_ENABLED = True MONGODB_SERVER = 'localhost' MONGODB_PORT = 27017 MONGODB_DB = 'python' MONGODB_COLLECTION = 'test' |
ITEM_PIPELINES 中定義了MySQL和MongoDB兩個Pipeline文件,后面的數字代表執行的優先級順序,范圍為0~1000。 而中間的 DOWNLOAD_DELAY 等信息是為了防止爬蟲被豆瓣Ban掉,增加了一些隨機延遲,瀏覽器代理等。最后的就是MongoDB的配置信息,MySQL也可以參考這種方式來寫。
至此為止,抓取豆瓣電影的爬蟲就已經完成了。在命令行中執行 Scrapy crawl doubanmoive 讓蜘蛛開始爬行吧!
