摘要
2021年了，還有不支持彈幕的視頻網站嗎，現在各種彈幕玩法層出不窮，抽獎，ppt都上彈幕玩法了，不整個彈幕都說不過去了，今天筆者就抽空做了一個實時視頻彈幕交互功能的實現，不得不說這樣的形式為看視頻看直播，講義PPT，抽獎等形式增加了許多樂趣。
1 技術選型
1.1 netty
官方對于netty的描述：netty官網.
Netty is an asynchronous event-driven network application framework
for rapid development of maintainable high performance protocol servers & clients.
Netty is a NIO client server framework which enables quick and easy development of network applications such as protocol servers and clients. It greatly simplifies and streamlines network programming such as TCP and UDP socket server.
‘Quick and easy" doesn"t mean that a resulting application will suffer from a maintainability or a performance issue. Netty has been designed carefully with the experiences earned from the implementation of a lot of protocols such as FTP, SMTP, HTTP, and various binary and text-based legacy protocols. As a result, Netty has succeeded to find a way to achieve ease of development, performance, stability, and flexibility without a compromise.1
主要關鍵詞描述：netty是異步事件驅動網絡框架，可做各種協議服務端，并且支持了FTP，SMTP，HTTP等很多協議，并且性能，穩定性，靈活性都很棒。
可以看到netty整體架構上分了三個部分：
a. 以零拷貝，一致性接口，擴展事件模型的底層核心。
b. Socket，Datagram，Pipe，Http Tunnel作為傳輸媒介。
c. 傳輸支持的各種協議，HTTP&WebSocket，SSL，大文件，zlib/gzip壓縮，文本，二進制，Google Protobuf等各種各種的傳輸形式。
1.2 WebSocket
WebSocket是一種在單個TCP連接上進行全雙工通信的協議。WebSocket通信協議于2011年被IETF定為標準RFC 6455，并由RFC7936補充規范。WebSocket API也被W3C定為標準。
WebSocket使得客戶端和服務器之間的數據交換變得更加簡單，允許服務端主動向客戶端推送數據。在WebSocket API中，瀏覽器和服務器只需要完成一次握手，兩者之間就直接可以創建持久性的連接，并進行雙向數據傳輸。2
1.3 為什么做這樣的技術選型。
a. 由上述可知，實時直播交互作為互動式是一個雙向數據傳輸過程。所以使用webSocket。
b. netty本身支持了webSocket協議的實現，讓實現更加簡單方便。
2 實現思路

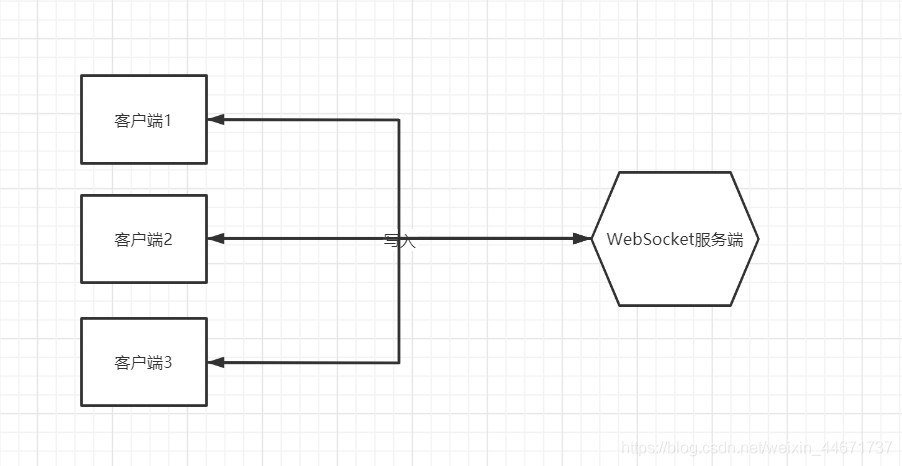

2.1 服務架構
整體架構是所有客戶端都和我的服務端開啟一個雙向通道的架構。
2.2 傳輸流程
3 實現效果
3.1 視頻展示
先看看效果吧，是不是perfect，接下來就來看具體代碼是怎么實現的吧。
視頻直播彈幕示例
4 代碼實現

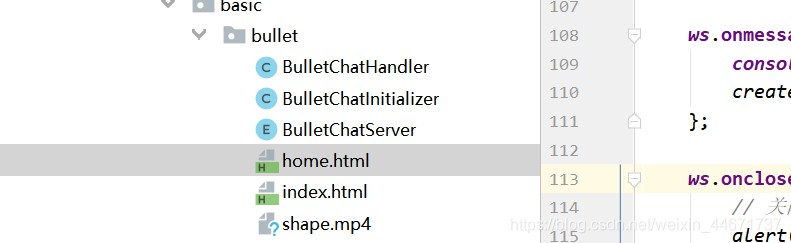

4.1 項目結構
一個maven項目，將代碼放一個包下就行。
4.2 Java服務端
Java服務端代碼，總共三個類，Server，Initailizer和 Handler。
4.2.1 先做一個netty nio的服務端：
一個nio的服務，開啟一個tcp端口。
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioServerSocketChannel;
/**
* Copyright(c)lbhbinhao@163.com
* @author liubinhao
* @date 2021/1/14
* ++++ ______ ______ ______
* +++/ /| / /| / /|
* +/_____/ | /_____/ | /_____/ |
* | | | | | | | | |
* | | | | | |________| | |
* | | | | | / | | |
* | | | | |/___________| | |
* | | |___________________ | |____________| | |
* | | / / | | | | | | |
* | |/ _________________/ / | | / | | /
* |_________________________|/b |_____|/ |_____|/
*/
public enum BulletChatServer {
/**
* Server instance
*/
SERVER;
private BulletChatServer(){
EventLoopGroup mainGroup = new NioEventLoopGroup();
EventLoopGroup subGroup = new NioEventLoopGroup();
ServerBootstrap server = new ServerBootstrap();
server.group(mainGroup,subGroup)
.channel(NioServerSocketChannel.class)
.childHandler(new BulletChatInitializer());
ChannelFuture future = server.bind(9123);
}
public static void main(String[] args) {
}
}
4.2.2 服務端的具體處理邏輯
import io.netty.channel.ChannelInitializer; import io.netty.channel.ChannelPipeline; import io.netty.channel.socket.SocketChannel; import io.netty.handler.codec.http.HttpObjectAggregator; import io.netty.handler.codec.http.HttpServerCodec; import io.netty.handler.codec.http.websocketx.WebSocketServerProtocolHandler; import io.netty.handler.stream.ChunkedWriteHandler; import io.netty.handler.timeout.IdleStateHandler; /** * Copyright(c)lbhbinhao@163.com * * @author liubinhao * @date 2021/1/14 * ++++ ______ ______ ______ * +++/ /| / /| / /| * +/_____/ | /_____/ | /_____/ | * | | | | | | | | | * | | | | | |________| | | * | | | | | / | | | * | | | | |/___________| | | * | | |___________________ | |____________| | | * | | / / | | | | | | | * | |/ _________________/ / | | / | | / * |_________________________|/b |_____|/ |_____|/ */ public class BulletChatInitializer extends ChannelInitializer<SocketChannel> { @Override protected void initChannel(SocketChannel ch) throws Exception { ChannelPipeline pipeline = ch.pipeline(); pipeline.addLast(new HttpServerCodec()); pipeline.addLast(new ChunkedWriteHandler()); pipeline.addLast(new HttpObjectAggregator(1024*64)); pipeline.addLast(new IdleStateHandler(8, 10, 12)); pipeline.addLast(new WebSocketServerProtocolHandler("/lbh")); pipeline.addLast(new BulletChatHandler()); } } [^
后臺處理邏輯，接受到消息，寫出到所有的客戶端：
import io.netty.channel.Channel;
import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.channel.group.ChannelGroup;
import io.netty.channel.group.DefaultChannelGroup;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;
import io.netty.util.concurrent.EventExecutorGroup;
import io.netty.util.concurrent.GlobalEventExecutor;
/**
* Copyright(c)lbhbinhao@163.com
*
* @author liubinhao
* @date 2021/1/14
* ++++ ______ ______ ______
* +++/ /| / /| / /|
* +/_____/ | /_____/ | /_____/ |
* | | | | | | | | |
* | | | | | |________| | |
* | | | | | / | | |
* | | | | |/___________| | |
* | | |___________________ | |____________| | |
* | | / / | | | | | | |
* | |/ _________________/ / | | / | | /
* |_________________________|/b |_____|/ |_____|/
*/
public class BulletChatHandler extends SimpleChannelInboundHandler<TextWebSocketFrame> {
// 用于記錄和管理所有客戶端的channel
public static ChannelGroup channels =
new DefaultChannelGroup(GlobalEventExecutor.INSTANCE);
@Override
protected void channelRead0(ChannelHandlerContext ctx, TextWebSocketFrame msg) throws Exception {
// 獲取客戶端傳輸過來的消息
String content = msg.text();
System.err.println("收到消息："+ content);
channels.writeAndFlush(new TextWebSocketFrame(content));
System.err.println("寫出消息完成："+content);
}
@Override
public void handlerAdded(ChannelHandlerContext ctx) throws Exception {
channels.add(ctx.channel());
}
@Override
public void handlerRemoved(ChannelHandlerContext ctx) throws Exception {
String channelId = ctx.channel().id().asShortText();
System.out.println("客戶端被移除，channelId為：" + channelId);
channels.remove(ctx.channel());
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
cause.printStackTrace();
// 發生異常之后關閉連接（關閉channel），隨后從ChannelGroup中移除
ctx.channel().close();
channels.remove(ctx.channel());
}
}
4.3 網頁客戶端實現
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<title>Netty視頻彈幕實現 Author:Binhao Liu</title>
<link rel="stylesheet" href="">
<style type="text/css" media="screen">
* {
margin: 0px;
padding: 0px
}
html, body {
height: 100%
}
body {
overflow: hidden;
background-color: #FFF;
text-align: center;
}
.flex-column {
display: flex;
flex-direction: column;
justify-content: space-between;, align-items: center;
}
.flex-row {
display: flex;
flex-direction: row;
justify-content: center;
align-items: center;
}
.wrap {
overflow: hidden;
width: 70%;
height: 600px;
margin: 100px auto;
padding: 20px;
background-color: transparent;
box-shadow: 0 0 9px #222;
border-radius: 20px;
}
.wrap .box {
position: relative;
width: 100%;
height: 90%;
background-color: #000000;
border-radius: 10px
}
.wrap .box span {
position: absolute;
top: 10px;
left: 20px;
display: block;
padding: 10px;
color: #336688
}
.wrap .send {
display: flex;
width: 100%;
height: 10%;
background-color: #000000;
border-radius: 8px
}
.wrap .send input {
width: 40%;
height: 60%;
border: 0;
outline: 0;
border-radius: 5px 0px 0px 5px;
box-shadow: 0px 0px 5px #d9d9d9;
text-indent: 1em
}
.wrap .send .send-btn {
width: 100px;
height: 60%;
background-color: #fe943b;
color: #FFF;
text-align: center;
border-radius: 0px 5px 5px 0px;
line-height: 30px;
cursor: pointer;
}
.wrap .send .send-btn:hover {
background-color: #4cacdc
}
</style>
</head>
<script>
var ws = new WebSocket("ws://localhost:9123/lbh");
ws.onopen = function () {
// Web Socket 已連接上，使用 send() 方法發送數據
alert("數據發送中...");
};
ws.onmessage = function (e) {
console.log("接受到消息:"+e.data);
createEle(e.data);
};
ws.onclose = function () {
// 關閉 websocket
alert("連接已關閉...");
};
function sendMsg(msg) {
ws.send(msg)
}
</script>
<body>
<div class="wrap flex-column">
<div class="box">
<video src="shape.mp4" width="100%" height="100%" controls autoplay></video>
</div>
<div class="send flex-row">
<input type="text" class="con" placeholder="彈幕發送[]~(^v^)~*"/>
<div class="send-btn" onclick="javascript:sendMsg(document.querySelector(".con").value)">發送</div>
</div>
</div>
<script src="https://apps.bdimg.com/libs/jquery/2.1.4/jquery.min.js" type="text/javascript"></script>
<script>
//1.獲取元素
var oBox = document.querySelector(".box"); //獲取.box元素
var cW = oBox.offsetWidth; //獲取box的寬度
var cH = oBox.offsetHeight; //獲取box的高度
function createEle(txt) {
//動態生成span標簽
var oMessage = document.createElement("span"); //創建標簽
oMessage.innerHTML = txt; //接收參數txt并且生成替換內容
oMessage.style.left = cW + "px"; //初始化生成位置x
oBox.appendChild(oMessage); //把標簽塞到oBox里面
roll.call(oMessage, {
//call改變函數內部this的指向
timing: ["linear", "ease-out"][~~(Math.random() * 2)],
color: "#" + (~~(Math.random() * (1 << 24))).toString(16),
top: random(0, cH),
fontSize: random(16, 32)
});
}
function roll(opt) {
//彈幕滾動
//如果對象中不存在timing 初始化
opt.timing = opt.timing || "linear";
opt.color = opt.color || "#fff";
opt.top = opt.top || 0;
opt.fontSize = opt.fontSize || 16;
this._left = parseInt(this.offsetLeft); //獲取當前left的值
this.style.color = opt.color; //初始化顏色
this.style.top = opt.top + "px";
this.style.fontSize = opt.fontSize + "px";
this.timer = setInterval(function () {
if (this._left <= 100) {
clearInterval(this.timer); //終止定時器
this.parentNode.removeChild(this);
return; //終止函數
}
switch (opt.timing) {
case "linear": //如果勻速
this._left += -2;
break;
case "ease-out": //
this._left += (0 - this._left) * .01;
break;
}
this.style.left = this._left + "px";
}.bind(this), 1000 / 60);
}
function random(start, end) {
//隨機數封裝
return start + ~~(Math.random() * (end - start));
}
var aLi = document.querySelectorAll("li"); //10
function forEach(ele, cb) {
for (var i = 0, len = aLi.length; i < len; i++) {
cb && cb(ele[i], i);
}
}
forEach(aLi, function (ele, i) {
ele.style.left = i * 100 + "px";
});
//產生閉包
var obj = {
num: 1,
add: function () {
this.num++; //obj.num = 2;
(function () {
console.log(this.num);
})
}
};
obj.add();//window
</script>
</body>
</html>
這樣一個實時的視頻彈幕功能就完成啦，是不是很簡單，各位小伙伴快來試試吧。
5 小結
上班擼代碼，下班繼續擼代碼寫博客，這個還是很簡單，筆者寫這個的時候一會兒就寫完了，不過這也得益于筆者很久以前就寫過netty的服務，對于Http，Tcp之類協議也比較熟悉，只有前端會有些難度，問下度娘，也很快能做完，在此分享出來與諸君分享。
