首先來解釋一下SpringBoot首頁設置的三種方式
1.SpringBoot默認首頁設置
編寫一個最簡單的html文件 index.html
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> </head> <body> <h1>首頁</h1> </body> </html>

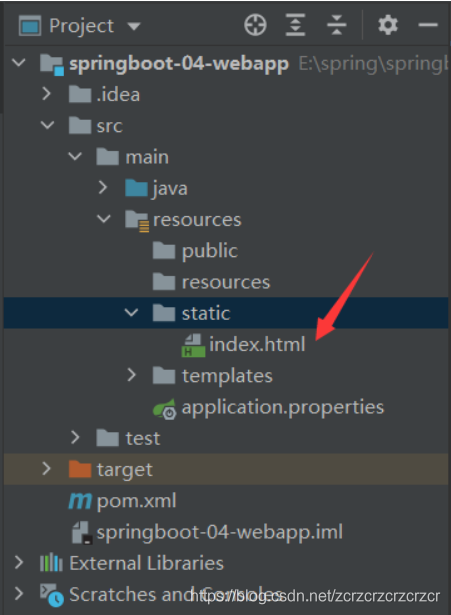

將index.html文件置于SpringBoot的任一靜態資源目錄下

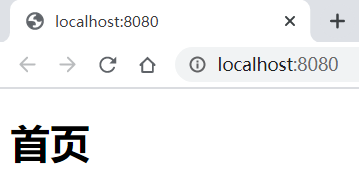

http://localhost:8080/訪問，成功顯示
源碼分析
首先找對應的自動配置類WebMvcAutoConfiguration中的對應代碼
@Bean
public WelcomePageHandlerMapping welcomePageHandlerMapping(ApplicationContext applicationContext, FormattingConversionService mvcConversionService, ResourceUrlProvider mvcResourceUrlProvider) {
WelcomePageHandlerMapping welcomePageHandlerMapping =
new WelcomePageHandlerMapping(new TemplateAvailabilityProviders(applicationContext),
applicationContext, this.getWelcomePage(), this.mvcProperties.getStaticPathPattern());
welcomePageHandlerMapping.setInterceptors(this.getInterceptors(mvcConversionService, mvcResourceUrlProvider));
welcomePageHandlerMapping.setCorsConfigurations(this.getCorsConfigurations());
return welcomePageHandlerMapping;
}
可以看到 SpringBoot注冊了WelcomePageHandlerMappingBean來處理項目的默認首頁,構造器中的this.getWelcomePage()為首頁資源。
private Resource getWelcomePage() {
String[] var1 = this.resourceProperties.getStaticLocations();
int var2 = var1.length;
for(int var3 = 0; var3 < var2; ++var3) {
String location = var1[var3];
Resource indexHtml = this.getIndexHtml(location);
if (indexHtml != null) {
return indexHtml;
}
}
ServletContext servletContext = this.getServletContext();
if (servletContext != null) {
return this.getIndexHtml((Resource)(new ServletContextResource(servletContext, "/")));
} else {
return null;
}
}
分析這段代碼，首先獲取了this.resourceProperties的StaticLocations字段，顧名思義就是靜態路徑，那就先跟蹤StaticLocations

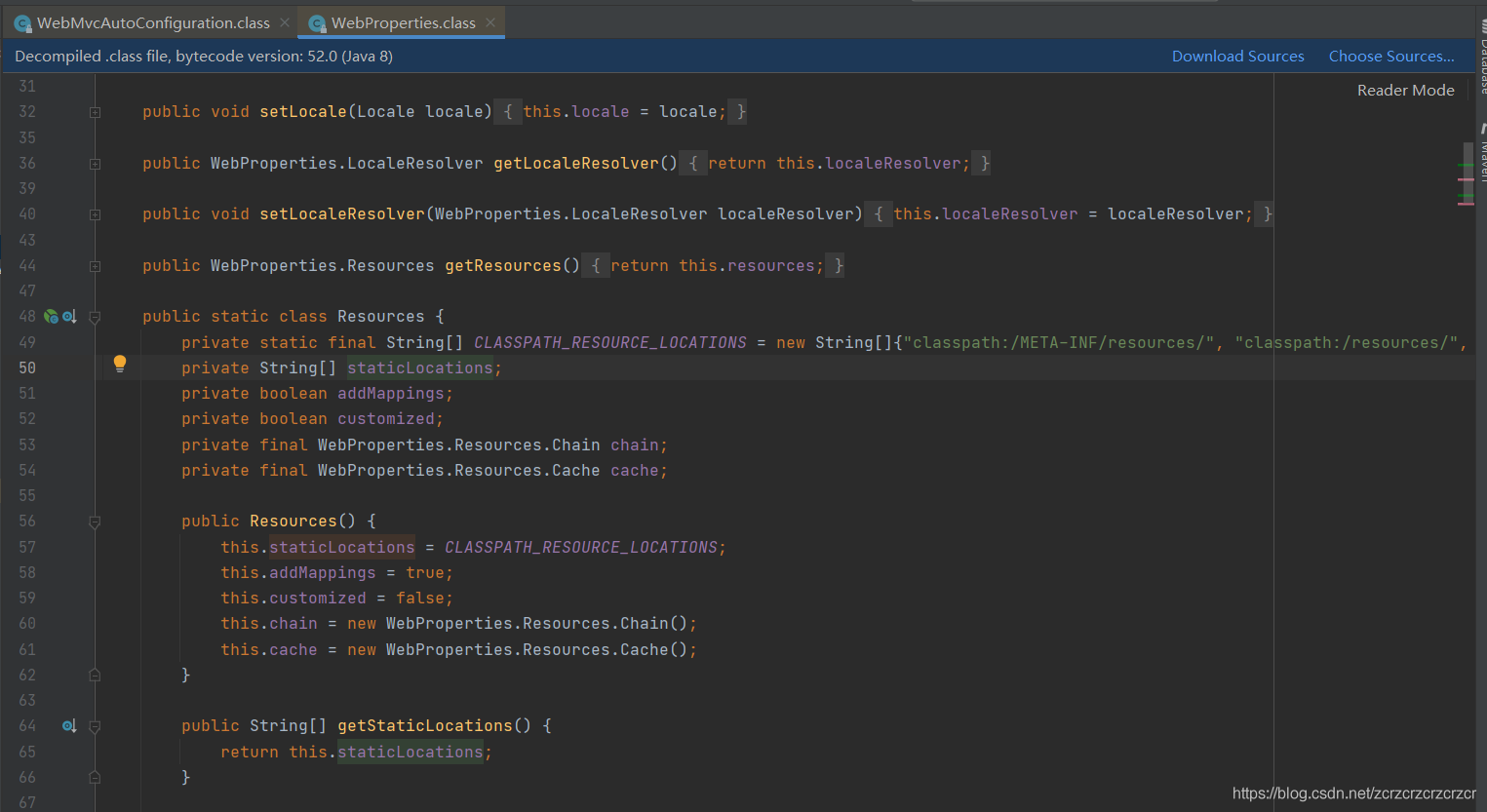

可以看出StaticLocations是WebPropertis中內部靜態類Resources的屬性，從構造器中可以看出它的值為
private static final String[] CLASSPATH_RESOURCE_LOCATIONS = new String[]{"classpath:/META-INF/resources/", "classpath:/resources/", "classpath:/static/", "classpath:/public/"};
顯而易見，這其實就是SpringBoot的靜態資源目錄
/META-INF
/resources/
/resources/
/static/
/public/
回到之前的代碼，獲取了StaticLocations后，通過循環遍歷，很明顯可以看到一個新的方法this.getIndexHtml(location)
private Resource getIndexHtml(String location) {
return this.getIndexHtml(this.resourceLoader.getResource(location));
}
使用this.resourceLoader返回一個與location對應的Resource執行另一個getIndexHtml()函數
private Resource getIndexHtml(Resource location) {
try {
Resource resource = location.createRelative("index.html");
if (resource.exists() && resource.getURL() != null) {
return resource;
}
} catch (Exception var3) {
}
return null;
}
很明顯，這個方法是獲取對應目錄下的index.html文件。再往回看
for(int var3 = 0; var3 < var2; ++var3) {
String location = var1[var3];
Resource indexHtml = this.getIndexHtml(location);
if (indexHtml != null) {
return indexHtml;
}
}
當找到對應文件的時候就返回對應的資源，這就是SpringBoot設置首頁的默認方式的原理。
從源碼中也可以看出另一個關于靜態資源目錄優先級的問題。getWelcomePage遍歷靜態資源目錄，一旦找到就返回，所以優先級和staticLocations中的順序相對，驗證一下。

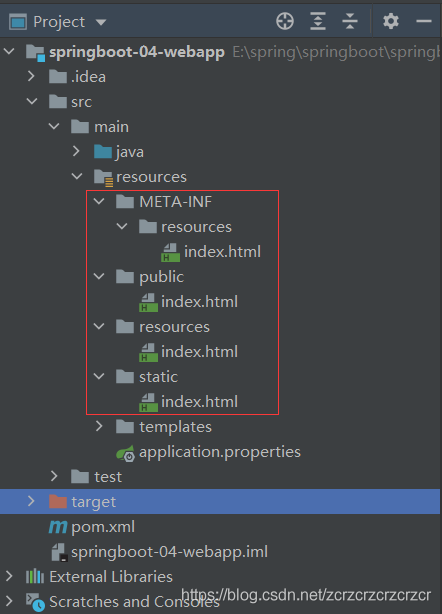

先在每一個目錄下建立對應的indx.html文件

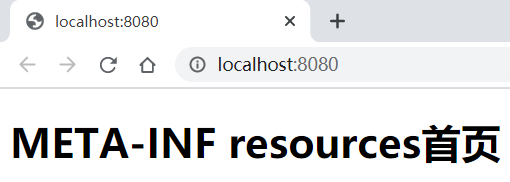

http://localhost:8080/訪問
和得出的結論一樣，優先級最高的是 /META-INF/resources/，把 /META-INF/resources/下的index.html文件刪除再次驗證
驗證成功！
2.controller里添加"/"的映射路徑
新建IndexController.java
package com.springboot04webapp.controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
@Controller
public class IndexController {
@RequestMapping("/")
public String index(){
return "indexController";
}
}
首頁資源indexController.html
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> </head> <body> <h1>indexController首頁</h1> </body> </html>

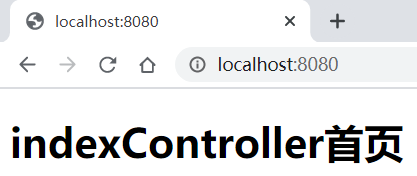

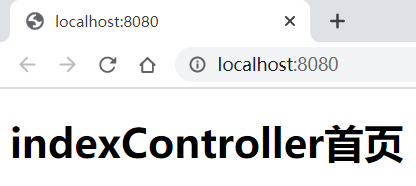

http://localhost:8080/訪問
3.MVC擴展配置實現
新建MyMvcConfiguration配置類，擴展MVC配置，重寫addViewControllers方法
package com.springboot04webapp.config;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
@Configuration
public class MyMvcConfiguration implements WebMvcConfigurer {
@Override
public void addViewControllers(ViewControllerRegistry registry) {
registry.addViewController("/").setViewName("indexMVC");
}
}
首頁資源indexMVC.html
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> </head> <body> <h1>indexMVC首頁</h1> </body> </html>

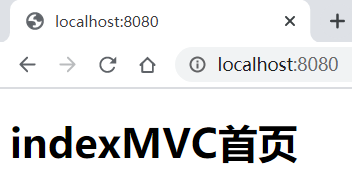

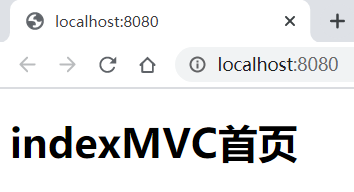

http://localhost:8080/訪問
擴展：優先級問題

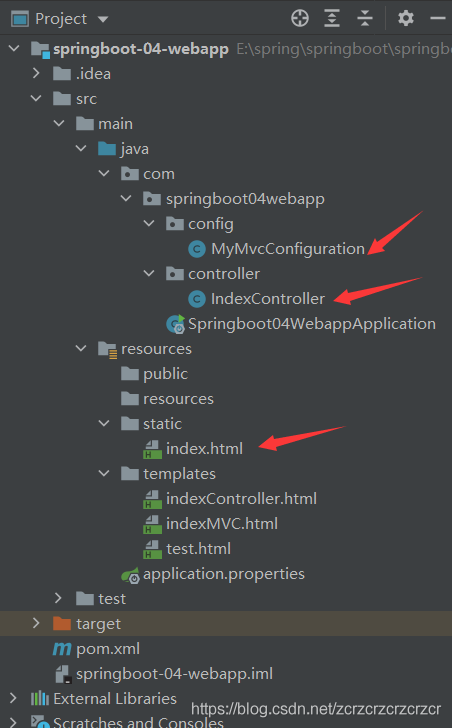

之前的三個方法都是單獨設置的，現在把他們結合起來
http://localhost:8080/訪問
優先級最高的是第二種方法，然后將indexController刪除，再次驗證
得出結論：Controller>MyMvcConfiguration>默認方法
