本文實例為大家分享了python地震數據可視化的具體代碼，供大家參考，具體內容如下
參考源碼：seisplot
準備工作：
在windows10下安裝python3.7，下載參考源碼到本地。
1. demo繪圖測試
demo繪圖指令
cmd> python seisplot.py --demo
問題1）缺少依賴包
|
1
2
3
4
5
6
7
|
file "d:/desktop/python可視化/seisplot/seisplot.py", line 16, in <module> import yamlmodulenotfounderror: no module named 'yaml' >pip3 install yaml could not find a version that satisfies the requirement yaml (from versions: )no matching distribution found for yaml |
查看environment.yml:
|
1
2
3
4
5
6
7
8
9
|
channels:- defaults- conda-forgedependencies:- matplotlib- numpy- obspy- pillow- pyyaml |
安裝相關依賴包，如 obspy pillow pyyaml
cmd> pip3 install obspy
出現proxy error， 添加選項 --proxy server:port
安裝ok
問題2）配置文件的編碼異常
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
d:\desktop\python可視化\seisplot>python seisplot.py --demo[91m welcome to ┌─┐┌─┐┬┌─┐┌─┐┬ ┌─┐┌┬┐ └─┐├┤ │└─┐├─┘│ │ │ │ └─┘└─┘┴└─┘┴ ┴─┘└─┘ ┴ good luck[0mtraceback (most recent call last): file "seisplot.py", line 421, in <module> cfg = yaml.load(f) file "d:\programfiles\python36\lib\site-packages\yaml\__init__.py", line 70, in load loader = loader(stream) file "d:\programfiles\python36\lib\site-packages\yaml\loader.py", line 34, in __init__ reader.__init__(self, stream) file "d:\programfiles\python36\lib\site-packages\yaml\reader.py", line 85, in __init__ self.determine_encoding() file "d:\programfiles\python36\lib\site-packages\yaml\reader.py", line 124, in determine_encoding self.update_raw() file "d:\programfiles\python36\lib\site-packages\yaml\reader.py", line 178, in update_raw data = self.stream.read(size)unicodedecodeerror: 'gbk' codec can't decode byte 0x99 in position 2003: illegal multibyte sequence |
分析源碼中參數傳遞情況：
|
1
2
3
4
5
6
7
8
9
10
11
|
def load(stream, loader=loader): """ parse the first yaml document in a stream and produce the corresponding python object. """ print(stream) ## debug by huanying03 loader = loader(stream) try: return loader.get_single_data() finally: loader.dispose() |
打印結果如下：
|
1
|
<_io.textiowrapper name='config.yml' mode='r' encoding='cp936'> |
編碼不對？
65001 ：utf-8代碼頁
936 ：默認的gbk
437 ：是美國英語
仔細檢查發現config.yml中有異常字符，更正config.yml中錯誤字符：ok
問題3）python調試打印語句
print ("value=%d"%value)

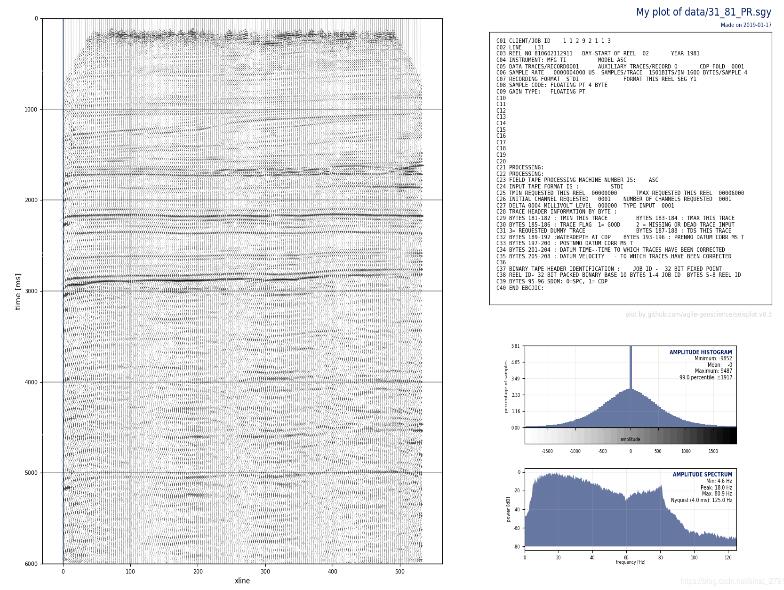

demo數據繪圖結果
如下：
2. 本地?cái)?shù)據繪圖測試
應用指令
cmd > python seisplot.py data/my.sgy
問題1）數據道的采樣值異常
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
|
filename data2/t10.sgyseismic.py:104:dt=4000seismic.py:104:ns=512seismic.py:144:header=b'c 1 client'n_traces 500n_samples 512dt 0.004t_start 0t_end 2.044max_val infmin_val -infclip_val 180462501764003194804057887685476352read data in 0.4 s ++++++++++++++++++++++++++++++++++++++++++++++++++++++++plottingplot width 17.00 inplot height 11.00 intraceback (most recent call last): file "seisplot.py", line 442, in <module> main(t, cfg) file "seisplot.py", line 214, in main cfg) file "d:\desktop\python可視化\seisplot\plotter.py", line 123, in plot_histogram y, x, _ = ax.hist(np.ravel(data), bins=int(100.0 / (clip_val / largest)),overflowerror: cannot convert float infinity to integer |
解決辦法：將數據做歸一化處理
問題2）數據文件的卷頭異常
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
filename data2/marmousi_vel.segy.hdrs.sgy.cdp.sgyseismic.py:104:dt=10000seismic.py:104:ns=350seismic.py:144:header=b'\xc3@\xf1@\xc3\xd3\xc9\xc5\xd5\xe3'traceback (most recent call last): file "seisplot.py", line 442, in <module> main(t, cfg) file "seisplot.py", line 40, in main s = seismic.from_segy(target, params={'ndim': cfg['ndim']}) file "d:\desktop\python可視化\seisplot\seismic.py", line 164, in from_segy return cls.from_obspy(stream, params=params) file "d:\desktop\python可視化\seisplot\seismic.py", line 147, in from_obspy x =np.array(list(stream.textual_file_header.decode()))unicodedecodeerror: 'utf-8' codec can't decode byte 0xc3 in position 0: invalid continuation byte |
解決辦法：重寫3200字節的segy卷頭
marmousi相關數據繪圖

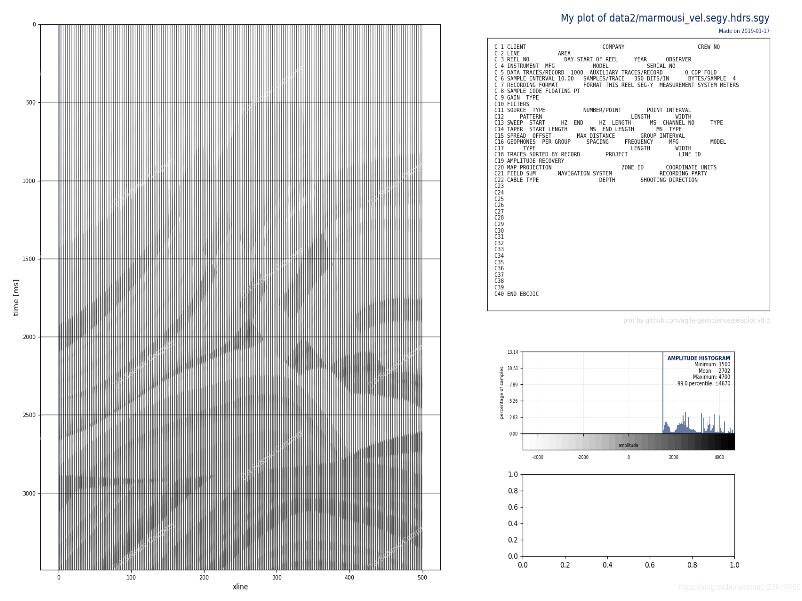

速度模型繪圖結果如下：

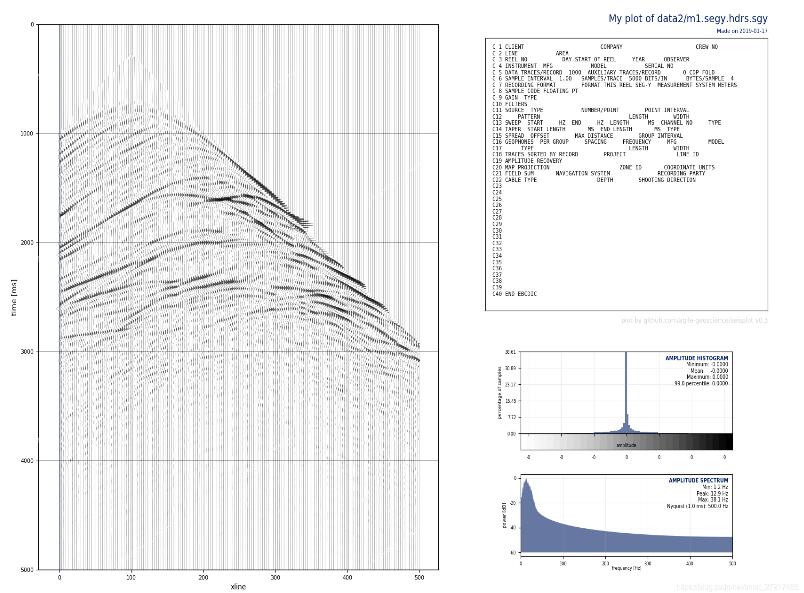

marmousi模型正演的炮集數據繪圖結果如下：
測試備忘
1
cygwin執行指令，可以看到反饋信息為彩色，分析信息很方便。
相比之下，cmd終端執行指令后的反饋信息可讀性較差。
2
本地?cái)?shù)據出現異常后，通過cwp中的segyread, sushw, sugain, segywrite等程序進行修改，滿足繪圖程序要求。
1）3200字節的卷頭必須規范
2）道頭字中的cdpt取值必須規范
3）道采樣值最好歸一化處理。
