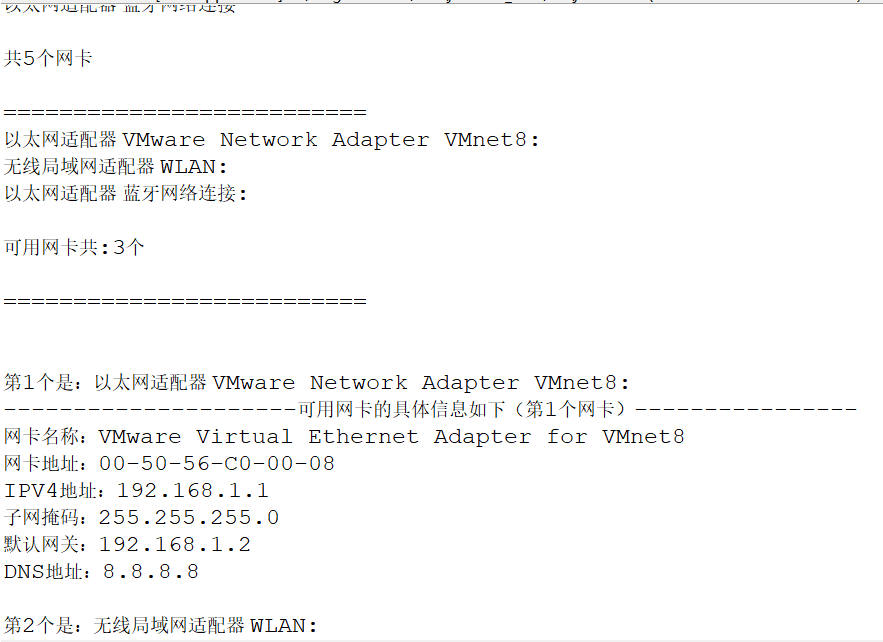

1.執行ipconfig /all獲取主機所有網卡信息
并分析這些字符串,提取出有效網卡(網卡名稱,mac地址,ipv4地址,掩碼,網關,dns)
將網卡插入HashMap中,key是網卡的名稱,value是網卡對象(包含mac和4個邏輯地址)
請輸入網卡的名稱,程序通過map的get方法取出此名稱對應的網卡對象
根據網卡對象執行其方法getNetId()取出其網卡所在網絡號進行打印
getBroadId()取出其廣播號進行打印

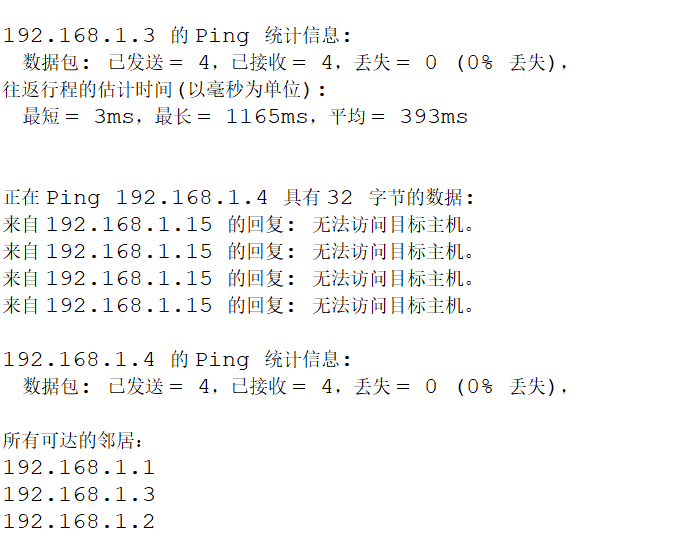

2.根據網卡的ip和掩碼掃描所有這個子網中可能存在的鄰居
然后用ping ..方式進行驗證此鄰居是否存在,如果存在則將其加入
網卡的鄰居集合(HashSet)中
3.某些鄰居有可能開啟防火墻導致ping失敗,所以驗證其是否存在的
恰當方式是先ping它一下,然后用arp -a查看這個鄰居是否有arp回應
如果存在arp條目則說明這個鄰居是存在的.
代碼實例
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
|
package day2020072501;import java.io.BufferedReader;import java.io.InputStreamReader;import java.util.HashMap;import java.util.HashSet;import java.util.Scanner;import java.util.Set;import java.util.regex.Matcher;import java.util.regex.Pattern;public class Zzbds { public static String exeCmd(String commandStr) { BufferedReader br = null; try { Process p = Runtime.getRuntime().exec(commandStr); br = new BufferedReader(new InputStreamReader(p.getInputStream())); String line = null; StringBuilder sb = new StringBuilder(); while ((line = br.readLine()) != null) { sb.append(line + "\n"); } // System.out.println(sb.toString()); return sb.toString(); } catch (Exception e) { e.printStackTrace(); } finally { if (br != null) { try { br.close(); } catch (Exception e) { e.printStackTrace(); } } } return commandStr; } public static void main(String[] args) { String str = exeCmd("ipconfig /all"); String expr = "(.+適配器 +.+)\\:"; // 找到所有網卡名字 HashMap<NetInfo, String> mp = new HashMap<>(); // HashMap存儲信息 Pattern pt = Pattern.compile(expr); // 配對 P，和正則匹配 Matcher mt = pt.matcher(str); // 開始匹配源字符串 matcher System.out.println("\n=========================="); int MacIndex = 0;// 記錄網卡 while (mt.find()) { MacIndex++; System.out.println(mt.group(1)); } System.out.println("\n共" + MacIndex + "個網卡"); if (MacIndex == 0) { System.out.println("沒有網卡"); return; } System.out.println("\n=========================="); Matcher mt1 = pt.matcher(str); // 開始匹配源字符串 matcher // System.out.println("可用網卡"); int MacUse = 0;// 可以使用的網卡數量 String[] MacArr = new String[10];// 存儲網卡數組(可用網卡) while (mt1.find()) { // 循環遍歷所有網卡 // 判斷是否可用 if (NetWorkUtil.NetWorkavailable(mt1.group())) { MacArr[MacUse] = mt1.group(); MacUse++; // System.out.println(mt1.group()); } } for (int i = 0; i < MacUse; i++) { System.out.println(MacArr[i]); } System.out.println("\n可用網卡共:" + MacUse + "個"); System.out.println("\n==========================\n"); // System.out.println("------------------------------------"); // 打印出可用的網卡信息 for (int j = 0; j < MacUse; j++) { // 使用（數組）循環，打印所有可用網卡的所有信息 String MacInfo = "";// 可用的網卡信息 String expr1 = "(" + MacArr[j] + "([\\d\\D]*))"; System.out.println("\n第" + (j + 1) + "個是：" + MacArr[j]); Pattern pt1 = Pattern.compile(expr1); Matcher mt2 = pt1.matcher(str); if (mt2.find()) { MacInfo = mt2.group(1);// 把查到的信息賦給變量MaxInfo } // System.out.println(MacInfo); System.out.println("---------------------可用網卡的具體信息如下（第" + (j + 1) + "個網卡）----------------"); Pattern pt2 = Pattern.compile(" +描述(\\. +)+: (.*)"); Matcher mt3 = pt2.matcher(MacInfo);// 網卡名 Pattern pt3 = Pattern.compile(" +物理地址(\\. +)+: (.*)"); Matcher mt4 = pt3.matcher(MacInfo);// 網卡地址 Pattern pt5 = Pattern.compile(" +IPv4 地址( +\\.)+ +: +(.*)\\("); Matcher mt5 = pt5.matcher(MacInfo);// IP地址 Pattern pt6 = Pattern.compile(" +子網掩碼( +\\.)+ +: +(.*)"); Matcher mt6 = pt6.matcher(MacInfo);// 子網掩碼 Pattern pt7 = Pattern.compile(" +默認網關(\\. +)+: (.*)"); Matcher mt7 = pt7.matcher(MacInfo);// 網關 Pattern pt8 = Pattern.compile(" +DNS 服務器( +\\.)+ +: +(.*)"); Matcher mt8 = pt8.matcher(MacInfo);// DNS String MacName = ""; String MacIP = ""; String IPV4 = ""; String NetMask = ""; String GateWay = ""; String DNS = ""; if (mt3.find() && mt4.find() && mt5.find() && mt6.find() && mt7.find() && mt8.find()) { MacName = mt3.group(2); MacIP = mt4.group(2); IPV4 = mt5.group(2); NetMask = mt6.group(2); GateWay = mt7.group(2); DNS = mt8.group(2); mp.put(new NetInfo(MacName,MacIP, IPV4, NetMask, GateWay, DNS), MacName); } System.out.println("網卡名稱：" + MacName.trim()); System.out.println("網卡地址：" + MacIP.trim()); System.out.println("IPV4地址：" + IPV4.trim()); System.out.println("子網掩碼：" + NetMask.trim()); System.out.println("默認網關：" + GateWay.trim()); System.out.println("DNS地址：" + DNS.trim()); } System.out.println("\n=====================使用HashMap遍歷輸出==========================="); for (NetInfo h : mp.keySet()) { System.out.println("\n網卡名字：" + mp.get(h) + "\n" + h); System.out.println("\n-------------"); } System.out.println("======================"); System.out.println("請輸入網卡名："); //String inputMacName = new Scanner(System.in).next();//輸入網卡名稱 //默認輸入：VMware Virtual Ethernet Adapter for VMnet8 String NetId = "";//記錄IP String inputMacName ="VMware Virtual Ethernet Adapter for VMnet8"; System.out.println("您輸入的是："+inputMacName); for (NetInfo h : mp.keySet()) { if((h.getMacName().trim()).equals(inputMacName)){ System.out.println("\n網卡名字：" + mp.get(h) + "\n" + h); NetId = h.getIPV4(); System.out.println("\nIP："+NetId); //打印出此IP（后面求出網絡號、廣播號） } } //分解數組 String []netIPArr = NetId.split("\\."); for(int i= 0;i<netIPArr.length;i++){ System.out.println(netIPArr[i]); } //求網絡號： System.out.println("網絡號："+netIPArr[0]+"."+netIPArr[1]+"."+netIPArr[2]+"."+0); System.out.println("廣播號："+netIPArr[0]+"."+netIPArr[1]+"."+netIPArr[2]+"."+255); //訪問所有鄰居 HashSet<String> nei = new HashSet<>();//存儲所有可達的鄰居 for(int i= 1;i<5;i++){ String str1 = exeCmd("ping "+netIPArr[0]+"."+netIPArr[1]+"."+netIPArr[2]+"."+i); System.out.println(str1); //判斷是否Ping 通 Pattern pt9 = Pattern.compile("TTL"); Matcher mt9 = pt9.matcher(str1); if (mt9.find()){//如果能ping 通，直接加入到set集合內 //System.out.println(netIPArr[0]+"."+netIPArr[1]+"."+netIPArr[2]+"."+i); nei.add(netIPArr[0]+"."+netIPArr[1]+"."+netIPArr[2]+"."+i);//存儲 }else{//如果ping 不同，使用arp 查看回應 String str2 = exeCmd("arp -a"); Pattern pt10 = Pattern.compile(netIPArr[0]+"."+netIPArr[1]+"."+netIPArr[2]+"."+i); Matcher mt10 = pt10.matcher(str2); nei.add(netIPArr[0]+"."+netIPArr[1]+"."+netIPArr[2]+"."+i);//存儲 } } } //輸出所有可達的鄰居 System.out.println("所有可達的鄰居："); for(String s : nei){ System.out.println(s); } }} |
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
原文鏈接：https://www.cnblogs.com/lwl80/p/13383047.html
