最近的工作圍繞報表導出，并沒有集成相應的報表插件，只是使用了Poi。其中有一個需求，Excel中導出特殊符號，如√、×等。在網上找尋了許久，沒有相關資料，故記錄分享一下。

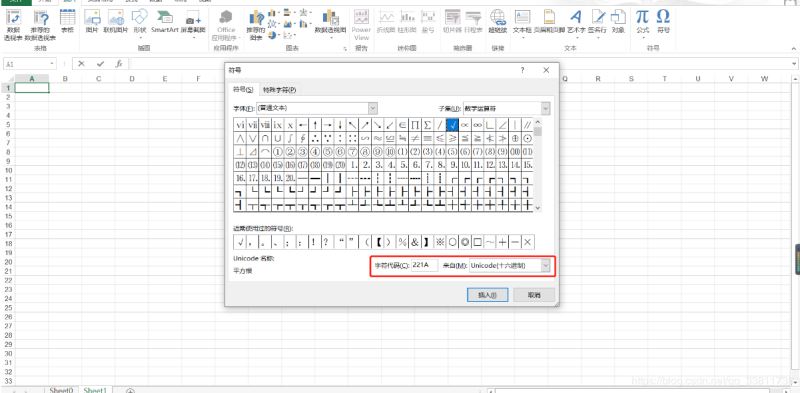

思考良久，走了不少?gòu)澛罚詈笫?System.out.println() 啟發，實現方式真的超級簡單。每一個特殊符號，都對應一個Unicode編碼，我們只需要將特定的符號，轉變成Unicode編碼，進行輸出即可。
相應的代碼輸出：
cell.setCellValue("\u221A");
另附自己編寫的Excel工具類，支持單表、主子表(可定制主表在前還是在后)、圖片、特殊符號等。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
<dependency> <groupId>org.apache.poi</groupId> <artifactId>poi</artifactId> <version>4.1.2</version></dependency><dependency> <groupId>org.apache.poi</groupId> <artifactId>poi-ooxml</artifactId> <version>4.1.2</version></dependency><dependency> <groupId>org.apache.poi</groupId> <artifactId>poi-ooxml-schemas</artifactId> <version>4.1.2</version></dependency> |
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
package com.king.tools.util;import java.util.HashMap;import java.util.Map;/** * @author ππ * @date 2020-6-22 17:03 * 導出的Excel中，百分比 */public class ExcelPercentField { public final static Map<String,String> percentFiledMap = new HashMap<>(); static { // 根據實際情況進行設置 percentFiledMap.put("a","a"); percentFiledMap.put("b","b"); percentFiledMap.put("c","c"); }} |
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
|
package com.king.tools.util;import org.apache.poi.hssf.usermodel.*;import org.apache.poi.hssf.util.HSSFColor;import org.apache.poi.ss.usermodel.*;import org.apache.poi.ss.util.CellRangeAddress;import org.apache.poi.ss.util.RegionUtil;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import javax.servlet.http.HttpServletResponse;import java.io.FileNotFoundException;import java.io.FileOutputStream;import java.io.IOException;import java.io.OutputStream;import java.lang.reflect.Method;import java.util.*;/** * @author ππ * @date 2020-6-10 14:45 * excel 導出通用類 * 采用反射生成 * 目前僅支持導出slx，暫不支持導出xlsx格式 */public class ExcelExport<T> { Logger logger = LoggerFactory.getLogger(ExcelExport.class); private HSSFWorkbook workbook; private HSSFSheet sheet; private int rowNum; private HSSFPatriarch patriarch ; private String fileName; private int version; public ExcelExport(){} public ExcelExport(String fileName, int version) { this.fileName = fileName; this.version = version; } /** * 導出Excel到指定位置 * @param fields 字段集合 主表key為entity,子表key為children * @param dataset 數據集合 注意：如果為主子表，主表中，子表集合對應的屬性名必須為children,反射使用的children進行映射，可修改 * @param path 文件路徑 */ public void exportExcel(String title, Map<String,List<String>> fields, Collection<T> dataset, String path,boolean childBefore){ createExcelHSSF(title,fields,null,dataset,DateUtils.YYYY_MM_DD,path,childBefore); } /** * 導出Excel到指定位置 * @param fields 字段集合 主表key為entity,子表key為children * @param header 表頭數組 * @param dataset 數據集合 注意：如果為主子表，主表中，子表集合對應的屬性名必須為children,反射使用的children進行映射，可修改 * @param path 文件路徑 * @param childBefore 子表在前 默認false */ public void exportExcel(String title,Map<String,List<String>> fields,String[] header,Collection<T> dataset,String path,boolean childBefore){ createExcelHSSF(title,fields,header,dataset,DateUtils.YYYY_MM_DD,path,childBefore); } /** * 導出Excel到指定位置 * @param fields 字段集合 主表key為entity,子表key為children * @param header 表頭數組 * @param dataset 數據集合 注意：如果為主子表，主表中，子表集合對應的屬性名必須為children,反射使用的children進行映射，可修改 * @param pattern 日期格式 * @param path 文件路徑 * @param childBefore 子表在前 */ public void exportExcel(String title,Map<String,List<String>> fields,String[] header,Collection<T> dataset,String pattern,String path,boolean childBefore){ createExcelHSSF(title,fields,header,dataset,pattern,path,childBefore); } /** * 導出文件到本地 * @param fields 字段集合 主表key為entity,子表key為children * @param dataset 數據集合 注意：如果為主子表，主表中，子表集合對應的屬性名必須為children,反射使用的children進行映射，可修改 * @param response http */ public void exportExcel(String title,Map<String,List<String>> fields, Collection<T> dataset, HttpServletResponse response){ createExcelHSSF(title,fields,null,dataset,DateUtils.YYYY_MM_DD,response); } /** * 導出文件到本地 * @param fields 字段集合 主表key為entity,子表key為children * @param header 表頭數組 * @param dataset 數據集合 注意：如果為主子表，主表中，子表集合對應的屬性名必須為children,反射使用的children進行映射，可修改 * @param response http */ public void exportExcel(String title, Map<String,List<String>> fields, String[] header, Collection<T> dataset, HttpServletResponse response){ createExcelHSSF(title,fields,header,dataset,DateUtils.YYYY_MM_DD,response); } /** * 導出文件到本地 * @param fields 字段集合 主表key為entity,子表key為children * @param header 表頭數組 * @param dataset 數據集合 注意：如果為主子表，主表中，子表集合對應的屬性名必須為children,反射使用的children進行映射，可修改 * @param pattern 日期格式 * @param response http */ public void exportExcel(String title, Map<String,List<String>> fields, String[] header, Collection<T> dataset, String pattern, HttpServletResponse response){ createExcelHSSF(title,fields,header,dataset,pattern,response); } /** * 頁面下載excel * @param title * @param fields * @param header * @param dataset * @param pattern * @param response */ private void createExcelHSSF(String title, Map<String,List<String>> fields, String[] header, Collection<T> dataset, String pattern, HttpServletResponse response){ response.reset(); // 清除buffer緩存 // 指定下載的文件名 response.setHeader("Content-Disposition", "attachment;filename=contacts" +(StringUtils.isBlank(fileName)? DateUtils.dateTimeNow() : fileName) + ".xls"); response.setContentType("application/vnd.ms-excel;charset=UTF-8"); response.setHeader("Pragma", "no-cache"); response.setHeader("Cache-Control", "no-cache"); response.setDateHeader("Expires", 0); createExcel2003(title,fields,header,dataset,pattern, false); httpExcelHSSF(workbook,response); } /** * 輸出到指定路徑 * @param title * @param fields * @param header * @param dataset * @param pattern * @param path * @param childBefore */ private void createExcelHSSF(String title,Map<String,List<String>> fields,String[] header,Collection<T> dataset,String pattern,String path,boolean childBefore){ createExcel2003(title,fields,header,dataset,pattern,childBefore); ioExcelHSSF(workbook,path); } /** * 公共方法，創建excel 2003版 * @param title * @param fields * @param header * @param dataset * @param pattern * @param childBefore */ private void createExcel2003(String title, Map<String, List<String>> fields, String[] header, Collection<T> dataset, String pattern, boolean childBefore){ // 初始化構建 initWorkBook(); // 生成樣式 HSSFCellStyle titleStyle = getTitleStyle(workbook); HSSFCellStyle headerStyle = getHeaderStyle(workbook); HSSFCellStyle normalStyle = getNormalStyle(workbook); HSSFCellStyle footerStyle = getFooterStyle(workbook); HSSFCellStyle percentStyle = createPercentStyle(workbook); // 創建表頭 createTableTitle(title,header.length-1,titleStyle); // 生成標題行 createTableHead(header,headerStyle); // 迭代集合 Iterator it = dataset.iterator(); // 獲取主表屬性字段 List<String> entityFields = fields.get("entity"); // 獲取子表屬性字段 List<String> childFields = fields.get("children"); // 主表字段長度 int entityColumnLength = entityFields.size(); int childColumnLength = 0; if(childFields !=null){ childColumnLength = childFields.size(); } // 合并行 int rowspan = 0; // 每個對象的子表數據 Object children = null; HSSFRow row; HSSFCell cell; while (it.hasNext()){ rowNum ++; T t = (T) it.next(); row = sheet.createRow(rowNum); // 確定合并行數 if(childFields !=null && childFields.size() > 0){ children = getValue(t,"children"); if(children !=null && ((ArrayList)children).size()>0){ rowspan = ((ArrayList)children).size()-1; } } // 主表字段 for(int i = 0; i <entityFields.size(); i++){ Object value = getValue(t,entityFields.get(i)); // 創建單元格 if(childBefore){ if(ExcelPercentField.percentFiledMap.containsKey(entityFields.get(i))){ createTableCell(row.createCell(i+childColumnLength),value,percentStyle,pattern,rowspan); }else{ createTableCell(row.createCell(i+childColumnLength),value,normalStyle,pattern,rowspan); } }else{ if(ExcelPercentField.percentFiledMap.containsKey(entityFields.get(i))){ createTableCell(row.createCell(i),value,percentStyle,pattern,rowspan); }else{ createTableCell(row.createCell(i),value,normalStyle,pattern,rowspan); } } } // 子表字段 if(childFields !=null && childFields.size() > 0){ if(children !=null ){ List list = (ArrayList)children; for(int i = 0;i <list.size(); i++){ if(i >0){ rowNum++; row = sheet.createRow(rowNum); } for(int j = 0;j<childFields.size();j++){ Object value = getValue(list.get(i),childFields.get(j)); if(childBefore){ if(ExcelPercentField.percentFiledMap.containsKey(childFields.get(j))){ createTableCell(row.createCell(j ),value,percentStyle,pattern,rowspan); }else{ createTableCell(row.createCell(j ),value,normalStyle,pattern,rowspan); } }else{ if(ExcelPercentField.percentFiledMap.containsKey(childFields.get(j))){ createTableCell(row.createCell(j +entityColumnLength),value,percentStyle,pattern,rowspan); }else{ createTableCell(row.createCell(j +entityColumnLength),value,normalStyle,pattern,rowspan); } } } } } } // 如果需要合并行 if(rowspan > 0){ for(int i = 0;i<entityFields.size();i++){ CellRangeAddress cellRange = null; if(childBefore){ cellRange= new CellRangeAddress(rowNum-rowspan,rowNum,i+childColumnLength,i+childColumnLength); }else{ cellRange = new CellRangeAddress(rowNum-rowspan,rowNum,i,i); } sheet.addMergedRegion(cellRange); //添加邊框 RegionUtil.setBorderTop(BorderStyle.THIN, cellRange, sheet); RegionUtil.setBorderBottom(BorderStyle.THIN, cellRange, sheet); RegionUtil.setBorderLeft(BorderStyle.THIN, cellRange, sheet); RegionUtil.setBorderRight(BorderStyle.THIN, cellRange, sheet); RegionUtil.setTopBorderColor(HSSFColor.HSSFColorPredefined.GREEN.getIndex(),cellRange,sheet); RegionUtil.setBottomBorderColor(HSSFColor.HSSFColorPredefined.GREEN.getIndex(),cellRange,sheet); RegionUtil.setLeftBorderColor(HSSFColor.HSSFColorPredefined.GREEN.getIndex(),cellRange,sheet); RegionUtil.setRightBorderColor(HSSFColor.HSSFColorPredefined.GREEN.getIndex(),cellRange,sheet); } } } sheet.autoSizeColumn(2); setSizeColumn(sheet,entityColumnLength+childColumnLength); } /** * 初始化構建工作簿 */ private void initWorkBook(){ // 創建一個工作簿 workbook = HSSFWorkbookFactory.createWorkbook(); // 創建一個sheet sheet = workbook.createSheet(); // 默認表格列寬 sheet.setDefaultColumnWidth(18); patriarch = sheet.createDrawingPatriarch(); } /** * 創建Excel標題 * @param title 標題 * @param colspan 合并列 * @param headerStyle 樣式 */ private void createTableTitle(String title,int colspan, HSSFCellStyle headerStyle) { if(StringUtils.isBlank(title)){ return; } HSSFRow row = sheet.createRow(rowNum); row.setHeightInPoints(30f); HSSFCell cell = row.createCell(0); sheet.addMergedRegion(new CellRangeAddress(rowNum,rowNum,0,colspan)); cell.setCellStyle(headerStyle); cell.setCellValue(title); rowNum ++; } /** * 創建Excel表頭 * @param header * @param headerStyle */ private void createTableHead(String[] header, HSSFCellStyle headerStyle) { if(header ==null || header.length <1){ return; } HSSFRow row = sheet.createRow(rowNum); HSSFCell cell; for (int i = 0; i < header.length; i++){ cell = row.createCell(i); cell.setCellStyle(headerStyle); cell.setCellValue(header[i]); cell.setCellType(CellType.STRING); } } /** * 創建單元格 * @param cell * @param value * @param normalStyle */ private void createTableCell(HSSFCell cell, Object value, HSSFCellStyle normalStyle, String pattern, int rowspan) { cell.setCellStyle(normalStyle); if (value ==null){ return; } if(value instanceof Number){ cell.setCellType(CellType.NUMERIC); cell.setCellValue(Double.parseDouble(value.toString())); //日期 } else if(value instanceof Date){ cell.setCellType(CellType.STRING); cell.setCellValue(DateUtils.parseDateToStr(pattern,(Date)value)); // 圖片 } else if(value instanceof byte[]){ cell.getRow().setHeightInPoints(80); sheet.setColumnWidth(cell.getColumnIndex(),(short) (34.5 * 110)); HSSFClientAnchor anchor = new HSSFClientAnchor(0, 0, 1023, 255, (short) cell.getColumnIndex(), rowNum, (short) cell.getColumnIndex(), rowNum); anchor.setAnchorType(ClientAnchor.AnchorType.MOVE_DONT_RESIZE); patriarch.createPicture(anchor, workbook.addPicture( (byte[])value, HSSFWorkbook.PICTURE_TYPE_JPEG)); }else if(value instanceof Boolean){ cell.setCellType(CellType.STRING); if((boolean)value){ cell.setCellValue("\u221A"); } // 全部當作字符串處理 }else{ cell.setCellType(CellType.STRING); cell.setCellValue(new HSSFRichTextString(String.valueOf(value))); } } /** * 創建標題行 * @param workbook * @return */ private HSSFCellStyle getTitleStyle(HSSFWorkbook workbook) { HSSFCellStyle style = getNormalStyle(workbook); style.getFont(workbook).setFontHeightInPoints((short)12); style.setAlignment(HorizontalAlignment.CENTER); style.setVerticalAlignment(VerticalAlignment.CENTER); return style; } /** * 創建尾部合計行 * @param workbook * @return */ private HSSFCellStyle getFooterStyle(HSSFWorkbook workbook) { HSSFCellStyle style = getNormalStyle(workbook); style.getFont(workbook).setFontHeightInPoints((short)12); style.setAlignment(HorizontalAlignment.CENTER); style.setVerticalAlignment(VerticalAlignment.CENTER); style.setFillForegroundColor(IndexedColors.LIME.getIndex()); style.setFillPattern(FillPatternType.SOLID_FOREGROUND); return style; } /** * 創建表頭樣式 * @param workbook * @return */ private HSSFCellStyle getHeaderStyle(HSSFWorkbook workbook) { HSSFCellStyle style = getNormalStyle(workbook); style.getFont(workbook).setFontHeightInPoints((short)11); style.setAlignment(HorizontalAlignment.CENTER); style.setVerticalAlignment(VerticalAlignment.CENTER); style.setFillForegroundColor(IndexedColors.LIME.getIndex()); style.setFillPattern(FillPatternType.SOLID_FOREGROUND); HSSFPalette palette = workbook.getCustomPalette(); palette.setColorAtIndex(IndexedColors.LIME.getIndex(),(byte)198,(byte)224,(byte)180); return style; } /** * 百分比格式 * @param workbook * @return */ private HSSFCellStyle createPercentStyle(HSSFWorkbook workbook){ HSSFCellStyle style = getNormalStyle(workbook); style.setDataFormat(HSSFDataFormat.getBuiltinFormat("0.00%")); return style; } /** * 創建普通樣式 * @param workbook * @return */ private HSSFCellStyle getNormalStyle(HSSFWorkbook workbook){ // 創建字體 HSSFFont font = workbook.createFont(); font.setFontHeightInPoints((short)10); // 構建樣式 HSSFCellStyle style = workbook.createCellStyle(); // 設置邊框 style.setBorderTop(BorderStyle.THIN); style.setBorderRight(BorderStyle.THIN); style.setBorderBottom(BorderStyle.THIN); style.setBorderLeft(BorderStyle.THIN); style.setTopBorderColor(HSSFColor.HSSFColorPredefined.BLACK.getIndex()); style.setRightBorderColor(HSSFColor.HSSFColorPredefined.BLACK.getIndex()); style.setBottomBorderColor(HSSFColor.HSSFColorPredefined.BLACK.getIndex()); style.setLeftBorderColor(HSSFColor.HSSFColorPredefined.BLACK.getIndex()); style.setAlignment(HorizontalAlignment.CENTER); style.setVerticalAlignment(VerticalAlignment.CENTER); style.setFont(font); // 字體默認換行 style.setWrapText(true); return style; } /** * 反射獲取值 * @param t * @param fieldName * @param <E> * @return */ private <E> Object getValue(E t,String fieldName){ String methodName = "get" + fieldName.substring(0, 1).toUpperCase() + fieldName.substring(1); try { Method method = t.getClass().getMethod(methodName); method.setAccessible(true); Object value = method.invoke(t); return value; } catch (Exception e) { e.printStackTrace(); } return null; } /** * 輸出IO流 * @param workbook * @param path * @return */ private void ioExcelHSSF(HSSFWorkbook workbook, String path){ OutputStream ops =null; if(StringUtils.isBlank(fileName)){ path = path + DateUtils.dateTimeNow() +".xls"; } else { path = path + fileName + ".xls"; } try { ops = new FileOutputStream(path); workbook.write(ops); } catch (FileNotFoundException e) { e.printStackTrace(); } catch (IOException e) { e.printStackTrace(); }finally { if(ops != null){ try { ops.close(); } catch (IOException e) { e.printStackTrace(); } } } } private void httpExcelHSSF(HSSFWorkbook workbook, HttpServletResponse response){ OutputStream ops = null; try { ops = response.getOutputStream(); response.flushBuffer(); workbook.write(ops); } catch (IOException e) { e.printStackTrace(); if(ops !=null){ try { ops.close(); } catch (IOException ex) { ex.printStackTrace(); } } } } /** * 自適應列寬 * @param sheet * @param size 列數 */ private void setSizeColumn(HSSFSheet sheet, int size) { for(int i =0;i<size;i++){ int columnWidth = sheet.getColumnWidth(i) / 256; for (int rowNum = 1; rowNum <= sheet.getLastRowNum(); rowNum++) { HSSFRow currentRow; //當前行未被使用過 if (sheet.getRow(rowNum) == null) { currentRow = sheet.createRow(rowNum); } else { currentRow = sheet.getRow(rowNum); } if (currentRow.getCell(i) != null) { HSSFCell currentCell = currentRow.getCell(i);// if(rowNum==sheet.getLastRowNum()){// HSSFCellStyle style = currentCell.getCellStyle();// style.setFillForegroundColor(IndexedColors.LIME.getIndex());// style.setFillPattern(FillPatternType.SOLID_FOREGROUND);// currentCell.setCellStyle(style);// } if (currentCell.getCellType() == CellType.STRING) { int length = currentCell.getStringCellValue().getBytes().length; if (columnWidth < length) { columnWidth = length; } } } } sheet.setColumnWidth(i, columnWidth * 256); } }} |

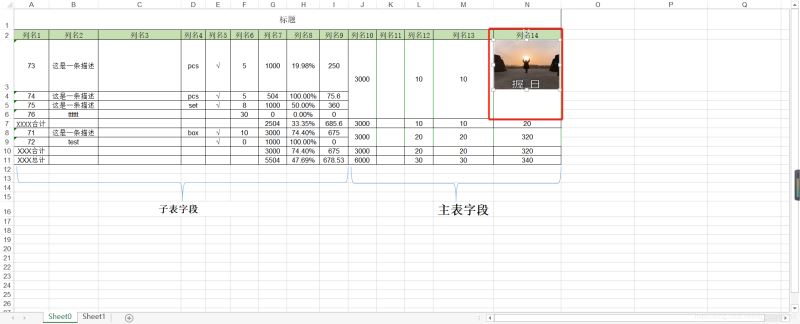

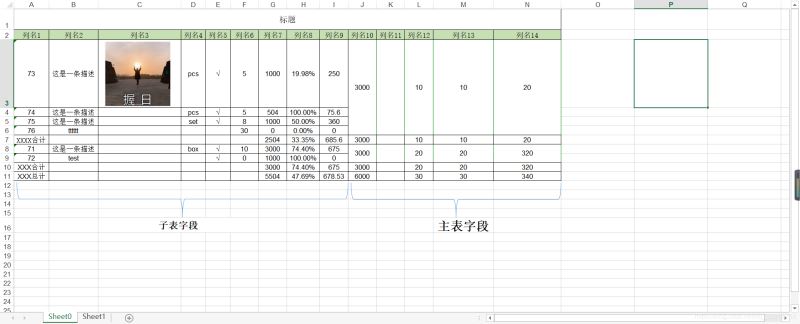

效果圖如下：
但仍遇到一個問題，主子表結構導出，如果圖片在主表，合并行之后，圖片并不會居中，并且第一行會被撐開，有沒有比較簡單的方式進行處理(不想重新計算錨點，然后定高輸出)？
到此這篇關于Java Poi 在Excel中輸出特殊符號的文章就介紹到這了,更多相關java poi excel 輸出特殊符號內容請搜索服務器之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持服務器之家！
原文鏈接：https://blog.csdn.net/qq_33811736/article/details/107377195
