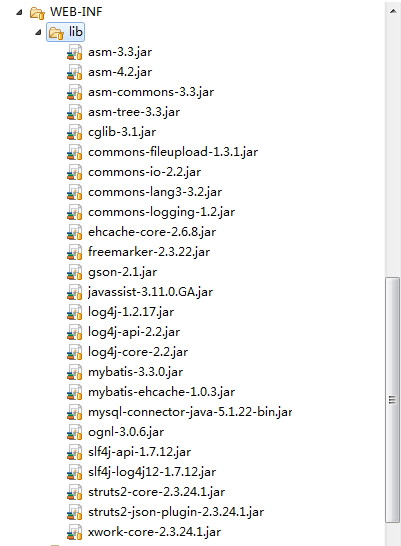

一、新建Web工程，并在lib目錄下添加jar包
主要jar包：struts2相關包，mybatis3.3相關包，mysql-connector-java-5.1.22-bin.jar， gson-2.1.jar
二、配置web.xml，添加一個過濾器StrutsPrepareAndExecuteFilter，處理所有*.action請求；
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
<?xml version="1.0" encoding="UTF-8"?><web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0"> <display-name>MS</display-name> <filter> <filter-name>struts2</filter-name> <filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class> </filter> <filter-mapping> <filter-name>struts2</filter-name> <url-pattern>*.action</url-pattern> </filter-mapping> <welcome-file-list> <welcome-file>index.jsp</welcome-file> </welcome-file-list></web-app> |
查看該過濾器doFilter源碼，主要做以下幾件事：
1、判斷是否設置了struts排除的url（struts.action.excludePattern，通過正則表達式匹配），如果有且當前路徑符合規則，則將請求轉發給過濾器鏈上下一個對象，不交給struts2處理
|
1
2
3
|
if (excludedPatterns != null && prepare.isUrlExcluded(request, excludedPatterns)) { chain.doFilter(request, response);} |
2、查找ActionMapping：通過PrepareOperations的findActionMapping方法查找，如果沒找到，則將請求轉發給過濾器鏈上下一個對象，不交給struts2處理；如果找到ActionMapping，則調用ExecuteOperations的executeAction方法，開始執行Action；下圖是根據url找到ActionMapping的情況；
三、配置struts.xml文件,該Demo主要演示向前端傳json格式數據，result type設成json格式，當然也可以設成其它的；
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
|
<?xml version="1.0" encoding="UTF-8" ?><!DOCTYPE struts PUBLIC "-//Apache Software Foundation//DTD Struts Configuration 2.3//EN" "http://struts.apache.org/dtds/struts-2.3.dtd"><struts> <constant name="struts.devMode" value="false" /> <package name="default" extends="struts-default,json-default"> <global-results> <result type="json"> <param name="root">json</param> <param name="contentType">text/html</param> </result> </global-results> <action name="addUser" class="ms.action.UserAction" method="addUser"> <result>.</result> </action> <action name="queryAllUser" class="ms.action.UserAction" method="queryAllUser"> <result>.</result> </action> </package> <!-- Add packages here --></struts> |
四、配置Mybatis.xml和userMapper.xml,
配置cacheEnabled為true, 開啟二級緩存；
配置datasource相關信息: type為POOLED-連接池形式，poolMaximumActiveConnections – 在任意時間存在的活動(也就是正在使用)連接的數量，默認值:10。
配置實體類映射mappers //<mapper resource="ms/model/userMapper.xml"/>
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
|
<?xml version="1.0" encoding="UTF-8"?><!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD SQL Map Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd"><configuration> <settings> <!--開啟二級緩存--> <setting name="cacheEnabled" value="true"/> </settings> <environments default="development"> <environment id="development"> <transactionManager type="JDBC" /> <dataSource type="POOLED"> <property name="driver" value="com.mysql.jdbc.Driver" /> <property name="url" value="jdbc:mysql://localhost:3306/demo" /> <property name="username" value="root" /> <property name="password" value="admin" /> <property name="poolMaximumActiveConnections" value="10" /> <property name="poolPingEnabled" value="true"/> <property name="poolPingQuery" value="select 1 as poolPingQuery"/> </dataSource> </environment> </environments> <mappers> <mapper resource="ms/model/userMapper.xml"/> </mappers></configuration> |
配置userMapper.xml，配置緩存為EHcache及相關參數，記得實體類要實現Serializable接口
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
|
<?xml version="1.0" encoding="UTF-8"?><!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd"><mapper namespace="UserMapper"> <!-- 默認的cache <cache />--> <!-- 使用ehcache緩存 --> <cache type="org.mybatis.caches.ehcache.LoggingEhcache" > <property name="timeToIdleSeconds" value="3600"/><!--1 hour 緩存自創建日期起至失效時的間隔時間--> <property name="timeToLiveSeconds" value="3600"/><!--1 hour 緩存創建以后，最后一次訪問緩存的日期至失效之時的時間間隔--> <property name="maxEntriesLocalHeap" value="1000"/> <property name="maxEntriesLocalDisk" value="10000000"/> <property name="memoryStoreEvictionPolicy" value="LRU"/> </cache> <!-- 新增--> <insert id="saveUser" parameterType="ms.model.User"> insert into USER( account, name, address ) values ( #{account}, #{name}, #{address} ) </insert> <select id="queryAllUser" resultType="ms.model.User"> select u.id, u.account, u.name, u.address from USER u </select> </mapper> |
五、關鍵代碼
DAO層：
首先建一個類，用于獲取SqlSessionFactory，設計成單例模式；
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
|
package ms.dao.base;import java.io.IOException;import org.apache.ibatis.io.Resources;import org.apache.ibatis.session.SqlSessionFactory;import org.apache.ibatis.session.SqlSessionFactoryBuilder;import org.apache.log4j.Logger;public class MySessionFactory { private static SqlSessionFactory sessionFactory; private MySessionFactory(){ } public static synchronized SqlSessionFactory getSqlSessionFactory(){ if(sessionFactory == null){ try { sessionFactory = new SqlSessionFactoryBuilder().build(Resources.getResourceAsReader("mybatis-config.xml")); return sessionFactory; } catch (IOException e) { Logger.getLogger(MySessionFactory.class).error("getSqlSessionFactory error."); e.printStackTrace(); return null; } }else{ return sessionFactory; } } } |
接下來是UserDao，通過openSession獲取SqlSession,注意這里是可以通過SqlSession的commit和rollback進行事務控制的，當然如果本來就一條sql操作，也就沒什么事務控制可言了（本例子只是demo）；
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
|
package ms.dao;import java.util.ArrayList;import java.util.List;import org.apache.ibatis.session.SqlSession;import ms.dao.base.MySessionFactory;import ms.model.User;public class UserDao { public void add(User user) throws Exception{ SqlSession session = MySessionFactory.getSqlSessionFactory().openSession(); try { String statement = "UserMapper.saveUser"; session.insert(statement, user); session.commit(true); } catch (Exception e) { session.rollback(true); e.printStackTrace(); throw new Exception("error in add method"); } finally { session.close(); } } public List<User> queryAllUser() throws Exception{ SqlSession session = MySessionFactory.getSqlSessionFactory().openSession(); List<User> users = new ArrayList<User>(); try{ String statement = "UserMapper.queryAllUser"; users = session.selectList(statement,1); session.commit(true); } catch (Exception e) { session.rollback(true); e.printStackTrace(); throw new Exception("error in queryAllUser method"); } finally { session.close(); } return users; }} |
Service層：略
Model：略
Action層：
轉成json格式數據返回給前端；
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
|
package ms.action;import java.io.PrintWriter;import java.util.List;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import ms.model.User;import ms.service.UserService;import org.apache.log4j.Logger;import org.apache.struts2.ServletActionContext;import com.google.gson.Gson;public class UserAction { Logger logger = Logger.getLogger(UserAction.class); private UserService userService = new UserService(); public void addUser(){ PrintWriter out = null; try{ HttpServletRequest request = ServletActionContext.getRequest(); HttpServletResponse response = ServletActionContext.getResponse(); response.setContentType("text/html;charset=UTF-8"); String account = request.getParameter("account"); String name = request.getParameter("name"); String address = request.getParameter("address"); User user = new User(); user.setAccount(account); user.setAddress(address); user.setName(name); userService.add(user); out = response.getWriter(); out.write(new Gson().toJson("success")); }catch(Exception e){ e.printStackTrace(); logger.error(e.getMessage()); if(out != null) out.write(new Gson().toJson("fail")); }finally{ out.flush(); out.close(); } } public void queryAllUser(){ PrintWriter out = null; try { HttpServletResponse response = ServletActionContext.getResponse(); response.setContentType("text/html;charset=UTF-8"); Gson gson = new Gson(); List<User> userList= userService.queryAllUser(); String gsonStr = gson.toJson(userList); out = response.getWriter(); out.write(gsonStr); } catch (Exception e) { e.printStackTrace(); logger.error(e.getMessage()); if(out != null) out.write(new Gson().toJson("fail")); }finally{ out.flush(); out.close(); } }} |
前端代碼：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
|
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%><!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd"><html><head><meta http-equiv="Content-Type" content="text/html; charset=UTF-8"><title>Insert title here</title><style>.mt20{ margin-top: 20px;}</style></head><body><div style="text-align: center;"> <div class="mt20"><label>賬號：</label><input id="account" type="text"/></div> <div class="mt20"><label>姓名：</label><input id="name" type="text"/></div> <div class="mt20"><label>地址：</label><input id="address" type="text"/></div> <div class="mt20"><button id="addUser" >添加</button></div></div><h3>用戶列表:</h3><ul id="userList"></ul><script type="text/javascript" src="js/jquery-1.11.1.min.js"></script><script> $(function() { $.ajax({ url : 'queryAllUser.action', type : 'post', dataType : 'json', success : function(data) { try { for(var i = 0; i < data.length; i++){ $("#userList").append("<li><span style='color:red'>id="+data[i].id+"</span>,account="+data[i].account+",name="+data[i].name+",address="+data[i].address+"</li>"); } } catch (e) {}; } , error : function(e) { alert("sys error"); } }); $("#addUser").on("click", function() { var account = $("#account").val(); var name = $("#name").val(); var address = $("#address").val(); $.ajax({ url : 'addUser.action', type : 'post', dataType : 'json', data : { account : account, name : name, address : address }, success : function(data) { try { $("#userList").append("<li>account="+account+",name="+name+",address="+address+"</li>"); alert("添加成功"); } catch (e) { } }, error : function(e) { alert("sys error"); } }); }); });</script></body></html> |
六、測試效果：
struts2運行正常；
測試二級緩存是否OK，查詢所有User；

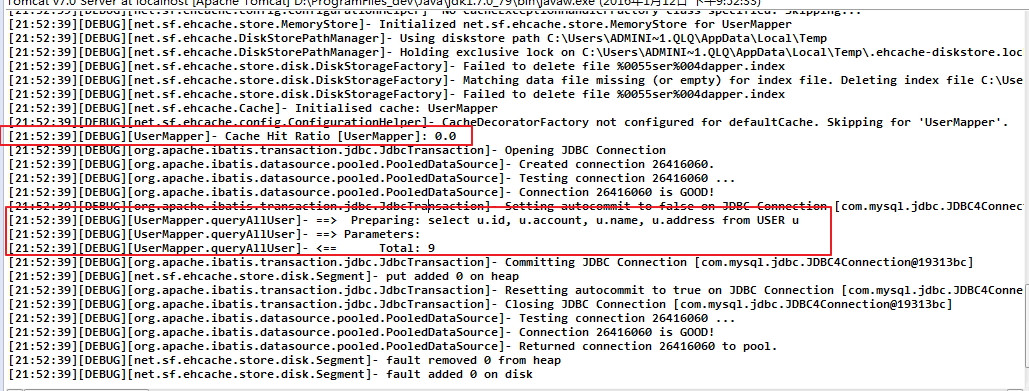

第一次查詢：cache未命中，訪問數據庫：
第二次以及接下來的多次查詢，cache命中，沒有訪問數據庫：
@author 風一樣的碼農
