什么是 Shiro
Shiro 是一個強大的簡單易用的 Java 安全框架,主要用來更便捷的 認證,授權,加密,會話管理。Shiro 首要的和最重要的目標就是容易使用并且容易理解,通過 Shiro 易于理解的API,您可以快速、輕松地獲得任何應用程序――從最小的移動應用程序最大的網絡和企業應用程序
Shiro 架構

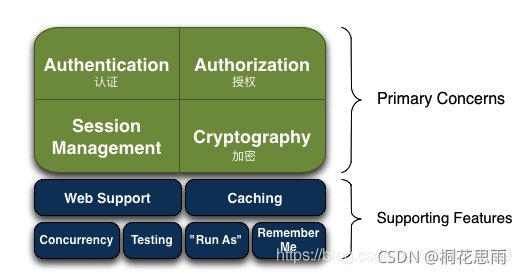

Shiro 架構圖
- Authentication:身份認證/登錄
- Authorization:驗證權限,即,驗證某個人是否有做某件事的權限
- Session Management:會話管理。管理用戶特定的會話,支持 web 與非 web
- Cryptography: 加密,保證數據安全
- Caching:緩存
- Remember Me:記住我,即記住登錄狀態,一次登錄后,下次再來的話不用登錄了
Shiro 工作原理
Shiro 的架構有三個主要概念:Subject,SecurityManager 和 Realms
- Subject:當前參與應用安全部分的主角??梢允怯脩簦梢栽嚨谌椒?wù),可以是 cron 任務,或者任何東西。主要指一個正在與當前軟件交互的東西。所有 Subject 都需要 SecurityManager,當你與 Subject 進行交互,這些交互行為實際上被轉換為與 SecurityManager 的交互
- SecurityManager:安全管理器,Shiro 架構的核心,它就像 Shiro 內部所有原件的保護傘。然而一旦配置了 SecurityManager,SecurityManager 就用到的比較少,開發者大部分時間都花在 Subject 上面。當你與 Subject 進行交互的時候,實際上是 SecurityManager在 背后幫你舉起 Subject 來做一些安全操作
- Realms:Realms 作為 Shiro 和你的應用的連接橋,當需要與安全數據交互的時候,像用戶賬戶,或者訪問控制,Shiro 就從一個或多個 Realms 中查找。Shiro 提供了一些可以直接使用的 Realms,如果默認的 Realms不能滿足你的需求,你也可以定制自己的 Realms

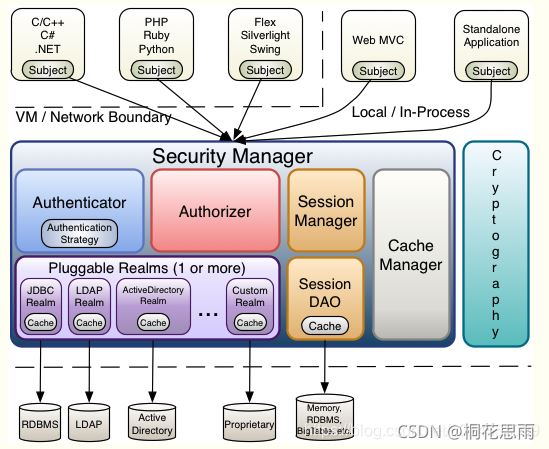

Shiro 詳細架構圖
- Subject:與應用交互的主體,例如用戶,第三方應用等
- SecurityManager:shiro 的核心,負責整合所有的組件,使他們能夠方便快捷完成某項功能。例如:身份驗證,權限驗證等
- Authenticator:認證器,負責主體認證的,這是一個擴展點,如果用戶覺得 Shiro 默認的不好,可以自定義實現;其需要認證策略(Authentication Strategy),即什么情況下算用戶認證通過了。
- Authorizer:決定主體是否有權限進行相應的操作;即控制著用戶能訪問應用中的哪些功能
- SessionManager:會話管理。CacheManager:緩存管理器。創建和管理緩存,為 authentication, authorization 和 session management 提供緩存數據,避免直接訪問數據庫,提高效率
- Cryptography;密碼模塊,提供加密組件
- Realms:可以有 1 個或多個 Realm,可以認為是安全實體數據源,即用于獲取安全實體的;可以是 JDBC 實現,也可以是 LDAP 實現,或者內存實現等等;由用戶提供;注意:Shiro 不知道你的用戶/權限存儲在哪及以何種格式存儲;所以我們一般在應用中都需要實現自己的 Realm
springboot 整合 shiro
springboot 整合 shiro 思路
項目搭建
主要依賴
<!--thymeleaf 模板引擎--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-thymeleaf</artifactId> </dependency> <!--shiro--> <dependency> <groupId>org.apache.shiro</groupId> <artifactId>shiro-spring-boot-starter</artifactId> <version>1.4.0</version> </dependency> <!-- thymeleaf 集成 shiro --> <dependency> <groupId>com.github.theborakompanioni</groupId> <artifactId>thymeleaf-extras-shiro</artifactId> <version>2.0.0</version> </dependency>
數據庫表設計
CREATE TABLE `shiro_user` ( `id` int(11) NOT NULL AUTO_INCREMENT, `username` varchar(255) NOT NULL, `password` varchar(255) NOT NULL, `nickname` varchar(255) NOT NULL, PRIMARY KEY (`id`), UNIQUE KEY `index_username` (`username`) USING BTREE ) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8mb4; INSERT INTO `shiro_user` VALUES (1, 'lisi', '110110', '李四'); INSERT INTO `shiro_user` VALUES (2, 'zs', '123456', '逆風飛翔'); INSERT INTO `shiro_user` VALUES (3, 'jack', '111111', '砥礪奮進'); INSERT INTO `shiro_user` VALUES (4, 'Tom', '123123', '靜夜思'); INSERT INTO `shiro_user` VALUES (5, 'nike', '222222', '殺傷力巨大'); CREATE TABLE `shiro_user_role` ( `id` int(11) NOT NULL AUTO_INCREMENT, `user_id` int(11) NOT NULL, `role_id` int(11) NOT NULL, PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8mb4; INSERT INTO `shiro_user_role` VALUES (1, 1, 1); INSERT INTO `shiro_user_role` VALUES (2, 2, 3); INSERT INTO `shiro_user_role` VALUES (3, 3, 3); INSERT INTO `shiro_user_role` VALUES (4, 4, 2); CREATE TABLE `shiro_role` ( `id` int(11) NOT NULL AUTO_INCREMENT, `role_code` varchar(255) NOT NULL, `role_name` varchar(255) NOT NULL, PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8mb4; INSERT INTO `shiro_role` VALUES (1, '1', '管理員'); INSERT INTO `shiro_role` VALUES (2, '2', '普通一級用戶'); INSERT INTO `shiro_role` VALUES (3, '3', '普通二級用戶'); INSERT INTO `shiro_role` VALUES (4, '4', '普通三級用戶'); CREATE TABLE `shiro_auth_role` ( `id` int(11) NOT NULL AUTO_INCREMENT, `auth_id` int(11) NOT NULL, `role_id` int(11) NOT NULL, PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=10 DEFAULT CHARSET=utf8mb4; INSERT INTO `shiro_auth_role` VALUES (1, 1, 1); INSERT INTO `shiro_auth_role` VALUES (2, 2, 1); INSERT INTO `shiro_auth_role` VALUES (3, 3, 1); INSERT INTO `shiro_auth_role` VALUES (4, 4, 1); INSERT INTO `shiro_auth_role` VALUES (5, 3, 2); INSERT INTO `shiro_auth_role` VALUES (6, 4, 2); INSERT INTO `shiro_auth_role` VALUES (7, 4, 3); INSERT INTO `shiro_auth_role` VALUES (8, 4, 4); INSERT INTO `shiro_auth_role` VALUES (9, 1, 3); CREATE TABLE `shiro_auth` ( `id` int(11) NOT NULL AUTO_INCREMENT, `auth_code` varchar(255) NOT NULL, `auth_name` varchar(255) NOT NULL, `parent_id` int(11) NOT NULL, PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8mb4; INSERT INTO `shiro_auth` VALUES (1, 'user:add', '添加', 1); INSERT INTO `shiro_auth` VALUES (2, 'user:delete', '刪除', 2); INSERT INTO `shiro_auth` VALUES (3, 'user:update', '更新', 3); INSERT INTO `shiro_auth` VALUES (4, 'user:list', '查看', 4);
實體類
public class User implements Serializable { private Integer id; @NotBlank(message = "賬號不能為空") private String username; @NotEmpty(message = "密碼不能為空") private String password; private String nickname; // set/get方法省略 } public class Role { private Integer id; private String roleCode; private String roleName; // set/get方法省略 } public class Auth { private Integer id; private String authCode; private String authName; private Integer parentId; // set/get方法省略 }
自定義 Realm
realm 是 shiro 進行登錄認證,權限,角色校驗的關鍵,我們需要重寫里面的方法
@Component @Slf4j public class UserRealm extends AuthorizingRealm { @Autowired private UserService userService; // 授權,權限操作 @Override protected AuthorizationInfo doGetAuthorizationInfo(@NotNull PrincipalCollection principals) { log.info("------進入授權操作了------"); User user = (User) principals.getPrimaryPrincipal(); SimpleAuthorizationInfo info = new SimpleAuthorizationInfo(); // 通過賬號來查詢相應的角色,權限數據 List<AuthAndRoleVO> authAndRoleVOS = userService.selectAuthAndRole(user.getUsername()); authAndRoleVOS.forEach(item -> { log.info("查詢到的權限,角色:" + item.toString()); String roleName = item.getRoleName(); String authCode = item.getAuthCode(); info.addStringPermission(authCode); info.addRole(roleName); }); return info; } // 認證操作 @Override protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException { log.info("------進入認證操作了------"); // 拿到UsernamePasswordToken,它里面有用戶名,密碼數據 UsernamePasswordToken usernamePasswordToken = (UsernamePasswordToken) token; // 查詢數據庫 User user = userService.selectOne(usernamePasswordToken.getUsername(), String.valueOf(usernamePasswordToken.getPassword())); if (user == null) { return null; } return new SimpleAuthenticationInfo(user, token.getCredentials(), getName()); } }
- 這里 ORM 持久層不再贅述,用 mybatis 或 jpa 等都可以
- doGetAuthorizationInfo(): 權限認證。即登錄過后,每個用戶的身份不一樣,對應的所能看的頁面也不一樣,也就是擁有的權限也不一樣
- doGetAuthenticationInfo():身份認證。即登錄通過賬號和密碼驗證登陸人的身份信息
shiro 的配置類
@Configuration public class ShiroConfig { /** * 安全管理器 */ @Bean public DefaultWebSecurityManager getDefaultWebSecurityManager(UserRealm userRealm) { DefaultWebSecurityManager defaultWebSecurityManager = new DefaultWebSecurityManager(); defaultWebSecurityManager.setRealm(userRealm); return defaultWebSecurityManager; } /** * thymeleaf模板引擎中使用shiro標簽時,要用到 */ @Bean public ShiroDialect getShiroDialect() { return new ShiroDialect(); } @Bean public ShiroFilterFactoryBean shiroFilter(DefaultWebSecurityManager defaultWebSecurityManager) { ShiroFilterFactoryBean shiroFilterFactoryBean = new ShiroFilterFactoryBean(); shiroFilterFactoryBean.setSecurityManager(defaultWebSecurityManager); // 設置登錄頁面url shiroFilterFactoryBean.setLoginUrl("/user/login"); shiroFilterFactoryBean.setSuccessUrl("/user/index"); shiroFilterFactoryBean.setUnauthorizedUrl("/user/unauthorized"); // 注意此處使用的是LinkedHashMap是有順序的,shiro會按從上到下的順序匹配驗證,匹配了就不再繼續驗證 Map<String, String> filterChainDefinitionMap = new LinkedHashMap<>(); // 靜態資源放行 filterChainDefinitionMap.put("/layer/**", "anon"); filterChainDefinitionMap.put("/img/**", "anon"); filterChainDefinitionMap.put("/jquery/**", "anon"); // add.html頁面放行 filterChainDefinitionMap.put("/user/add", "anon"); // update.html必須認證 filterChainDefinitionMap.put("/user/update", "authc"); // index.html必須認證 filterChainDefinitionMap.put("/user/index", "authc"); // 設置授權,只有user:add權限的才能請求/user/add這個url filterChainDefinitionMap.put("/user/add", "perms[user:add]"); filterChainDefinitionMap.put("/user/update", "perms[user:update]"); shiroFilterFactoryBean.setFilterChainDefinitionMap(filterChainDefinitionMap); return shiroFilterFactoryBean; } }
ShiroFilterFactoryBean 過濾器鏈配置中的 url 匹配規則
- ?:匹配一個字符,如 /admin?,將匹配 /admin1、/admin2,但不匹配 /admin
- *:匹配零個或多個字符串,如 /admin* ,將匹配 /admin、/admin123,但不匹配 /admin/1
- **:匹配路徑中的零個或多個路徑,如 /admin/**,將匹配 /admin/a、/admin/a/b
ShiroFilterFactoryBean 過濾器
- anon:匿名過濾器,無需認證就可以訪問。例:/statics/**= anon 表示 statics 目錄下所有資源都能訪問
- authc:必須認證了才能訪問,否則跳轉到登錄頁面。例:/unauthor.jsp= authc 如果用戶沒有登錄就訪問 unauthor.jsp,則直接跳轉到登錄頁面
- user:必須通過記住我功能通過或認證通過才能訪問
- perms:擁有對某個資源的權限才能訪問。例:/statics/** = perms["user:add:*,user:modify:*"] 表示訪問 statics 目錄下的資源時只有新增和修改的權限
- roles:擁有某個角色權限才能訪問。例:/welcom.jsp = roles[admin] 表示訪問 welcom.jsp 頁面時會檢查是否擁有 admin 角色
ShiroFilterFactoryBean 過濾器分類
- 認證過濾器:anon、authcBasic、auchc、user、logout
- 授權過濾器:perms、roles、ssl、rest、port
前端頁面
登錄頁面 login.html
<!DOCTYPE html> <html lang="en" xmlns:th="http://www.thymeleaf.org"> <head> <meta charset="UTF-8"> <title>登錄</title> <link rel="shortcut icon" type="image/x-icon" th:href="@{/img/favicon.ico}" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" /> </head> <body> <form action="" method="post"> <p> 賬號: <label><input type="text" class="username" name="username"></label> </p> <p> 密碼: <label><input type="text" class="password" name="password"></label> </p> <p> <label><input id="checkbox1" type="checkbox" name="rememberMe"></label>記住我 </p> <p><button type="button" class="loginBtn">登錄</button></p> </form> </body> <script type="text/javascript" th:src="@{/jquery/jquery-3.3.1.min.js}"></script> <script type="text/javascript" th:src="@{/layer/layer.js}"></script><!--layui的彈出層--> <script type="text/javascript"> $(document).ready(function () { $('.loginBtn').on('click', function () { // 登錄按鈕 const username = $('.username').val(); const password = $('.password').val(); $.ajax({// 用戶登錄 type: 'post', url: '/user/doLogin', dataType: 'json', data: ({ 'username': username, 'password': password }), success: function (resp) { console.log(resp); if (resp.code !== 200) { layer.msg(resp.message, function () {// layui的彈窗 }); } else if (resp.code === 200) { window.location.href = 'http://127.0.0.1:8080'+ resp.action; } }, error: function () {// 此處添加錯誤處理 layer.open({ title: '提示信息', content: '后臺訪問錯誤,請聯系管理員', skin: 'layui-layer-molv', icon: 0 }); } }); }); }); </script> </html>
首頁頁面 index.html
<!DOCTYPE html> <html lang="en" xmlns:th="http://www.thymeleaf.org"> <head> <meta charset="UTF-8"> <title>首頁</title> <link rel="shortcut icon" type="image/x-icon" th:href="@{/img/favicon.ico}" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" /> </head> <body> <h1>首頁</h1> <a th:href="@{/user/add}" rel="external nofollow" >add</a> | <a th:href="@{/user/update}" rel="external nofollow" >update</a><br> <a th:href="@{/user/logout}" rel="external nofollow" rel="external nofollow" rel="external nofollow" >退出登錄</a> </body> </html>
添加頁面 add.html
<!DOCTYPE html> <html lang="en" xmlns:th="http://www.thymeleaf.org"> <head> <meta charset="UTF-8"> <title>add</title> <link rel="shortcut icon" type="image/x-icon" th:href="@{/img/favicon.ico}" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" /> </head> <body> <h1>add</h1><br> <a th:href="@{/user/logout}" rel="external nofollow" rel="external nofollow" rel="external nofollow" >退出登錄</a> </body> </html>
更新頁面 update.html
<!DOCTYPE html> <html lang="en" xmlns:th="http://www.thymeleaf.org"> <head> <meta charset="UTF-8"> <title>update</title> <link rel="shortcut icon" type="image/x-icon" th:href="@{/img/favicon.ico}" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" /> </head> <body> <h1>update</h1><br> <a th:href="@{/user/logout}" rel="external nofollow" rel="external nofollow" rel="external nofollow" >退出登錄</a> </body> </html>
未授權頁面 unauthorized.html
<!DOCTYPE html> <html lang="en" xmlns:th="http://www.thymeleaf.org" xmlns="http://www.w3.org/1999/html"> <head> <meta charset="UTF-8"> <title>未授權</title> <link rel="shortcut icon" type="image/x-icon" th:href="@{/img/favicon.ico}" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" rel="external nofollow" /> </head> <body> <p1>未授權,無法訪問此頁面</p1></br> <a th:href="@{/user/index}" rel="external nofollow" >回到上一頁</a> </body> </html>
controller 控制器
鑒于文章篇幅,這里只展示主要的邏輯代碼
@Controller @RequestMapping(path = "/user") @Slf4j public class UserController { @GetMapping(path = "/login") public String login() { return "login"; } @GetMapping(path = "/index") public String index() { return "index"; } @GetMapping(path = "/add") public String add() { return "add"; } @GetMapping(path = "/update") public String update() { return "update"; } // 未授權頁面 @GetMapping(path = "/unauthorized") public String unauthorized() { return "unauthorized"; } // 用戶登錄 @PostMapping(path = "/doLogin") @ResponseBody public ResultMap doLogin(@NotNull @Valid User user, @NotNull BindingResult bindingResult) { // ------參數校驗------ if (bindingResult.hasErrors()) { String message = Objects.requireNonNull(bindingResult.getFieldError()).getDefaultMessage(); log.info("校驗的message信息為:" + message); return new ResultMap().fail().message(message); } // 將用戶名,密碼交給shiro UsernamePasswordToken token = new UsernamePasswordToken(user.getUsername(), user.getPassword()); String msg; try { // shiro幫我們匹配密碼什么的,我們只需要把東西傳給它,它會根據我們在UserRealm里認證方法設置的來驗證 Subject subject = SecurityUtils.getSubject(); subject.login(token); return new ResultMap().success().action("/user/index"); } catch (AuthenticationException e) { if (e instanceof IncorrectCredentialsException) { msg = "密碼錯誤"; } else if (e instanceof LockedAccountException) { msg = "用戶被禁用"; } else if (e instanceof UnknownAccountException) { msg = "用戶不存在"; } else { msg = "用戶認證失敗"; } } return new ResultMap().error().message(msg); } // 用戶退出登錄 @GetMapping(path = "/logout") public String logout() { SecurityUtils.getSubject().logout(); return "login"; } }
shiro 注解
在 contrller 的這些方法中,也可以使用 shiro 提供的一些注解來校驗用戶,認證用戶。不過個人認為使用這些注解有點麻煩(因為有些注解會拋出異常,然后再 controller 層還要捕獲異常),所以我在 ShiroConfig 配置類中進行了配置
- @RequiresAuthentication:表示當前 Subject 已經通過 login 進行了身份驗證;即 Subject.isAuthenticated() 返回 true
- @RequiresUser:表示當前 Subject 已經通過身份驗證或者通過記住我進行登錄的
- @RequiresGuest:表示當前 Subject 沒有身份驗證或通過記住我登錄過,即是游客身份
- @RequiresRoles(value={“admin”, “user”}, logical= Logical.AND):表示當前 Subject 需要角色 admin 和 user。如果當前 Subject 不同時 擁有所有指定角色,則方法不會執行還會拋出 AuthorizationException 異常
- @RequiresPermissions(value={“user:a”, “user:b”}, logical= Logical.OR):表示當前 Subject 需要權限 user:a 或 user:b。如果當前 Subject 不具有這樣的權限,則方法不會被執行
測試
啟動項目,首先進入登錄頁面 login.html,如下
我們分別以數據庫中的 {jack,111111} 和 {Tom,123123} 賬號與密碼進行測試
測試一
首先使用 {jack,111111} 來進行登錄,如下
進入首頁頁面,如下
我們在接著查看控制臺日志,如下
我們看到首頁頁面有兩個超鏈接頁面,以用戶 jack 的身份分別進入兩個頁面。首先進入 add.html 頁面,如下
說明用戶 jack 擁有訪問 add.html 的權限,此時在查看控制臺日志,如下
注意查看用戶 jack 的數據,他的權限只有 user/add 和 user/list,是沒有 user/update 權限的,也就是沒有權限訪問 update.html 頁面的??梢则炞C,我們再以用戶 jack 的身份進入 update.html 頁面,如下
關于測試,到此為止。當然,依然可以使用其他的數據在進行測試
小結
shiro 最為關鍵的就是 realm 了,繼承 AuthorizingRealm,然后重寫兩個方法
- doGetAuthorizationInfo(): 權限認證。即登錄過后,每個用戶的身份不一樣,對應的所能看的頁面也不一樣,也就是擁有的權限也不一樣
- doGetAuthenticationInfo():身份認證。即登錄通過賬號和密碼驗證登陸人的身份信息
在 controller 中的核心登錄操作,就是將前端頁面用戶的登錄數據(如賬號,密碼)交給 UsernamePasswordToken,然后使用當前的 Subject 對象調用 login(token) 方法即可,如下
// 將用戶名,密碼交給shiro UsernamePasswordToken token = new UsernamePasswordToken(user.getUsername(), user.getPassword()); // shiro幫我們匹配密碼什么的,我們只需要把東西傳給它,它會根據我們在UserRealm里認證方法設置的來驗證 Subject subject = SecurityUtils.getSubject(); subject.login(token);
