最近業務需求，要求實現一個3D星球環繞效果，經過百般查找，終于找到了這個功能。

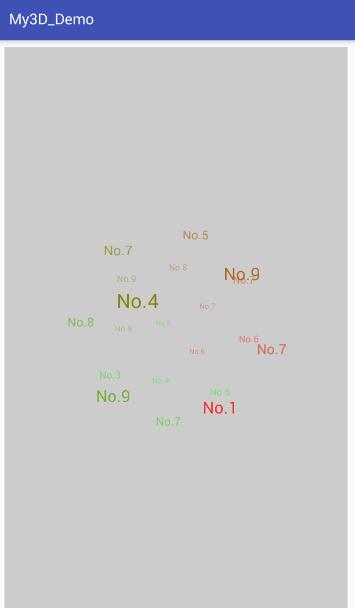

來先看看效果圖：
首先還是添加第三方依賴庫：
|
1
|
compile 'com.moxun:tagcloudlib:1.1.0' |
布局：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
<?xml version="1.0" encoding="utf-8"?> <android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context="com.example.administrator.my3d_demo.MainActivity"> <com.moxun.tagcloudlib.view.TagCloudView android:id="@+id/tag_cloud" android:layout_width="match_parent" android:layout_height="match_parent" android:layout_margin="10dp" app:autoScrollMode="uniform" app:darkColor="#ff00ff00" app:lightColor="#ffff0000" app:radiusPercent="0.5" app:scrollSpeed="3" /> </android.support.constraint.ConstraintLayout> |
MainActivity代碼：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
|
package com.example.administrator.my3d_demo; import android.graphics.Color; import android.support.v7.app.AppCompatActivity; import android.os.Bundle; import com.moxun.tagcloudlib.view.TagCloudView; public class MainActivity extends AppCompatActivity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); TagCloudView tagCloudView = (TagCloudView) findViewById(R.id.tag_cloud); tagCloudView.setBackgroundColor(Color.LTGRAY); TextTagsAdapter tagsAdapter = new TextTagsAdapter(new String[20]); tagCloudView.setAdapter(tagsAdapter); } } |
一個適配器代碼：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
|
package com.example.administrator.my3d_demo; import android.content.Context; import android.support.annotation.NonNull; import android.util.Log; import android.view.Gravity; import android.view.View; import android.view.ViewGroup; import android.widget.TextView; import com.moxun.tagcloudlib.view.TagsAdapter; import java.util.ArrayList; import java.util.Collections; import java.util.List; import java.util.Random; public class TextTagsAdapter extends TagsAdapter { private List<String> dataSet = new ArrayList<>(); public TextTagsAdapter(@NonNull String... data) { dataSet.clear(); Collections.addAll(dataSet, data); } @Override public int getCount() { return dataSet.size(); } @Override public View getView(final Context context, final int position, ViewGroup parent) { String[] name = {"1", "2", "3", "4", "5", "6", "7", "8", "9"}; /*int[] name={R.mipmap.ic_launcher,R.mipmap.ic_launcher,R.mipmap.ic_launcher, R.mipmap.ic_launcher,R.mipmap.ic_launcher,R.mipmap.ic_launcher, R.mipmap.ic_launcher,R.mipmap.ic_launcher,R.mipmap.ic_launcher};*/ Random rand = new Random(); int randNum = rand.nextInt(9); TextView tv = new TextView(context); ViewGroup.MarginLayoutParams lp = new ViewGroup.MarginLayoutParams(100, 100); tv.setLayoutParams(lp); tv.setText("No." + name[randNum]); tv.setGravity(Gravity.CENTER); tv.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { Log.e("Click", "Tag " + position + " clicked."); } }); return tv; } @Override public Object getItem(int position) { return dataSet.get(position); } @Override public int getPopularity(int position) { return position % 7; } @Override public void onThemeColorChanged(View view, int themeColor) { ((TextView) view).setTextColor(themeColor); } } |
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
原文鏈接：https://blog.csdn.net/MrZhao_PerfectCode/article/details/80487414
