上篇文章給大家介紹了使用docker compose安裝FastDfs文件服務器的實例詳解
今天給大家介紹如何使用 docker compose 搭建 fastDFS文件服務器，內容詳情如下所示：
平臺 ：Mac M1
備注：關于 IP Address
關于 docker 的網絡模式，上述文中提到了 docker 的 Host 模式：
如果啟動容器的時候使用host模式，那么這個容器將不會獲得一個獨立的Network Namespace，而是和宿主機共用一個 Network Namespace。容器將不會虛擬出自己的網卡，配置自己的 IP 等，而是使用宿主機的 IP 和端口。但是，容器的其他方面，如文件系統、進程列表等還是和宿主機隔離的。
問題在于：使用宿主機的 IP 和端口的話，配置文件中 IP 填寫 localhost的話按理說能訪問到容器，然而事實上卻不行。個人理解（如果理解有問題的話煩請指正）的 IP Address填寫方法如下：
啟動 tracker 時控制臺輸出：

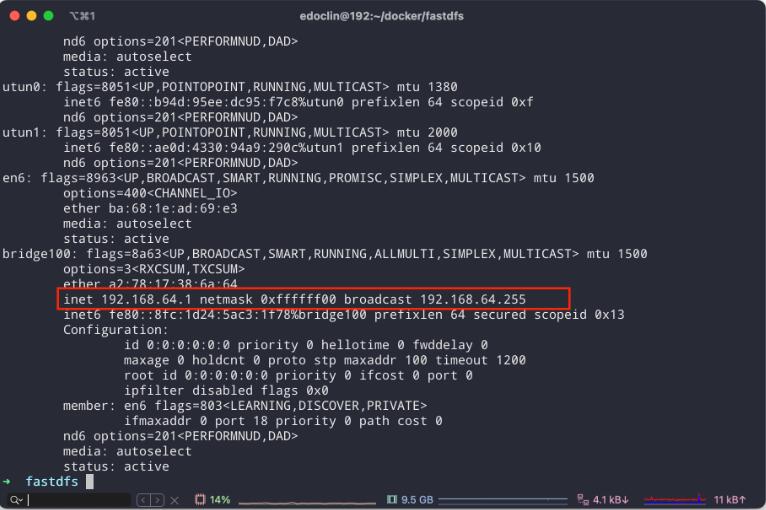

192.168.64.2的網絡為：

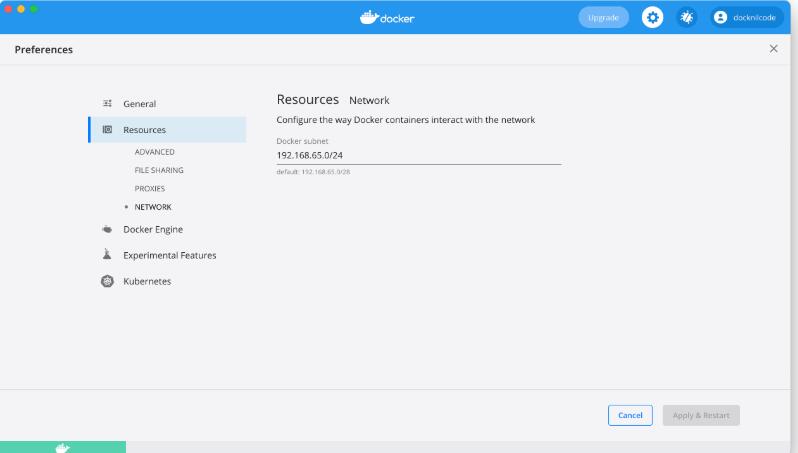

192.168.65.4的網絡為：
文件目錄
|
1
2
3
4
5
6
7
8
9
|
├── docker-compose.yaml├── nginx│ └── nginx.conf├── storage│ └── data└── tracker│ └── conf│ └── client.conf└── store_path |
./docker-compose.yaml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
|
version: "2"services: fastdfs-tracker: hostname: fastdfs-tracker container_name: fastdfs-tracker image: season/fastdfs:1.2 network_mode: "host" command: tracker volumes: - ./tracker/data:/fastdfs/tracker/data - ./tracker/conf:/etc/fdfs fastdfs-storage: hostname: fastdfs-storage container_name: fastdfs-storage image: season/fastdfs:1.2 network_mode: "host" volumes: - ./storage/data:/fastdfs/storage/data - ./store_path:/fastdfs/store_path environment: - TRACKER_SERVER=192.168.64.2:22122 command: storage depends_on: - fastdfs-tracker fastdfs-nginx: hostname: fastdfs-nginx container_name: fastdfs-nginx image: season/fastdfs:1.2 network_mode: "host" volumes: - ./nginx/nginx.conf:/etc/nginx/conf/nginx.conf - ./store_path:/fastdfs/store_path environment: - TRACKER_SERVER=192.168.64.2:22122 command: nginx |
./tracker/conf/client.conf
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
|
# connect timeout in seconds# default value is 30sconnect_timeout=30# network timeout in seconds# default value is 30snetwork_timeout=60# the base path to store log filesbase_path=/fastdfs/client# tracker_server can ocur more than once, and tracker_server format is# "host:port", host can be hostname or ip address# 需要修改此處 iptracker_server=192.168.64.2:22122#standard log level as syslog, case insensitive, value list:### emerg for emergency### alert### crit for critical### error### warn for warning### notice### info### debuglog_level=info# if use connection pool# default value is false# since V4.05use_connection_pool = false# connections whose the idle time exceeds this time will be closed# unit: second# default value is 3600# since V4.05connection_pool_max_idle_time = 3600# if load FastDFS parameters from tracker server# since V4.05# default value is falseload_fdfs_parameters_from_tracker=false# if use storage ID instead of IP address# same as tracker.conf# valid only when load_fdfs_parameters_from_tracker is false# default value is false# since V4.05use_storage_id = false# specify storage ids filename, can use relative or absolute path# same as tracker.conf# valid only when load_fdfs_parameters_from_tracker is false# since V4.05storage_ids_filename = storage_ids.conf#HTTP settingshttp.tracker_server_port=80#use "#include" directive to include HTTP other settiongs##include http.conf |
./nginx/nginx.conf
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
|
#user nobody;worker_processes 1;#error_log logs/error.log;#error_log logs/error.log notice;#error_log logs/error.log info;#pid logs/nginx.pid;events { worker_connections 1024;}http { include mime.types; default_type application/octet-stream; #log_format main '$remote_addr - $remote_user [$time_local] "$request" ' # '$status $body_bytes_sent "$http_referer" ' # '"$http_user_agent" "$http_x_forwarded_for"'; #access_log logs/access.log main; sendfile on; #tcp_nopush on; #keepalive_timeout 0; keepalive_timeout 65; #gzip on; server { listen 9800; server_name localhost; #charset koi8-r; #access_log logs/host.access.log main; # 修改部分 location / { root /fastdfs/store_path/data; ngx_fastdfs_module; } #error_page 404 /404.html; # redirect server error pages to the static page /50x.html # error_page 500 502 503 504 /50x.html; location = /50x.html { root html; } }} |
SpringBoot 集成 fastDFS
添加依賴
|
1
2
3
4
5
|
<dependency> <groupId>com.github.tobato</groupId> <artifactId>fastdfs-client</artifactId> <version>1.27.2</version></dependency> |
applicaiton.yaml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
# 分布式文件系統配置fdfs: #根據自己的ip進行更改 ip: 192.168.64.2 #socket連接超時時長 soTimeout: 1500 connectTimeout: 600 #支持多個 trackerList: - ${fdfs.ip}:22122 # fastDFS 中的 nginx 的 ip 和 port # IDEA 提示使用 https, # nginx 配置 SSL 請移步： web-server-url: http://${fdfs.ip}:9800/ |
FastDFSConfig.java
|
1
2
3
4
5
6
7
|
@Configuration// 導入FastDFS-Client組件@Import(FdfsClientConfig.class)// 解決jmx重復注冊bean的問題@EnableMBeanExport(registration = RegistrationPolicy.IGNORE_EXISTING)public aspect FastDFSConfig {} |
FastDFSUtil.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
|
@Componentpublic class FastDFSUtil { @Resource private FastFileStorageClient fastFileStorageClient; @Resource private FdfsWebServer fdfsWebServer; public String uploadFile(MultipartFile file) throws IOException { StorePath storePath = fastFileStorageClient.uploadFile(file.getInputStream(), file.getSize(), FilenameUtils.getExtension(file.getOriginalFilename()), null); String fullPath = storePath.getFullPath(); getResAccessUrl(fullPath); return fullPath; } public String uploadFile(File file) { try { FileInputStream inputStream = new FileInputStream(file); StorePath storePath = fastFileStorageClient.uploadFile(inputStream, file.length(), FilenameUtils.getExtension(file.getName()), null); return storePath.getFullPath(); } catch (Exception e) { e.printStackTrace(); return null; } } public byte[] downloadFile(String filePath) { StorePath storePath = StorePath.parseFromUrl(filePath); return fastFileStorageClient.downloadFile(storePath.getGroup(), storePath.getPath(), new DownloadByteArray()); } public Boolean deleteFile(String filePath) { if (StringUtils.isEmpty(filePath)) { return false; } try { StorePath storePath = StorePath.parseFromUrl(filePath); fastFileStorageClient.deleteFile(storePath.getGroup(), storePath.getPath()); } catch (Exception e) { e.printStackTrace(); return false; } return true; } /** * 封裝文件完整 URL 地址 * * @param path * @return */ public String getResAccessUrl(String path) { return fdfsWebServer.getWebServerUrl() + path; }} |
FastDFSController.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
|
@RestController@RequestMapping("/fast-dfs")public class FastDFSController { /** * @param file * @return * @throws IOException */ @PostMapping("") @Transactional public void uploadFile(MultipartFile file, String cuisineId) throws IOException { String s = fastDfsUtil.uploadFile(file); String resAccessUrl = fastDfsUtil.getResAccessUrl(s); } /** * @param response * @throws IOException */ @GetMapping("") public void downloadFile(String filePath, HttpServletResponse response) throws IOException { byte[] bytes = fastDfsUtil.downloadFile(filePath); String[] split = filePath.split("/"); String fileName = split[split.length - 1]; // 設置強制下載不打開 response.setContentType("application/force-download"); fileName = URLEncoder.encode(fileName, StandardCharsets.UTF_8); response.setHeader("Content-Disposition", "attachment;filename=" + fileName); IOUtils.write(bytes, response.getOutputStream()); } /** * 流媒體的方式播放視頻，只能從頭看到尾，不能手動點擊重新看已經看過的內容 * @param filePath * @param response * @throws IOException */ @GetMapping("/play") public void streamMedia(String filePath, HttpServletResponse response) throws IOException { byte[] bytes = fastDfsUtil.downloadFile(filePath); IOUtils.copy(new ByteArrayInputStream(bytes), response.getOutputStream()); response.flushBuffer(); }} |
到此這篇關于如何使用 docker compose 搭建 fastDFS文件服務器的文章就介紹到這了,更多相關docker compose 搭建 fastDFS內容請搜索服務器之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持服務器之家！
原文鏈接：https://www.cnblogs.com/edoclin/p/14648832.html
