spring security
spring security是一個能夠為基于spring的企業應用系統提供聲明式的安全訪問控制解決方案的安全框架。它提供了一組可以在spring應用上下文中配置的bean，充分利用了spring ioc，di（控制反轉inversion of control ,di:dependency injection 依賴注入）和aop（面向切面編程）功能，為應用系統提供聲明式的安全訪問控制功能，減少了為企業系統安全控制編寫大量重復代碼的工作。
下載：https://github.com/whyalwaysmea/Spring-Security
本文重點給大家介紹springsecurity實現圖形驗證碼功能，具體內容如下：
1.開發生成圖形驗證碼接口
-> 封裝imagecode對象，來存放圖片驗證碼的內容、圖片以及有效時間
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
|
public class imagecode { private bufferedimage image;// 圖片 private string code;// 驗證碼 private localdatetime expiretime;// 有效時間 public imagecode(bufferedimage image, string code, int expirein) { this.image = image; this.code = code; // 出入一個秒數，自動轉為時間，如過期時間為60s，這里的expirein就是60，轉換為當前時間上加上這個秒數 this.expiretime = localdatetime.now().plusseconds(expirein); } public imagecode(bufferedimage image, string code, localdatetime expiretime) { this.image = image; this.code = code; this.expiretime = expiretime; } public bufferedimage getimage() { return image; } public void setimage(bufferedimage image) { this.image = image; } public string getcode() { return code; } public void setcode(string code) { this.code = code; } public localdatetime getexpiretime() { return expiretime; } public void setexpiretime(localdatetime expiretime) { this.expiretime = expiretime; }} |
-> 寫一個controller用于生成圖片和校驗驗證碼
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
|
public class validatecodecontroller { private static final string session_key = "session_key_image_code"; private sessionstrategy sessionstrategy = new httpsessionsessionstrategy()； @getmapping("/code/image") public void createcode(httpservletrequest request, httpservletresponse response) throws ioexception { // 根據隨機數生成圖片 imagecode imagecode = createimagecode(request); // 將隨機數存到session中 sessionstrategy.setattribute(new servletwebrequest(request), session_key, imagecode); // 將生成的圖片寫到接口的響應中 imageio.write(imagecode.getimage(), "jpeg", response.getoutputstream()); } private imagecode createimagecode(httpservletrequest request) { // 圖片的寬高（像素） int width = 67; int height = 23; // 生成圖片對象 bufferedimage image = new bufferedimage(width, height, bufferedimage.type_int_rgb); graphics g = image.getgraphics(); // 生成隨機條紋干擾 random random = new random(); g.setcolor(getrandcolor(200, 250)); g.fillrect(0, 0, width, height); g.setfont(new font("times new roman", font.italic, 20)); g.setcolor(getrandcolor(160, 200)); for (int i = 0; i < 155; i++) { int x = random.nextint(width); int y = random.nextint(height); int xl = random.nextint(12); int yl = random.nextint(12); g.drawline(x, y, xl, yl); } // 生成四位隨機數 string srand = ""; for (int i = 0; i < 4; i++) { string rand = string.valueof(random.nextint(10)); srand += rand; g.setcolor(new color(20 + random.nextint(110), 20 + random.nextint(110), 20 + random.nextint(110))); g.drawstring(rand, 13 * i + 6, 16); } g.dispose(); // 60秒有效 return new imagecode(image, srand, 60); } /** * 生成隨機背景條紋 * @param fc * @param bc * @return */ private color getrandcolor(int fc, int bc) { random random = new random(); if(fc > 255) { fc = 255; } if(bc > 255) { bc = 255; } int r = fc + random.nextint(bc - fc); int g = fc + random.nextint(bc - fc); int b = fc + random.nextint(bc - fc); return new color(r, g, b); }} |
第一步：根據隨機數生成圖片
|
1
|
imagecode imagecode = createimagecode(request); |
第二步：將隨機數存到session中
|
1
|
sessionstrategy.setattribute(new servletwebrequest(request), session_key, imagecode); |
第三步：將生成的圖片寫到接口的響應中
|
1
|
imageio.write(imagecode.getimage(), “jpeg”, response.getoutputstream()); |
-> 在靜態頁面中加入圖片驗證碼的標簽
|
1
2
3
4
5
6
7
|
<tr> <td>圖形驗證碼：</td> <td> <input type="text" name="imagecode"> <img src="/code/image"> </td></tr> |
-> 將接口請求地址配進認證
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
@overrideprotected void configure(httpsecurity http) throws exception { http.formlogin() .loginpage("/authencation/require") .loginprocessingurl("/authentication/form") .successhandler(imoocauthenticationsuccesshandler) .failurehandler(imoocauthenticationfailurehandler) .and() .authorizerequests() .antmatchers("/authencation/require", securitypropertis.getbrowserpropertis().getloginpage(), "/code/image").permitall() // 加入"/code/image"地址 .anyrequest() .authenticated() .and() .csrf().disable();} |

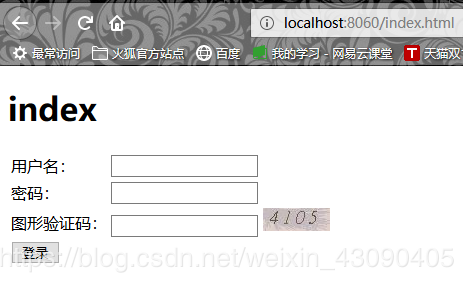

->啟動服務器訪問靜態表單
如圖所示：
2.在認證流程中加入圖形驗證碼校驗
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
|
-> 寫一個filter進行攔截public class validatecodefilter extends onceperrequestfilter{ private authenticationfailurehandler authenticationfailurehandler; private sessionstrategy sessionstrategy = new httpsessionsessionstrategy()； @override protected void dofilterinternal(httpservletrequest request, httpservletresponse response, filterchain filterchain) throws servletexception, ioexception { //如果訪問的是/authentication/form并且為post請求 if(stringutils.equals("/authentication/form", request.getrequesturi()) && stringutils.equals(request.getmethod(), "post")) { try { // 驗證圖片驗證碼是否填寫正確 validate(new servletwebrequest(request)); } catch (validatecodeexception e) { // 拋出異常，并返回，不再訪問資源 authenticationfailurehandler.onauthenticationfailure(request, response, e); return; } } // 通過，執行后面的filter filterchain.dofilter(request, response); } // 校驗驗證碼的邏輯 private void validate(servletwebrequest request) throws servletrequestbindingexception { imagecode codeinsession = (imagecode) sessionstrategy.getattribute(request, validatecodecontroller.session_key); string codeinrequest = servletrequestutils.getstringparameter(request.getrequest(), "imagecode"); if(stringutils.isblank(codeinrequest)) { throw new validatecodeexception("驗證碼的值不能為空"); } if(codeinsession == null){ throw new validatecodeexception("驗證碼不存在"); } if(codeinsession.isexpried()) { sessionstrategy.removeattribute(request, validatecodecontroller.session_key); throw new validatecodeexception("驗證碼已過期"); } if(!stringutils.equals(codeinsession.getcode(), codeinrequest)) { throw new validatecodeexception("驗證碼不匹配"); } sessionstrategy.removeattribute(request, validatecodecontroller.session_key); } public authenticationfailurehandler getauthenticationfailurehandler() { return authenticationfailurehandler; } public void setauthenticationfailurehandler(authenticationfailurehandler authenticationfailurehandler) { this.authenticationfailurehandler = authenticationfailurehandler; } public sessionstrategy getsessionstrategy() { return sessionstrategy; } public void setsessionstrategy(sessionstrategy sessionstrategy) { this.sessionstrategy = sessionstrategy; }} |
-> 配置再configure中，生效
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
|
@overrideprotected void configure(httpsecurity http) throws exception { // 聲明filter validatecodefilter validatecodefilter = new validatecodefilter(); // 配置驗證失敗執行的handler validatecodefilter.setauthenticationfailurehandler(imoocauthenticationfailurehandler); // 添加filter到認證流程 http.addfilterbefore(validatecodefilter, usernamepasswordauthenticationfilter.class) .formlogin() .loginpage("/authencation/require") .loginprocessingurl("/authentication/form") .successhandler(imoocauthenticationsuccesshandler) .failurehandler(imoocauthenticationfailurehandler) .and() .authorizerequests() .antmatchers("/authencation/require", securitypropertis.getbrowserpropertis().getloginpage(), "/code/image").permitall() .anyrequest() .authenticated() .and() .csrf().disable();} |
至此，圖片驗證碼驗證流程已經全部完成。
啟動服務，進行測試即可。
