harbor安裝那里還是很簡單,就是在docker login那里掉坑里去了,搞半天,寫博客的時候,又重新安裝了一遍
1.準備兩臺服務器
- centos7
- harbor 10.19.46.15
- client 10.19.44.31
2.harbor需要安裝docker和docker-composere,client只需要安裝docker
docker安裝
|
1
2
3
4
|
yum install -y yum-utils device-mapper-persistent-data lvm2yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repoyum -y install docker-cesystemctl start docker |
docker compose 安裝
|
1
2
3
4
5
|
docker compose 安裝yum install epel-releaseyum install -y python-pippip install docker-composeyum install git |

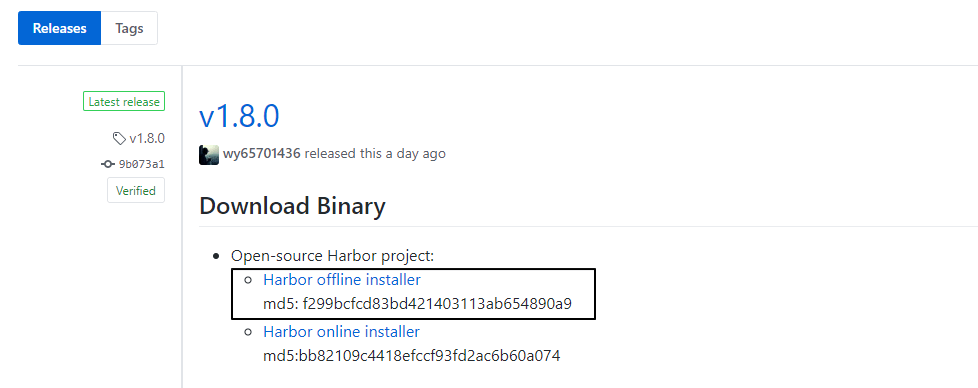

harbor1.8 下載
https://github.com/goharbor/harbor/releases
解壓出來
|
1
2
3
4
5
6
|
[root@harbor harbor]# ll總用量 32-rw-r--r--. 1 root root 4519 5月 21 15:59 harbor.yml-rwxr-xr-x. 1 root root 5088 5月 21 15:59 install.sh-rw-r--r--. 1 root root 11347 5月 21 15:59 license-rwxr-xr-x. 1 root root 1654 5月 21 15:59 prepare |
修改harbor.yml
hostname 這里設置本機的ip
harbor_admin_password web頁面的密碼
運行
|
1
|
sh ./install.sh |
安裝成功
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
......status: downloaded newer image for goharbor/harbor-registryctl:v1.8.0creating harbor-log ... donecreating harbor-db ... donecreating registry ... donecreating redis ... donecreating registryctl ... donecreating harbor-core ... donecreating harbor-jobservice ... donecreating harbor-portal ... donecreating nginx ... done? ----harbor has been installed and started successfully.----now you should be able to visit the admin portal at http://10.19.46.15. for more details, please visit https://github.com/goharbor/harbor . |

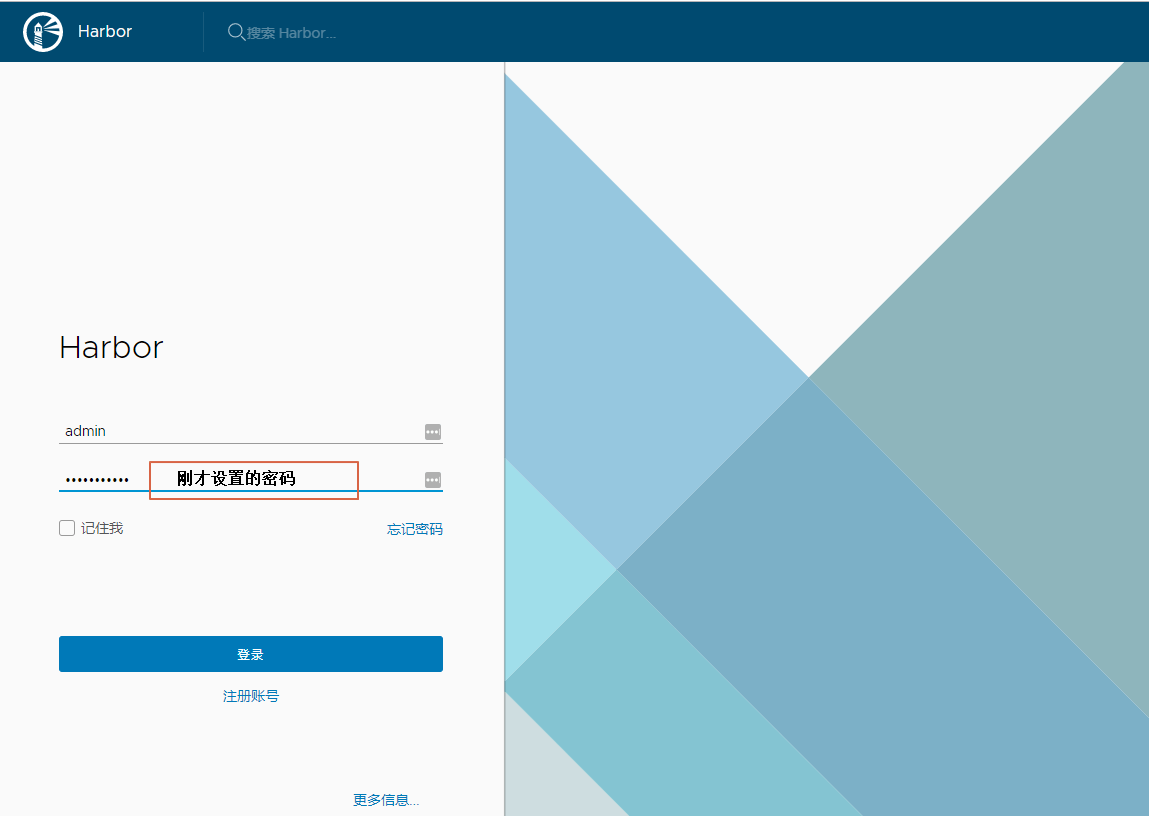

訪問頁面
http://10.19.46.15
如果想要停止,或者是服務器重啟了,需要手動重啟,在harbor的安裝目錄,里執行命令
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
|
[root@harbor harbor]# ll總用量 40drwxr-xr-x. 3 root root 20 5月 22 22:24 common-rw-r-----. 1 root root 5183 5月 22 22:24 docker-compose.yml-rw-r--r--. 1 root root 4514 5月 22 22:23 harbor.yml-rwxr-xr-x. 1 root root 5088 5月 21 15:59 install.sh-rw-r--r--. 1 root root 11347 5月 21 15:59 license-rwxr-xr-x. 1 root root 1654 5月 21 15:59 prepare# 停止[root@harbor harbor]# docker-compose stopstopping nginx ... donestopping harbor-portal ... donestopping harbor-jobservice ... donestopping harbor-core ... donestopping registryctl ... donestopping redis ... donestopping registry ... donestopping harbor-db ... donestopping harbor-log ... done# 運行[root@harbor harbor]# docker-compose startstarting log ... donestarting postgresql ... donestarting redis ... donestarting registry ... donestarting core ... donestarting jobservice ... donestarting portal ... donestarting proxy ... donestarting registryctl ... done |
在另外一個服務器(client)登錄harbor
|
1
2
3
4
|
[root@client ~]# docker login 10.19.46.15username: adminpassword: error response from daemon: get https://10.19.46.15/v2/: dial tcp 10.19.46.15:443: connect: connection refused |
這是因為docker1.3.2版本開始默認docker registry使用的是https，我們設置harbor默認http方式，所以當執行用docker login、pull、push等命令操作非https的docker regsitry的時就會報錯。
解決https

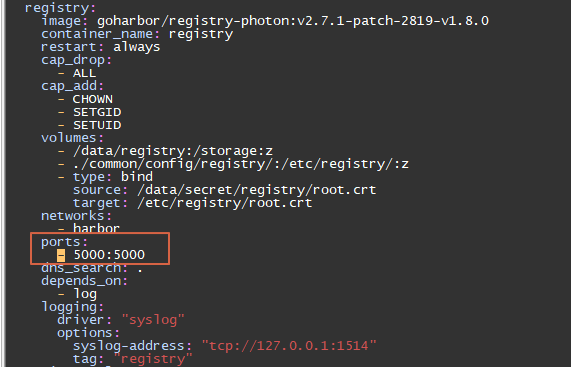

在harbor那臺服務器,在harbor的安裝目錄
|
1
|
vim docker-compose.yml |
然后同時編輯harbor和client的docker配置文件,10.19.46.15 是harbor的ip地址
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
# 1.vim /etc/docker/daemon.json{ "insecure-registries": [ "10.19.46.15" ]}# 2.添加execstart=/usr/bin/dockerd |--insecure-registry=10.19.46.15vim /usr/lib/systemd/system/docker.service# 把這行注釋掉,添加下面的配置 execstart=/usr/bin/dockerd -h fd:// --containerd=/run/containerd/containerd.sockexecstart=/usr/bin/dockerd |--insecure-registry=10.19.46.15 |
1.重啟harbor 的 docker-compose,命令文上有
2.重啟docker
|
1
2
|
systemctl daemon-reloadsystemctl restart docker |
client 登錄倉庫
|
1
2
3
4
5
6
7
|
[root@client ~]# docker login 10.19.46.15 username: adminpassword: warning! your password will be stored unencrypted in /root/.docker/config.json.configure a credential helper to remove this warning. seehttps://docs.docker.com/engine/reference/commandline/login/#credentials-storelogin succeeded |
偷工減料

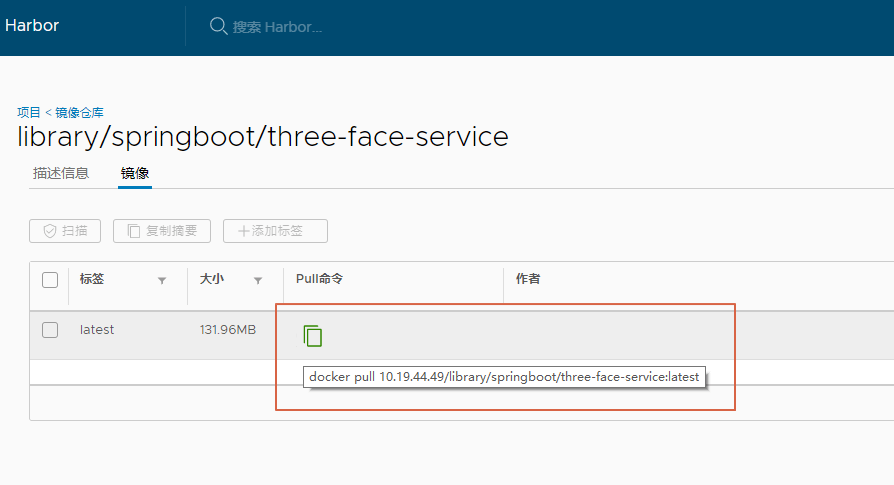

pull 的命令

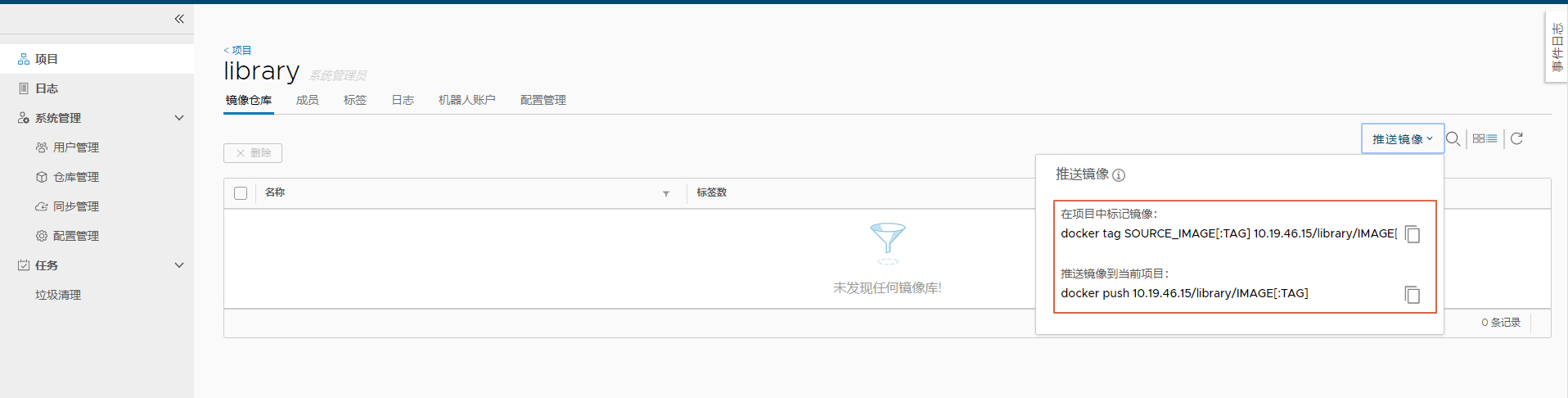

推送和打tag的命令
