雙向多對多關聯映射原理:
假設，一個員工可能有多個角色，一個角色可能有多個員工，從員工或角色的角度看，這就是多對多的關系，不管從哪一個角度看，都是多對多的聯系。多對多關聯映射關系一般采用中間表的形式來實現，即新增一種包含關聯雙方主鍵的表。實現多對多關聯關系，在數據庫底層通過添加中間表指定關聯關系，而在hibernate框架在雙方的實體中添加一個保存對方的集合，在雙方的映射文件中使用<set>元素和<many-to-many>元素進行關聯關系的配置。
如下圖所示：
(1)XML版
Role類:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
|
package Hibernate_demo1.Demo15.Entity; import java.util.Set; public class Role { private String id; private String rame; private Set<User> users; public String getId() { return id; } public void setId(String id) { this.id = id; } public String getRame() { return rame; } public void setRame(String rame) { this.rame = rame; } public Set<User> getUsers() { return users; } public void setUsers(Set<User> users) { this.users = users; } } |
User類:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
|
package Hibernate_demo1.Demo15.Entity; import java.util.Set; public class User { private String id; private String uname; private Set<Role> roles; public String getId() { return id; } public void setId(String id) { this.id = id; } public String getUname() { return uname; } public void setUname(String uname) { this.uname = uname; } public Set<Role> getRoles() { return roles; } public void setRoles(Set<Role> roles) { this.roles = roles; } } |
Role.hbm.xml映射類:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
<?xml version="1.0"?> <!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN" "http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd"> <hibernate-mapping> <class name="Hibernate_demo1.Demo15.Entity.Role" table="role"> <id name="id" type="java.lang.String"> <column name="id"/> <generator class="uuid"> </generator> </id> <property name="rame" column="rname"/> <set name="users" table="user_role"> <key column="roleid"></key> <many-to-many class="Hibernate_demo1.Demo15.Entity.User" column="userid"></many-to-many> </set> </class> </hibernate-mapping> |
User.hbm.xml映射類:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
<?xml version="1.0"?> <!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN" "http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd"> <hibernate-mapping> <class name="Hibernate_demo1.Demo15.Entity.User" table="user"> <id name="id"> <generator class="uuid"> </generator> </id> <property name="uname" column="uname"/> <set name="roles" table="user_role"> <key column="userid"/> <many-to-many class="Hibernate_demo1.Demo15.Entity.Role" column="roleid" /> </set> </class> </hibernate-mapping> |
測試類:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
|
package Hibernate_demo1.Demo15; import java.util.HashSet; import java.util.Set; import org.hibernate.Session; import Hibernate_demo1.Demo15.Entity.Role; import Hibernate_demo1.Demo15.Entity.User; import Hibernate_demo1.Demo15.Util.HibernateUtils; public class App { public static void main( String[] args ) { Session session = null; try{ session = HibernateUtils.getSession(); session.beginTransaction(); Role r1 = new Role(); r1.setRame("數據錄入人員"); session.save(r1); Role r2 = new Role(); r2.setRame("商務主管"); session.save(r2); Role r3 = new Role(); r3.setRame("商務經理"); session.save(r3); Role r4 = new Role(); r4.setRame("項目會計"); session.save(r4); User u1 = new User(); u1.setUname("張三"); Set<Role> u1Roles = new HashSet<Role>(); u1Roles.add(r1); u1Roles.add(r2); u1.setRoles(u1Roles); session.save(u1); User u2 = new User(); u2.setUname("李四"); Set<Role> u2Roles = new HashSet<Role>(); u2Roles.add(r1); u2Roles.add(r2); u2Roles.add(r3); u2.setRoles(u2Roles); session.save(u2); User u3 = new User(); u3.setUname("王五"); Set<Role> u3Roles = new HashSet<Role>(); u3Roles.add(r3); u3Roles.add(r4); u3.setRoles(u3Roles); session.save(u3); session.getTransaction().commit(); }catch(Exception e){ e.printStackTrace(); session.getTransaction().rollback(); }finally{ HibernateUtils.closeSession(session); } } } |
執行結果:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
|
Hibernate: insert into role (rname, id) values (?, ?) Hibernate: insert into role (rname, id) values (?, ?) Hibernate: insert into role (rname, id) values (?, ?) Hibernate: insert into role (rname, id) values (?, ?) Hibernate: insert into user (uname, id) values (?, ?) Hibernate: insert into user (uname, id) values (?, ?) Hibernate: insert into user (uname, id) values (?, ?) Hibernate: insert into user_role (userid, roleid) values (?, ?) Hibernate: insert into user_role (userid, roleid) values (?, ?) Hibernate: insert into user_role (userid, roleid) values (?, ?) Hibernate: insert into user_role (userid, roleid) values (?, ?) Hibernate: insert into user_role (userid, roleid) values (?, ?) Hibernate: insert into user_role (userid, roleid) values (?, ?) Hibernate: insert into user_role (userid, roleid) values (?, ?) |
數據庫內容為:
user表:

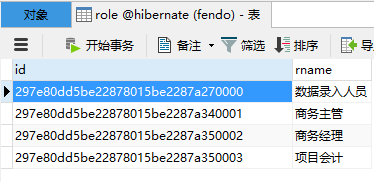

role表:
user_role表:
(2)注解版
Role類:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
|
package Hibernate_demo1.Demo16.Entity; import java.util.HashSet; import java.util.Set; import javax.persistence.CascadeType; import javax.persistence.Column; import javax.persistence.Entity; import javax.persistence.GeneratedValue; import javax.persistence.Id; import javax.persistence.ManyToMany; import javax.persistence.Table; import org.hibernate.annotations.GenericGenerator; @Entity@Table(name="role") public class Role { @Id @GenericGenerator(name="uuidGenerator", strategy="uuid") @GeneratedValue(generator="uuidGenerator") private String id; @Column(name="rname") private String rame; @ManyToMany(cascade=CascadeType.REFRESH,mappedBy="roles") private Set<User> users=new HashSet<User>(); public String getId() { return id; } public void setId(String id) { this.id = id; } public String getRame() { return rame; } public void setRame(String rame) { this.rame = rame; } public Set<User> getUsers() { return users; } public void setUsers(Set<User> users) { this.users = users; } } |
User類:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
|
package Hibernate_demo1.Demo16.Entity; import java.util.HashSet; import java.util.Set; import javax.persistence.CascadeType; import javax.persistence.Column; import javax.persistence.Entity; import javax.persistence.GeneratedValue; import javax.persistence.Id; import javax.persistence.JoinTable; import javax.persistence.ManyToMany; import javax.persistence.Table; import javax.persistence.JoinColumn; import org.hibernate.annotations.GenericGenerator; @Entity@Table(name="user") public class User { @Id @GenericGenerator(name="uuidGenerator", strategy="uuid") @GeneratedValue(generator="uuidGenerator") private String id; @Column(name="uname") private String uname; /* * @ManyToMany表示多對多關聯，對于這種關聯極少數情況會使用級聯刪除，我這里設置的是級聯刷新； * 因為有中間表的存在這里使用@JoinTable來設置關聯表后面的name配置的是關聯表的名稱 * inverseJoinColumn配置的是關系被維護一方主鍵對應的中間表字段 * joinColumn配置的是關系維護方主鍵對應的中間表字段。 */ @ManyToMany(cascade=CascadeType.REFRESH) @JoinTable(name="user_role",inverseJoinColumns=@JoinColumn(name="roleid"),joinColumns=@JoinColumn(name="userid")) private Set<Role> roles=new HashSet<Role>(); public String getId() { return id; } public void setId(String id) { this.id = id; } public String getUname() { return uname; } public void setUname(String uname) { this.uname = uname; } public Set<Role> getRoles() { return roles; } public void setRoles(Set<Role> roles) { this.roles = roles; } } |
測試類:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
|
package Hibernate_demo1.Demo16; import java.util.HashSet; import java.util.Set; import org.hibernate.Session; import org.hibernate.SessionFactory; import org.hibernate.Transaction; import org.hibernate.cfg.Configuration; import Hibernate_demo1.Demo16.Entity.Role; import Hibernate_demo1.Demo16.Entity.User; public class Test { public static void main(String[] args) { SessionFactory sessionFactory = new Configuration().configure().buildSessionFactory(); Session session = sessionFactory.getCurrentSession(); Transaction tx = session.beginTransaction(); //創建兩個用戶 User us1=new User(); us1.setUname("小明"); User us2=new User(); us2.setUname("小黑"); //創建用戶集合 Set<User> su=new HashSet<User>(); su.add(us1); su.add(us2); //創建兩個角色 Role ro1=new Role(); ro1.setRame("程序員"); ro1.setUsers(su); Role ro2=new Role(); ro2.setRame("技術經理"); ro2.setUsers(su); //創建角色集合 Set<Role> sr=new HashSet<Role>(); sr.add(ro1); sr.add(ro2); //往用戶添加角色集合 us1.setRoles(sr); us2.setRoles(sr); //保存用戶和角色 session.save(us1); session.save(us2); session.save(ro1); session.save(ro2); tx.commit(); session.close(); } } |
執行結果如下:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
|
Hibernate: insert into user (uname, id) values (?, ?) Hibernate: insert into user (uname, id) values (?, ?) Hibernate: insert into role (rname, id) values (?, ?) Hibernate: insert into role (rname, id) values (?, ?) Hibernate: insert into user_role (userid, roleid) values (?, ?) Hibernate: insert into user_role (userid, roleid) values (?, ?) Hibernate: insert into user_role (userid, roleid) values (?, ?) Hibernate: insert into user_role (userid, roleid) values (?, ?) |
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
