環境
|
1
2
3
|
pip install opencv-python==3.4.2.16 pip install opencv-contrib-python==3.4.2.16 |
理論
克里斯·哈里斯（Chris Harris）和邁克·史蒂芬斯（Mike Stephens）在1988年的論文《組合式拐角和邊緣檢測器》中做了一次嘗試找到這些拐角的嘗試，所以現在將其稱為哈里斯拐角檢測器。
函數：cv2.cornerHarris（），cv2.cornerSubPix（）
示例代碼
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
import cv2import numpy as np filename = 'molecule.png'img = cv2.imread(filename)gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY) gray = np.float32(gray)dst = cv2.cornerHarris(gray,2,3,0.04) #result is dilated for marking the corners, not importantdst = cv2.dilate(dst,None) # Threshold for an optimal value, it may vary depending on the image.img[dst>0.01*dst.max()]=[0,0,255] cv2.imshow('dst',img)if cv2.waitKey(0) & 0xff == 27: cv2.destroyAllWindows() |
原圖

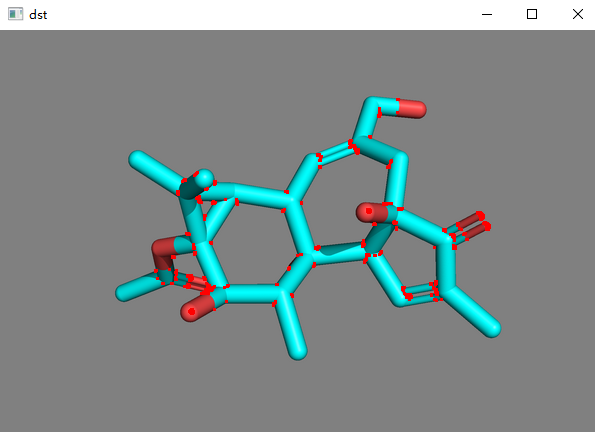

輸出圖
SubPixel精度的角落
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
|
import cv2import numpy as np filename = 'molecule.png'img = cv2.imread(filename)gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY) # find Harris cornersgray = np.float32(gray)dst = cv2.cornerHarris(gray,2,3,0.04)dst = cv2.dilate(dst,None)ret, dst = cv2.threshold(dst,0.01*dst.max(),255,0)dst = np.uint8(dst) # find centroidsret, labels, stats, centroids = cv2.connectedComponentsWithStats(dst) # define the criteria to stop and refine the cornerscriteria = (cv2.TERM_CRITERIA_EPS + cv2.TERM_CRITERIA_MAX_ITER, 100, 0.001)corners = cv2.cornerSubPix(gray,np.float32(centroids),(5,5),(-1,-1),criteria) # Now draw themres = np.hstack((centroids,corners))res = np.int0(res)img[res[:,1],res[:,0]]=[0,0,255]img[res[:,3],res[:,2]] = [0,255,0] cv2.imwrite('subpixel5.png',img) |
輸出圖
參考
https://opencv-python-tutroals.readthedocs.io/en/latest/py_tutorials/py_feature2d/py_features_harris/py_features_harris.html#harris-corners
