Spring Boot 集成MyBatis和Pagehelper分頁插件

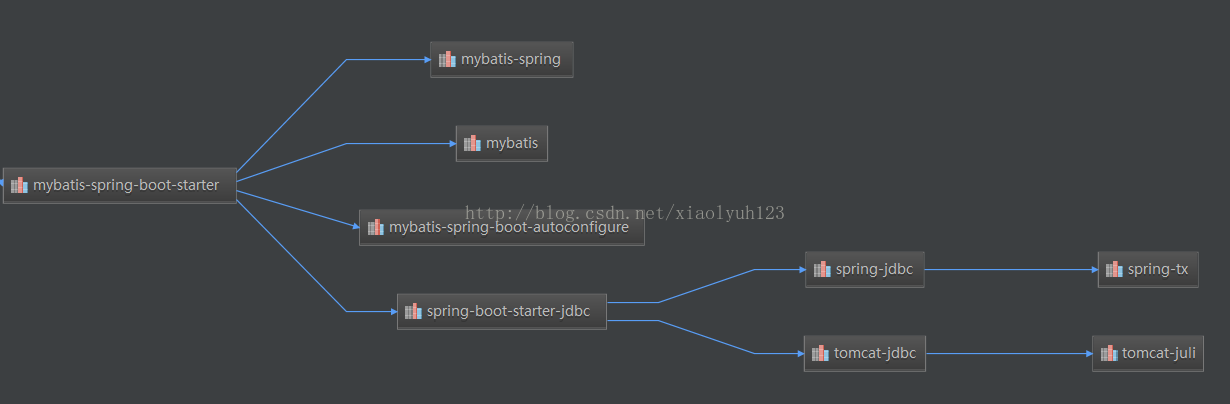

mybatis-spring-boot-starter依賴樹如下：
pom配置
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
|
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.xiaolyuh</groupId> <artifactId>spring-boot-student-mybatis</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>jar</packaging> <name>spring-boot-student-mybatis</name> <!-- 添加Spring Boot的父類依賴，這樣當前項目就是Spring Boot項目了。 spring-boot-starter-parent是一個特殊的starter，他用來 提供相關的maven默認依賴， 使用它之后，常用的依賴可以省去version標簽 --> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>1.5.3.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> </dependency> <dependency> <groupId>org.mybatis.spring.boot</groupId> <artifactId>mybatis-spring-boot-starter</artifactId> <version>1.3.0</version> </dependency> <!--pagehelper --> <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper-spring-boot-starter</artifactId> <version>1.1.1</version> </dependency> <dependency> <groupId>com.alibaba</groupId> <artifactId>fastjson</artifactId> <version>1.2.31</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build></project> |
application.properties配置
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
|
server.port=80# 數據源配置spring.datasource.url=jdbc:mysql://localhost:3306/ssb_testspring.datasource.driver-class-name=com.mysql.jdbc.Driverspring.datasource.username=rootspring.datasource.password=root#連接池配置#spring.datasource.type=org.apache.commons.dbcp2.BasicDataSource#mybatis#entity掃描的包名mybatis.type-aliases-package=com.xiaolyuh.domain.model#Mapper.xml所在的位置mybatis.mapper-locations=classpath*:/mybaits/*Mapper.xml#pagehelper分頁插件配置pagehelper.helperDialect=mysqlpagehelper.reasonable=truepagehelper.supportMethodsArguments=truepagehelper.params=count=countSql#日志配置logging.level.com.xiaolyuh=debuglogging.level.org.springframework.web=debuglogging.level.org.springframework.transaction=debuglogging.level.org.mybatis=debugdebug=false |
除了上面常見的兩項配置，還有：
|
1
2
3
4
|
mybatis.config-location=mybatis-config.xml配置文件的路徑mybatis.type-handlers-package=掃描typeHandlers的包mybatis.check-config-location=檢查配置文件是否存在mybatis.executor-type=設置執行模式（SIMPLE, REUSE, BATCH），默認為SIMPLE |
Mapping XML文件
在resources文件夾下創建mybaits/PersonMapper.xml文件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
|
<?xml version="1.0" encoding="UTF-8" ?><!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" ><mapper namespace="com.xiaolyuh.domain.mapper.PersonMapper" > <resultMap id="BaseResultMap" type="com.xiaolyuh.domain.model.Person" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> <id column="id" property="id" jdbcType="BIGINT" /> <result column="name" property="name" jdbcType="VARCHAR" /> <result column="age" property="age" jdbcType="INTEGER" /> <result column="address" property="address" jdbcType="VARCHAR" /> </resultMap> <sql id="Base_Column_List" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> id, name, age, address </sql> <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Long" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> select <include refid="Base_Column_List" /> from person where id = #{id,jdbcType=BIGINT} </select> <delete id="deleteByPrimaryKey" parameterType="java.lang.Long" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> delete from person where id = #{id,jdbcType=BIGINT} </delete> <insert id="insert" parameterType="com.xiaolyuh.domain.model.Person" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> <selectKey resultType="java.lang.Long" keyProperty="id" order="AFTER" > SELECT LAST_INSERT_ID() </selectKey> insert into person (name, age, address ) values (#{name,jdbcType=VARCHAR}, #{age,jdbcType=INTEGER}, #{address,jdbcType=VARCHAR} ) </insert> <insert id="insertSelective" parameterType="com.xiaolyuh.domain.model.Person" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> <selectKey resultType="java.lang.Long" keyProperty="id" order="AFTER" > SELECT LAST_INSERT_ID() </selectKey> insert into person <trim prefix="(" suffix=")" suffixOverrides="," > <if test="name != null" > name, </if> <if test="age != null" > age, </if> <if test="address != null" > address, </if> </trim> <trim prefix="values (" suffix=")" suffixOverrides="," > <if test="name != null" > #{name,jdbcType=VARCHAR}, </if> <if test="age != null" > #{age,jdbcType=INTEGER}, </if> <if test="address != null" > #{address,jdbcType=VARCHAR}, </if> </trim> </insert> <update id="updateByPrimaryKeySelective" parameterType="com.xiaolyuh.domain.model.Person" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> update person <set > <if test="name != null" > name = #{name,jdbcType=VARCHAR}, </if> <if test="age != null" > age = #{age,jdbcType=INTEGER}, </if> <if test="address != null" > address = #{address,jdbcType=VARCHAR}, </if> </set> where id = #{id,jdbcType=BIGINT} </update> <update id="updateByPrimaryKey" parameterType="com.xiaolyuh.domain.model.Person" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> update person set name = #{name,jdbcType=VARCHAR}, age = #{age,jdbcType=INTEGER}, address = #{address,jdbcType=VARCHAR} where id = #{id,jdbcType=BIGINT} </update> <select id="findAll" resultMap="BaseResultMap"> select <include refid="Base_Column_List" /> from person </select> <select id="findByPage" resultMap="BaseResultMap"> select <include refid="Base_Column_List" /> from person </select></mapper> |
DAO層Mapper類
在Mapper接口上需要加上@Mapper注解，@Mapper注解聲明成mybatis Dao層的Bean。也可以在配置類上使用@MapperScan("com.xiaolyuh.domain.mapper")注解聲明。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
|
package com.xiaolyuh.domain.mapper;import com.github.pagehelper.Page;import com.xiaolyuh.domain.model.Person;import org.apache.ibatis.annotations.Mapper;import java.util.List;@Mapper//聲明成mybatis Dao層的Bean，也可以在配置類上使用@MapperScan("com.xiaolyuh.domain.mapper")注解聲明public interface PersonMapper { int deleteByPrimaryKey(Long id); int insert(Person record); int insertSelective(Person record); Person selectByPrimaryKey(Long id); int updateByPrimaryKeySelective(Person record); int updateByPrimaryKey(Person record); /** * 獲取所有數據 * @return */ List<Person> findAll(); /** * 分頁查詢數據 * @return */ Page<Person> findByPage();} |
實體類
?
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
|
package com.xiaolyuh.domain.model;public class Person { private Long id; /** * 名稱 */ private String name; /** * 年齡 */ private Integer age; /** * 地址 */ private String address; public Long getId() { return id; } public void setId(Long id) { this.id = id; } public String getName() { return name; } public void setName(String name) { this.name = name; } public Integer getAge() { return age; } public void setAge(Integer age) { this.age = age; } public String getAddress() { return address; } public void setAddress(String address) { this.address = address; }} |
Service層
接口
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
|
package com.xiaolyuh.service;import com.github.pagehelper.Page;import com.xiaolyuh.domain.model.Person;import java.util.List;/** * Created by yuhao.wang on 2017/6/19. */public interface PersonService { List<Person> findAll(); /** * 分頁查詢 * @param pageNo 頁號 * @param pageSize 每頁顯示記錄數 * @return */ Page<Person> findByPage(int pageNo, int pageSize); void insert(Person person);} |
實現類
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
|
package com.xiaolyuh.service.impl;import com.github.pagehelper.Page;import com.github.pagehelper.PageHelper;import com.xiaolyuh.domain.mapper.PersonMapper;import com.xiaolyuh.domain.model.Person;import com.xiaolyuh.service.PersonService;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service;import org.springframework.transaction.annotation.Transactional;import java.util.List;/** * Created by yuhao.wang on 2017/6/19. */@Service@Transactional(readOnly = true)public class PersonServiceImpl implements PersonService { @Autowired private PersonMapper personMapper; @Override public List<Person> findAll() { return personMapper.findAll(); } @Override public Page<Person> findByPage(int pageNo, int pageSize) { PageHelper.startPage(pageNo, pageSize); return personMapper.findByPage(); } @Override @Transactional public void insert(Person person) { personMapper.insert(person); }} |
分頁的包裝類PageInfo
需要把Page包裝成PageInfo對象才能序列化。該插件也默認實現了一個PageInfo
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
|
package com.xiaolyuh.page;import java.io.Serializable;import java.util.Collection;import java.util.List;import com.github.pagehelper.Page;/** * 對Page<E>結果進行包裝 * <p/> * 新增分頁的多項屬性，主要參考:http://bbs.csdn.net/topics/360010907 * * @author liuzh/abel533/isea533 * @version 3.3.0 * @since 3.2.2 * 項目地址 : http://git.oschina.net/free/Mybatis_PageHelper */@SuppressWarnings({"rawtypes", "unchecked"})public class PageInfo<T> implements Serializable { private static final long serialVersionUID = 1L; //當前頁 private int pageNum; //每頁的數量 private int pageSize; //總記錄數 private long total; //總頁數 private int pages; //結果集 private List<T> list; //是否為第一頁 private boolean isFirstPage = false; //是否為最后一頁 private boolean isLastPage = false; public PageInfo() { } /** * 包裝Page對象 * * @param list */ public PageInfo(List<T> list) { if (list instanceof Page) { Page page = (Page) list; this.pageNum = page.getPageNum(); this.pageSize = page.getPageSize(); this.pages = page.getPages(); this.list = page; this.total = page.getTotal(); } else if (list instanceof Collection) { this.pageNum = 1; this.pageSize = list.size(); this.pages = 1; this.list = list; this.total = list.size(); } if (list instanceof Collection) { //判斷頁面邊界 judgePageBoudary(); } } /** * 判定頁面邊界 */ private void judgePageBoudary() { isFirstPage = pageNum == 1; isLastPage = pageNum == pages; } public int getPageNum() { return pageNum; } public void setPageNum(int pageNum) { this.pageNum = pageNum; } public int getPageSize() { return pageSize; } public void setPageSize(int pageSize) { this.pageSize = pageSize; } public long getTotal() { return total; } public void setTotal(long total) { this.total = total; } public int getPages() { return pages; } public void setPages(int pages) { this.pages = pages; } public List<T> getList() { return list; } public void setList(List<T> list) { this.list = list; } public boolean isIsFirstPage() { return isFirstPage; } public void setIsFirstPage(boolean isFirstPage) { this.isFirstPage = isFirstPage; } public boolean isIsLastPage() { return isLastPage; } public void setIsLastPage(boolean isLastPage) { this.isLastPage = isLastPage; } @Override public String toString() { final StringBuffer sb = new StringBuffer("PageInfo{"); sb.append("pageNum=").append(pageNum); sb.append(", pageSize=").append(pageSize); sb.append(", total=").append(total); sb.append(", pages=").append(pages); sb.append(", list=").append(list); sb.append(", isFirstPage=").append(isFirstPage); sb.append(", isLastPage=").append(isLastPage); sb.append(", navigatepageNums="); sb.append('}'); return sb.toString(); }} |
測試類
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
|
package com.xiaolyuh;import com.github.pagehelper.Page;import com.xiaolyuh.domain.model.Person;import com.xiaolyuh.page.PageInfo;import com.xiaolyuh.service.PersonService;import org.junit.Assert;import org.junit.Before;import org.junit.Test;import org.junit.runner.RunWith;import com.alibaba.fastjson.JSON;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.boot.test.context.SpringBootTest;import org.springframework.test.context.junit4.SpringRunner;import java.util.List;@RunWith(SpringRunner.class)@SpringBootTestpublic class PersonMapperTests { private Logger logger = LoggerFactory.getLogger(PersonMapperTests.class); @Autowired private PersonService personService; @Before public void testInsert() { Person person = new Person(); person.setName("測試"); person.setAddress("address"); person.setAge(10); personService.insert(person); Assert.assertNotNull(person.getId()); logger.debug(JSON.toJSONString(person)); } @Test public void testFindAll() { List<Person> persons = personService.findAll(); Assert.assertNotNull(persons); logger.debug(JSON.toJSONString(persons)); } @Test public void testFindByPage() { Page<Person> persons = personService.findByPage(1, 2); // 需要把Page包裝成PageInfo對象才能序列化。該插件也默認實現了一個PageInfo PageInfo<Person> pageInfo = new PageInfo<>(persons); Assert.assertNotNull(persons); logger.debug(pageInfo.toString()); logger.debug(JSON.toJSONString(pageInfo)); } @Test public void testCacheByPage() { long begin = System.currentTimeMillis(); List<Person> persons = personService.findAll(); long ing = System.currentTimeMillis(); personService.findAll(); long end = System.currentTimeMillis(); logger.debug("第一次請求時間：" + (ing - begin) + "ms"); logger.debug("第二次請求時間:" + (end - ing) + "ms"); Assert.assertNotNull(persons); logger.debug(persons.toString()); logger.debug(JSON.toJSONString(persons)); }} |
源碼
https://github.com/wyh-spring-ecosystem-student/spring-boot-student/tree/releases
到此這篇關于Spring Boot+Mybatis+Pagehelper分頁實現的文章就介紹到這了,更多相關Spring Boot+Mybatis+Pagehelper分頁內容請搜索服務器之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持服務器之家！
原文鏈接：https://blog.csdn.net/xiaolyuh123/article/details/73506189
