約定電腦都安裝了eclipse，且已配置好maven以及eclipse插件。
1.eclipse
2.maven
3.eclipse 需要安裝maven插件。url:maven - http://download.eclipse.org/technology/m2e/releases 。

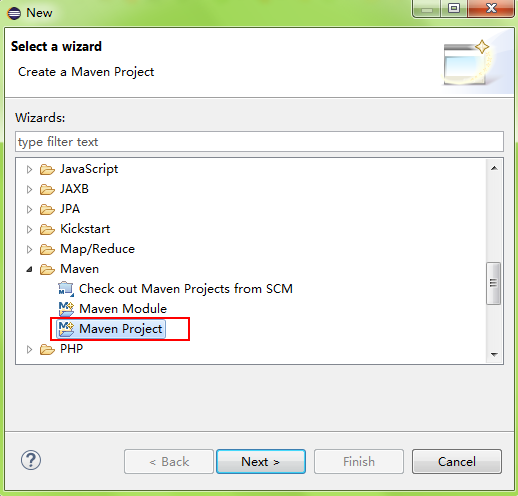

1、新建一個maven project

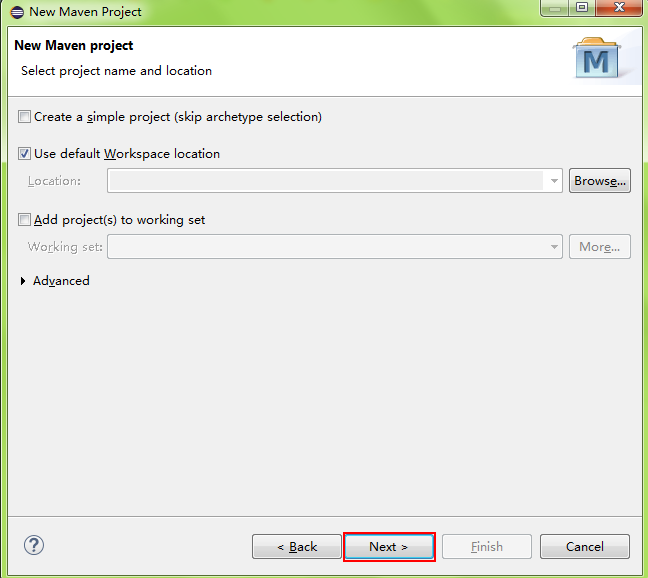

2、選擇工作空間

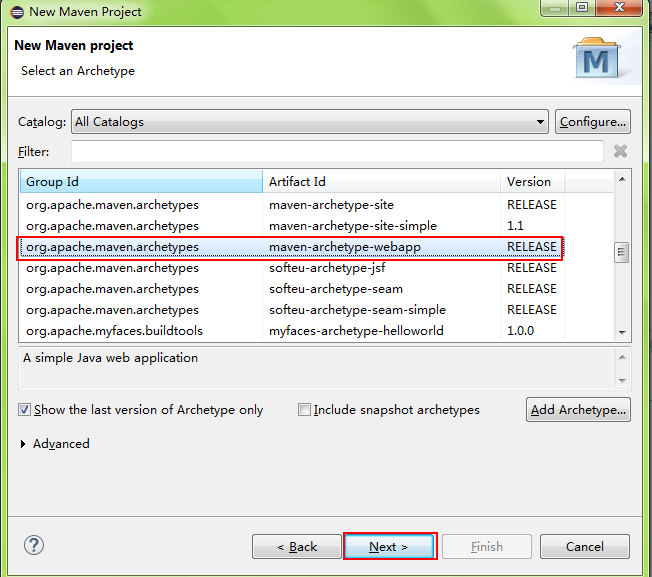

3、搭建web工程，我們選擇maven-archetype-webapp類型

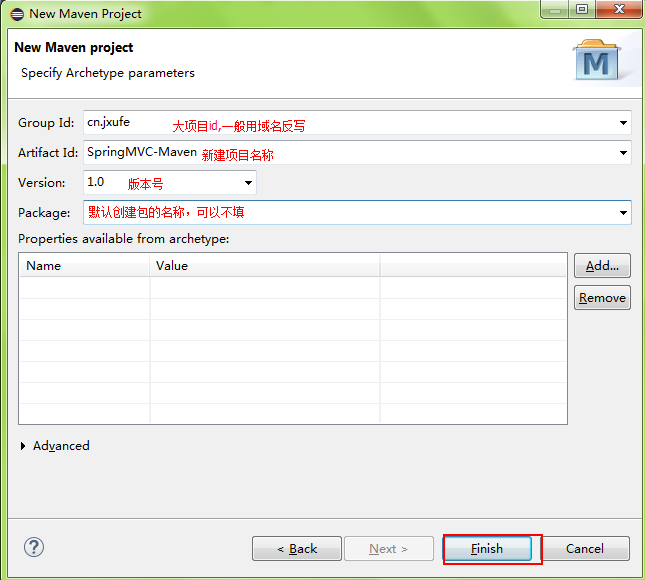

4、填寫項目參數，如圖
5、以上步驟完成時的工程結構目錄

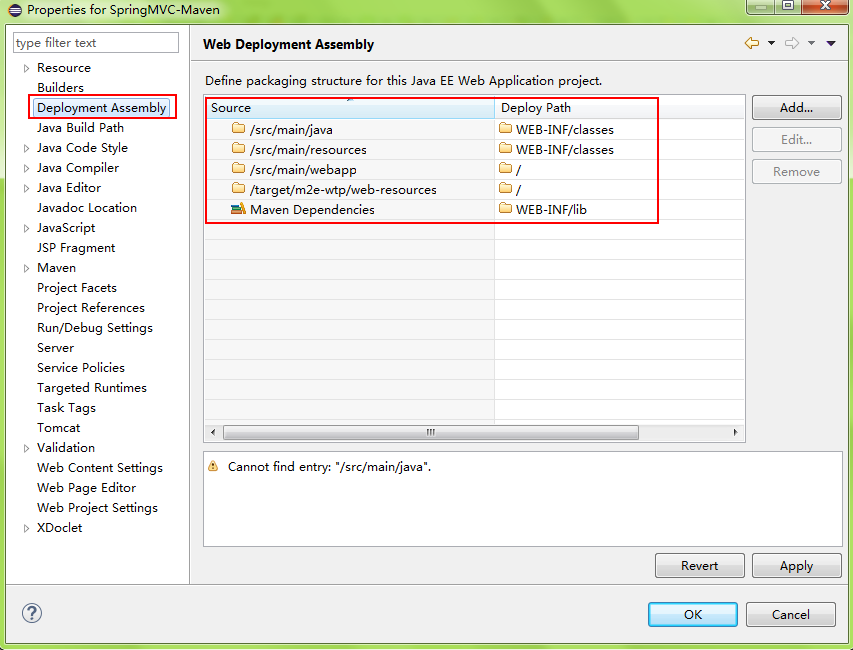

6、可以查看或修改發布目錄

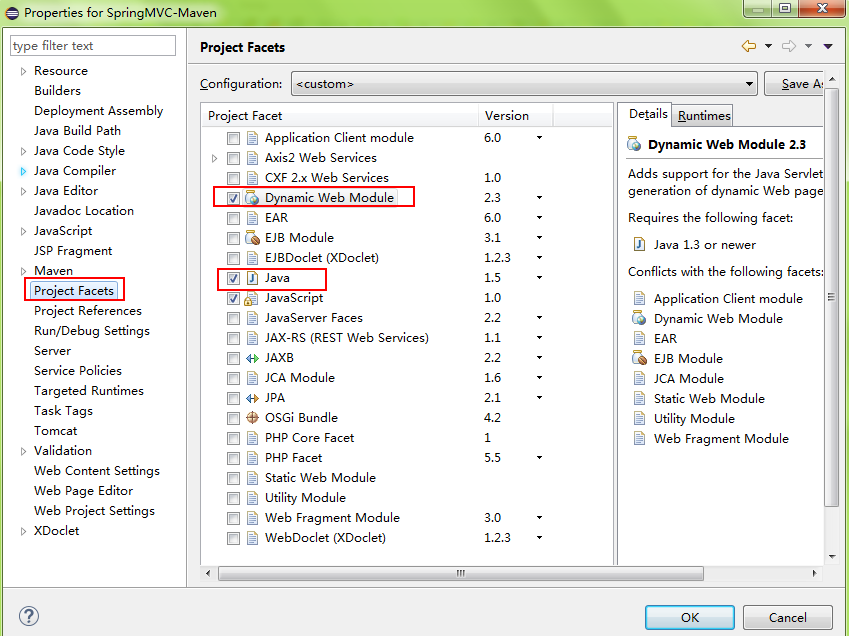

7、確保勾選上dynamic web module和java
8、完成以上步驟，我們的工程就是一個web項目了，接著我們賦予工程的springmvc特性，配置web.xml，使其具有springmvc特性，主要配置兩處，一個是contextloaderlistener，一個是dispatcherservlet。代碼如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
|
<?xml version="1.0" encoding="utf-8"?><web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance" xsi:schemalocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"> <!-- 配置web.xml，使其具有springmvc特性，主要配置兩處，一個是contextloaderlistener，一個是dispatcherservlet --> <context-param> <param-name>contextconfiglocation</param-name> <param-value>classpath*:applicationcontext.xml</param-value> </context-param> <!-- 配置contextloaderlistener表示，該工程要以spring的方式啟動。啟動時會默認在/web-inf目錄下查找applicationcontext.xml作為spring容器的配置文件，該文件里可以初始化一些bean --> <listener> <listener-class>org.springframework.web.context.contextloaderlistener</listener-class> </listener> <!-- 字符集過濾器 --> <filter> <filter-name>encodingfilter</filter-name> <filter-class>org.springframework.web.filter.characterencodingfilter</filter-class> <init-param> <param-name>encoding</param-name> <param-value>utf-8</param-value> </init-param> </filter> <filter-mapping> <filter-name>encodingfilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <!-- spring mvc 配置 --> <!-- 配置dispatcherservlet表示，該工程將采用springmvc的方式。啟動時也會默認在/web-inf目錄下查找xxx-servlet.xml作為配置文件， xxx就是dispatcherservlet的名字，該文件中將配置兩項重要的mvc特性：handlermapping,負責為dispatcherservlet這個前端控制器的請求查找controller； viewresolver,負責為dispatcherservlet查找modelandview的視圖解析器。 此處使用指定的配置文件spring-mvc.xml --> <servlet> <servlet-name>contacts</servlet-name> <servlet-class>org.springframework.web.servlet.dispatcherservlet</servlet-class> <init-param> <param-name>contextconfiglocation</param-name> <!--<param-value>/web-inf/classes/spring-mvc-servlet.xml</param-value>--> <param-value>classpath*:/spring-mvc.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>contacts</servlet-name> <url-pattern>*.htm</url-pattern> </servlet-mapping> <welcome-file-list> <welcome-file>index.jsp</welcome-file> </welcome-file-list> </web-app> |
9、配置contextloaderlistener表示，該工程要以spring的方式啟動。啟動時會默認在/web-inf目錄下查找 applicationcontext.xml作為spring容器的配置文件，這里可以初始化一些bean，如datasource等。代碼如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
|
<?xml version="1.0" encoding="utf-8" ?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx" xsi:schemalocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.1.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.1.xsd"> <!-- bean definitions here --> <context:component-scan base-package="cn.jxufe" /> <!-- 配置讀取外部配置文件 --> <context:property-placeholder location="classpath:jdbc.properties" /> <bean id="datasource" class="org.apache.commons.dbcp.basicdatasource" destroy-method="close" p:driverclassname="${jdbc.driverclassname}" p:url="${jdbc.url}" p:username="${jdbc.username}" p:password="${jdbc.password}" /> <context:annotation-config /> <!-- 此行語句使得resource autowired 等四個注解可以使用 --> <!-- 實例化jdbctemplate,同時注入數據源 --> <bean id="jdbctemplate" class="org.springframework.jdbc.core.jdbctemplate" p:datasource-ref="datasource" /> <!-- 配置事務管理器 --> <bean id="txmanager" class="org.springframework.jdbc.datasource.datasourcetransactionmanager"> <property name="datasource" ref="datasource" /> </bean> <!-- 事務掃描開始(開啟@tranctional) --> <tx:annotation-driven transaction-manager="txmanager" /></beans> |
10、配置dispatcherservlet表示，該工程將采用springmvc的方式。啟動時也會默認在/web-inf目錄下查找xxx- servlet.xml作為配置文件，xxx就是dispatcherservlet的名字，該文件中將配置兩項重要的mvc特性：viewresolver,負責為dispatcherservlet查找modelandview的視圖解析器。這里我們使用指定的xml配置文件spring-mvc.xml，代碼如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
|
<?xml version="1.0" encoding="utf-8"?><beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"xmlns:p="http://www.springframework.org/schema/p"xmlns:context="http://www.springframework.org/schema/context"xmlns:mvc="http://www.springframework.org/schema/mvc"xsi:schemalocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd"default-lazy-init="true"> <!-- 啟動事務添加配置 --> <context:component-scan base-package="cn.jxufe"> <!-- 排除掃描service標簽 --> <context:exclude-filter type="annotation" expression="org.springframework.stereotype.service"/> </context:component-scan> <bean class="org.springframework.web.servlet.mvc.annotation.annotationmethodhandleradapter"> <!-- 注冊jason轉換器 --> <property name="messageconverters"> <list> <ref bean="mappingjacksonhttpmessageconverter"/> <ref bean="utf8stringhttpmessageconverter"/> </list> </property> </bean> <bean id="mappingjacksonhttpmessageconverter" class="org.springframework.http.converter.json.mappingjacksonhttpmessageconverter"> <property name="supportedmediatypes"> <list> <value>text/plain;charset=utf-8</value> <value>text/html;charset=utf-8</value> <value>application/json;charset=utf-8</value> </list> </property> </bean> <bean id="utf8stringhttpmessageconverter" class="org.springframework.http.converter.stringhttpmessageconverter"> <property name="supportedmediatypes"> <list> <value>text/plain;charset=utf-8</value> <value>text/html;charset=utf-8</value> <value>application/json;charset=utf-8</value> </list> </property> </bean> <bean id="viewresolver" class="org.springframework.web.servlet.view.internalresourceviewresolver"> <property name="viewclass" value="org.springframework.web.servlet.view.jstlview"/> <property name="prefix" value="/web-inf/pages/"/> <property name="suffix" value=".jsp"/> </bean> <bean class="org.springframework.web.servlet.i18n.localechangeinterceptor"></bean> <!-- 當配置了<mvc:annotation-driven/>后，會自動加載org.springframework.web.servlet.mvc.annotation.defaultannotationhandlermapping和org.springframework.web.servlet.mvc.annotation.annotationmethodhandleradapter，所以如果顯示的配置則需去掉配置<mvc:annotation-driven/> --> <!--<mvc:annotation-driven/>--></beans> |
11、配置pom.xml文件，讓maven自動配置jar包，代碼如下
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
|
<project xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance" xsi:schemalocation="http://maven.apache.org/pom/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd"> <modelversion>4.0.0</modelversion> <groupid>cn.jxufe</groupid> <artifactid>springmvc-maven</artifactid> <packaging>war</packaging> <version>1.0</version> <name>springmvc-maven maven webapp</name> <url>http://maven.apache.org</url> <properties> <project.build.sourceencoding>utf-8</project.build.sourceencoding> <spring.version>3.1.2.release</spring.version> </properties> <dependencies> <dependency> <groupid>junit</groupid> <artifactid>junit</artifactid> <version>3.8.1</version> <scope>test</scope> </dependency> <!-- spring begin --> <dependency> <groupid>org.springframework</groupid> <artifactid>spring-webmvc</artifactid> <version>${spring.version}</version> </dependency> <dependency> <groupid>org.springframework</groupid> <artifactid>spring-jdbc</artifactid> <version>${spring.version}</version> </dependency> <dependency> <groupid>org.springframework</groupid> <artifactid>spring-context</artifactid> <version>${spring.version}</version> </dependency> <dependency> <groupid>org.springframework</groupid> <artifactid>spring-aop</artifactid> <version>${spring.version}</version> </dependency> <dependency> <groupid>org.springframework</groupid> <artifactid>spring-core</artifactid> <version>${spring.version}</version> </dependency> <dependency> <groupid>org.springframework</groupid> <artifactid>spring-test</artifactid> <version>${spring.version}</version> </dependency> <!-- spring end --> <!-- web jar --> <dependency> <groupid>javax.servlet</groupid> <artifactid>javax.servlet-api</artifactid> <version>3.0.1</version> <scope>provided</scope> </dependency> <dependency> <groupid>javax.servlet</groupid> <artifactid>jstl</artifactid> <version>1.1.2</version> <scope>provided</scope> </dependency> <dependency> <groupid>javax.servlet.jsp</groupid> <artifactid>javax.servlet.jsp-api</artifactid> <version>2.3.1</version> <scope>provided</scope> </dependency> <!-- jackson jar --> <dependency> <groupid>org.codehaus.jackson</groupid> <artifactid>jackson-jaxrs</artifactid> <version>1.9.11</version> </dependency> <!-- commons jar --> <dependency> <groupid>org.apache.commons</groupid> <artifactid>commons-lang3</artifactid> <version>3.3.2</version> </dependency> <dependency> <groupid>commons-io</groupid> <artifactid>commons-io</artifactid> <version>2.4</version> </dependency> <dependency> <groupid>org.apache.commons</groupid> <artifactid>commons-collections4</artifactid> <version>4.0</version> </dependency> <dependency> <groupid>commons-logging</groupid> <artifactid>commons-logging</artifactid> <version>1.1.3</version> </dependency> <dependency> <groupid>commons-codec</groupid> <artifactid>commons-codec</artifactid> <version>1.8</version> </dependency> <dependency> <groupid>commons-beanutils</groupid> <artifactid>commons-beanutils</artifactid> <version>1.8.3</version> </dependency> <dependency> <groupid>commons-chain</groupid> <artifactid>commons-chain</artifactid> <version>1.2</version> </dependency> <dependency> <groupid>commons-fileupload</groupid> <artifactid>commons-fileupload</artifactid> <version>1.3.1</version> </dependency> <dependency> <groupid>org.apache.commons</groupid> <artifactid>commons-math3</artifactid> <version>3.3</version> </dependency> <dependency> <groupid>org.apache.commons</groupid> <artifactid>commons-pool2</artifactid> <version>2.2</version> </dependency> <dependency> <groupid>org.apache.commons</groupid> <artifactid>commons-digester3</artifactid> <version>3.2</version> </dependency> <dependency> <groupid>commons-net</groupid> <artifactid>commons-net</artifactid> <version>3.3</version> </dependency> <dependency> <groupid>commons-dbutils</groupid> <artifactid>commons-dbutils</artifactid> <version>1.5</version> </dependency> <dependency> <groupid>org.apache.commons</groupid> <artifactid>commons-email</artifactid> <version>1.3.3</version> </dependency> <dependency> <groupid>commons-dbcp</groupid> <artifactid>commons-dbcp</artifactid> <version>1.4</version> </dependency> <!-- jstl jar --> <dependency> <groupid>jstl</groupid> <artifactid>jstl</artifactid> <version>1.2</version> </dependency> <dependency> <groupid>taglibs</groupid> <artifactid>standard</artifactid> <version>1.1.2</version> </dependency> <!-- 日志相關 --> <dependency> <groupid>log4j</groupid> <artifactid>log4j</artifactid> <version>1.2.16</version> </dependency> <dependency> <groupid>org.slf4j</groupid> <artifactid>slf4j-api</artifactid> <version>1.7.5</version> </dependency> <!-- 驗證碼kaptcha --> <dependency> <groupid>com.google.code</groupid> <artifactid>kaptcha</artifactid> <version>2.3.0</version> </dependency> <!-- mysql --> <dependency> <groupid>mysql</groupid> <artifactid>mysql-connector-java</artifactid> <version>5.1.31</version> </dependency> </dependencies> <build> <finalname>springmvc-maven</finalname> </build></project> |

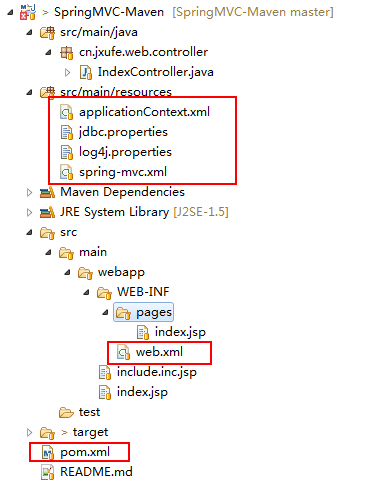

12、完成以上步驟后，可以繼續配置jdbc.properties、log4j.properties等文件。至此springmvc項目搭建完成，工程結構如下圖：
13、代碼我都會托管到gibhub上，有需要的朋友可以查看。github
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
