一、算法簡要
我們希望有這么一種函數：接受輸入然后預測出類別，這樣用于分類。這里，用到了數學中的sigmoid函數，sigmoid函數的具體表達式和函數圖象如下：
可以較為清楚的看到，當輸入的x小于0時，函數值<0.5，將分類預測為0；當輸入的x大于0時，函數值>0.5，將分類預測為1。

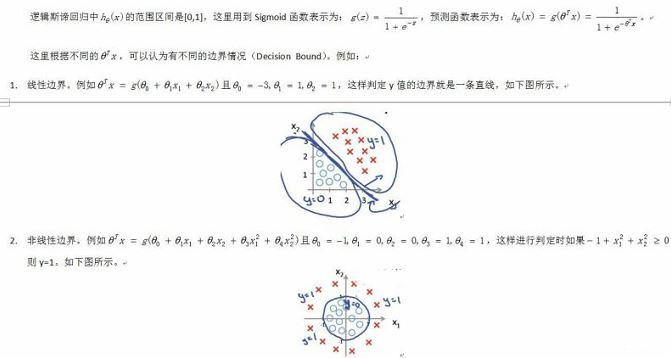

1.1 預測函數的表示

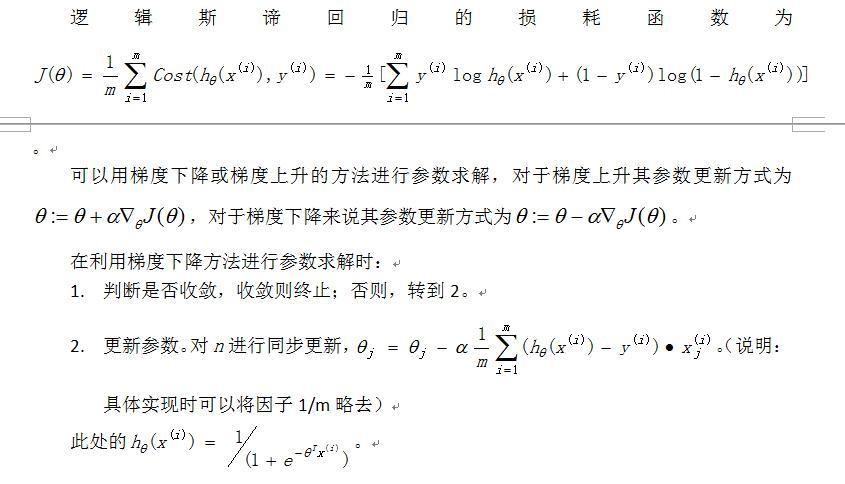

1.2參數的求解
二、代碼實現
函數sigmoid計算相應的函數值；gradAscent實現的batch-梯度上升，意思就是在每次迭代中所有數據集都考慮到了；而stoGradAscent0中，則是將數據集中的示例都比那里了一遍，復雜度大大降低；stoGradAscent1則是對隨機梯度上升的改進，具體變化是alpha每次變化的頻率是變化的，而且每次更新參數用到的示例都是隨機選取的。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
|
from numpy import *import matplotlib.pyplot as plt def loadDataSet(): dataMat = [] labelMat = [] fr = open('testSet.txt') for line in fr.readlines(): lineArr = line.strip('\n').split('\t') dataMat.append([1.0, float(lineArr[0]), float(lineArr[1])]) labelMat.append(int(lineArr[2])) fr.close() return dataMat, labelMat def sigmoid(inX): return 1.0/(1+exp(-inX)) def gradAscent(dataMatIn, classLabels): dataMatrix = mat(dataMatIn) labelMat = mat(classLabels).transpose() m,n=shape(dataMatrix) alpha = 0.001 maxCycles = 500 weights = ones((n,1)) errors=[] for k in range(maxCycles): h = sigmoid(dataMatrix*weights) error = labelMat - h errors.append(sum(error)) weights = weights + alpha*dataMatrix.transpose()*error return weights, errors def stoGradAscent0(dataMatIn, classLabels): m,n=shape(dataMatIn) alpha = 0.01 weights = ones(n) for i in range(m): h = sigmoid(sum(dataMatIn[i]*weights)) error = classLabels[i] - h weights = weights + alpha*error*dataMatIn[i] return weights def stoGradAscent1(dataMatrix, classLabels, numIter = 150): m,n=shape(dataMatrix) weights = ones(n) for j in range(numIter): dataIndex=range(m) for i in range(m): alpha= 4/(1.0+j+i)+0.01 randIndex = int(random.uniform(0,len(dataIndex))) h = sigmoid(sum(dataMatrix[randIndex]*weights)) error = classLabels[randIndex]-h weights=weights+alpha*error*dataMatrix[randIndex] del(dataIndex[randIndex]) return weights def plotError(errs): k = len(errs) x = range(1,k+1) plt.plot(x,errs,'g--') plt.show() def plotBestFit(wei): weights = wei.getA() dataMat, labelMat = loadDataSet() dataArr = array(dataMat) n = shape(dataArr)[0] xcord1=[] ycord1=[] xcord2=[] ycord2=[] for i in range(n): if int(labelMat[i])==1: xcord1.append(dataArr[i,1]) ycord1.append(dataArr[i,2]) else: xcord2.append(dataArr[i,1]) ycord2.append(dataArr[i,2]) fig = plt.figure() ax = fig.add_subplot(111) ax.scatter(xcord1, ycord1, s=30, c='red', marker='s') ax.scatter(xcord2, ycord2, s=30, c='green') x = arange(-3.0,3.0,0.1) y=(-weights[0]-weights[1]*x)/weights[2] ax.plot(x,y) plt.xlabel('x1') plt.ylabel('x2') plt.show() def classifyVector(inX, weights): prob = sigmoid(sum(inX*weights)) if prob>0.5: return 1.0 else: return 0def colicTest(ftr, fte, numIter): frTrain = open(ftr) frTest = open(fte) trainingSet=[] trainingLabels=[] for line in frTrain.readlines(): currLine = line.strip('\n').split('\t') lineArr=[] for i in range(21): lineArr.append(float(currLine[i])) trainingSet.append(lineArr) trainingLabels.append(float(currLine[21])) frTrain.close() trainWeights = stoGradAscent1(array(trainingSet),trainingLabels, numIter) errorCount = 0 numTestVec = 0.0 for line in frTest.readlines(): numTestVec += 1.0 currLine = line.strip('\n').split('\t') lineArr=[] for i in range(21): lineArr.append(float(currLine[i])) if int(classifyVector(array(lineArr), trainWeights))!=int(currLine[21]): errorCount += 1 frTest.close() errorRate = (float(errorCount))/numTestVec return errorRate def multiTest(ftr, fte, numT, numIter): errors=[] for k in range(numT): error = colicTest(ftr, fte, numIter) errors.append(error) print "There "+str(len(errors))+" test with "+str(numIter)+" interations in all!" for i in range(numT): print "The "+str(i+1)+"th"+" testError is:"+str(errors[i]) print "Average testError: ", float(sum(errors))/len(errors) ''''' data, labels = loadDataSet() weights0 = stoGradAscent0(array(data), labels) weights,errors = gradAscent(data, labels) weights1= stoGradAscent1(array(data), labels, 500) print weights plotBestFit(weights) print weights0 weights00 = [] for w in weights0: weights00.append([w]) plotBestFit(mat(weights00)) print weights1 weights11=[] for w in weights1: weights11.append([w]) plotBestFit(mat(weights11)) '''multiTest(r"horseColicTraining.txt",r"horseColicTest.txt",10,500) |
總結
以上就是本文關于機器學習經典算法-logistic回歸代碼詳解的全部內容，希望對大家有所幫助。如有不足之處，歡迎留言指出。感謝朋友們對本站的支持！
